S-PT LH (Pipe Threads)
- The S-PT LH is a hand tap for left hand tapered pipe threads and is used where it is necessary to shorten the fitting length for products such as parts for pipes.
Specification
Tapping Speeds depending on Materials
Segment：1G
|

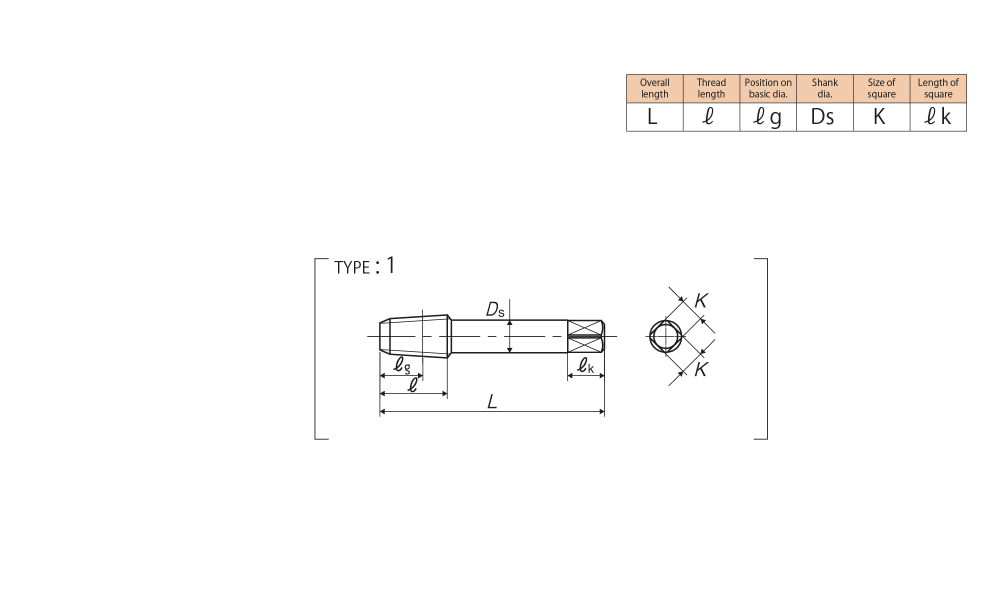

Size |
Class |
Code |
Chamfer |
Basic major dia (mm) |
L (mm) |
ℓ (mm) |
ℓg (mm) |
Ds (mm) |
K (mm) |
ℓk (mm) |
No. of flutes |
TYPE |
|
For Pipe Threads |
||||||||||||
|
PT 1/8-28 |
Ⅱ |
TSPT02K--L |
2.5P |
9.728 |
55 |
16.5 |
10.5 |
8 |
6 |
9 |
4 |
1 |
|
PT 1/4-19 |
Ⅱ |
TSPT04---L |
2.5P |
13.157 |
62 |
19.5 |
12.5 |
11 |
9 |
12 |
4 |
1 |
|
PT 3/8-19 |
Ⅱ |
TSPT06---L |
2.5P |
16.662 |
65 |
21 |
14 |
14 |
11 |
14 |
4 |
1 |
|
PT 1/2-14 |
Ⅱ |
TSPT08Q--L |
2.5P |
20.955 |
80 |
27 |
17 |
18 |
14 |
17 |
4 |
1 |
|
PT 3/4-14 |
Ⅱ |
TSPT12Q--L |
2.5P |
26.441 |
85 |
29 |
19 |
23 |
17 |
20 |
4 |
1 |
|
PT 1 -11 |
Ⅱ |
TSPT16U--L |
2.5P |
33.249 |
95 |
35 |
22 |
26 |
21 |
24 |
5 |
1 |
|
PT 1 1/4-11 |
Ⅱ |
TSPT20U--L |
2.5P |
41.910 |
105 |
37.5 |
24.5 |
32 |
26 |
30 |
5 |
1 |
|
PT 1 1/2-11 |
Ⅱ |
TSPT24U--L |
2.5P |
47.803 |
110 |
38.5 |
25.5 |
38 |
29 |
32 |
6 |
1 |
|
PT 2 -11 |
Ⅱ |
TSPT32U--L |
2.5P |
59.614 |
120 |
42.5 |
27.5 |
46 |
35 |
38 |
6 |
1 |
