SA | Shank Adjusters | YAMAWA
ราคาต่ำสุด
THB 0.00
ราคาปรกติ
THB 2,866.36
พร้อมส่ง
SKU
SA
Product Features

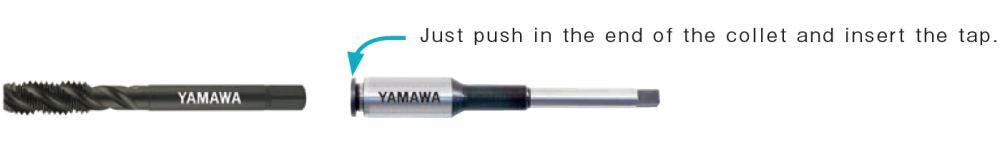

- I series tap (IHT / ISP / IPO) can be installed with one motion. The total length can be extended to 150mm. It is now possible to reach deeper into workpieces with a standard tap with obstructions.
- It can be easily used for hand-drilling or a drilling machine.
* It is not suitable for high-speed rotation or continuous processing.

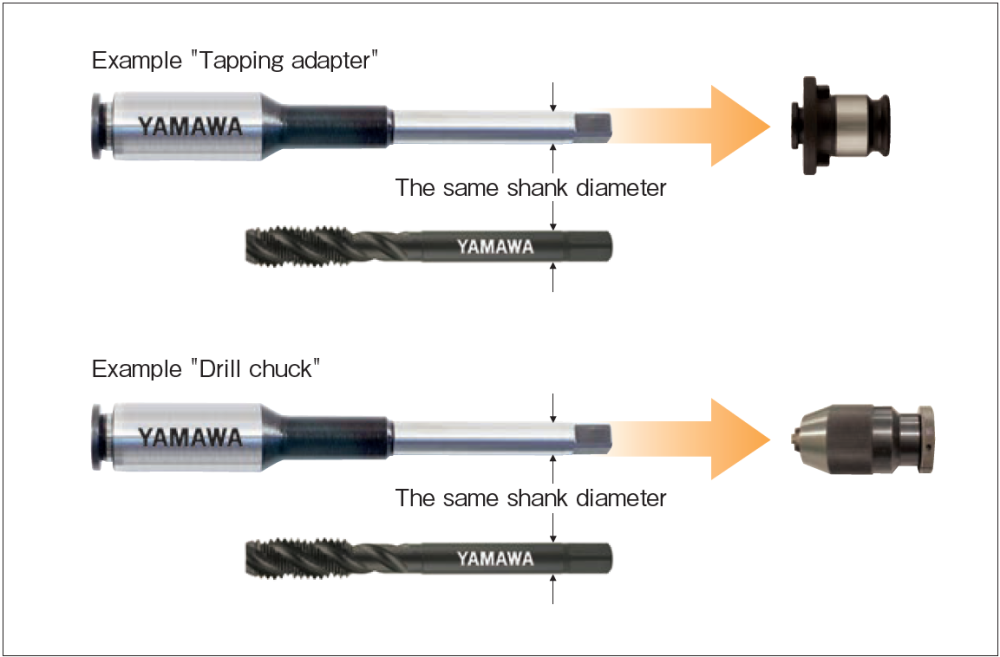

- The shank diameter of the shank adjuster is the same size as the shank diameter of the tap thus it can be installed in your tap holder.
* It can be attached to a drill chuck for drill machines.
Specification
Segment：5A
|
Size |
Code |
L (mm) |
D (mm) |
Ds (mm) |
ℓ (mm) |
ℓ1 (mm) |
K (mm) |
ℓk (mm) |
TYPE |
|
M3-150 |
SA3.0M |
150 |
11 |
4 |
127 |
45 |
3.2 |
6 |
1 |
|
M4-150 |
SA4.0M |
150 |
12 |
5 |
122 |
45 |
4 |
7 |
1 |
|
M5-150 |
SA5.0M |
150 |
12.5 |
5.5 |
114 |
45 |
4.5 |
7 |
1 |
|
M6-150 |
SA6.0M |
150 |
13 |
6 |
115 |
45 |
4.5 |
7 |
1 |
|
M8-150 |
SA8.0M |
150 |
13 |
6.2 |
108 |
45 |
5 |
8 |
2 |
|
M10-150 |
SA010M |
150 |
14 |
7 |
103 |
45 |
5.5 |
8 |
2 |
・By using SA, you can lengthen your I series taps and standard taps.
For ISP, refer to product page ①-63.
For IPO, refer to product page ③-33.
For IHT, refer to product page ④-51.
| แบรนด์สินค้า | YAMAWA |
|---|
