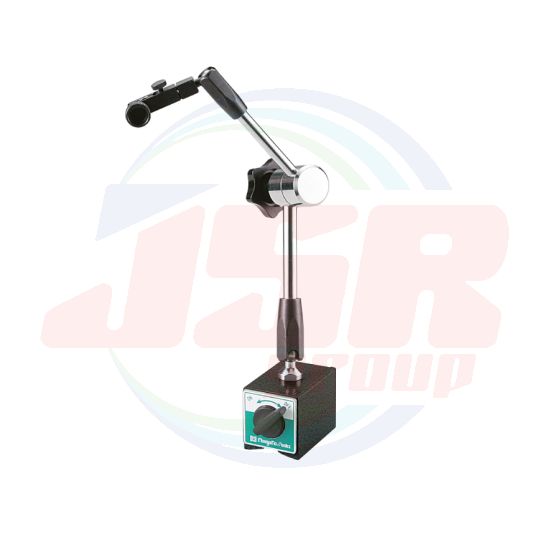

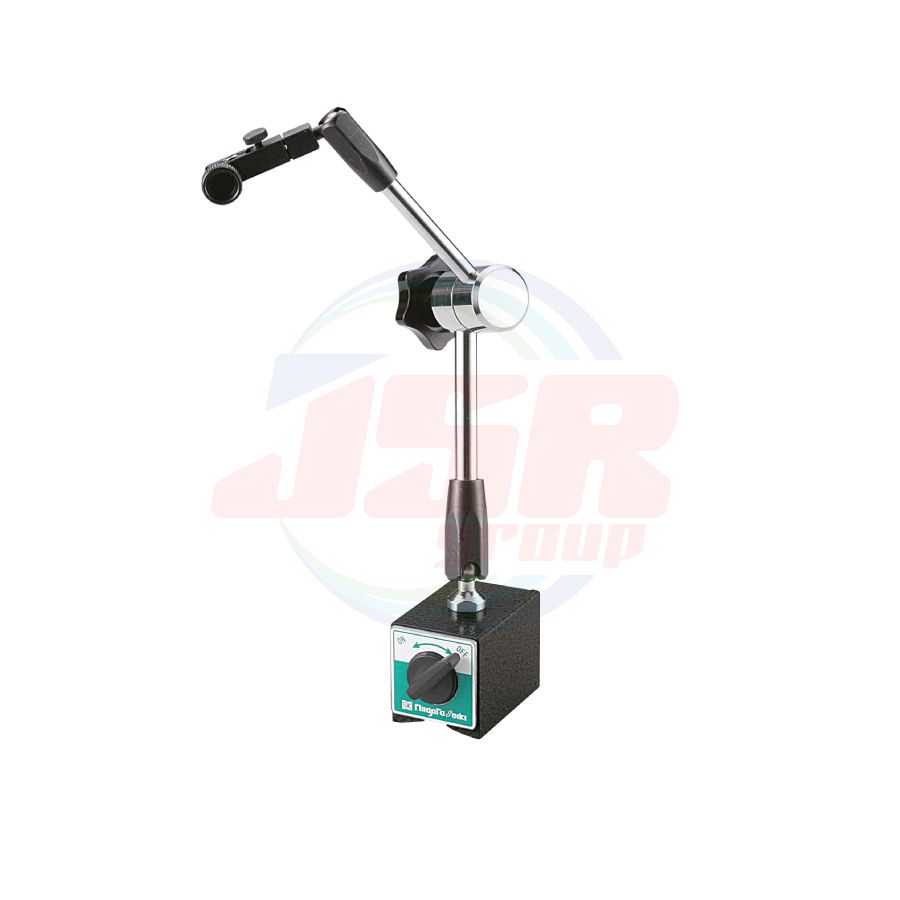

SB-100G (012875) | MAGNETIC BASE LOCK TYPE | SK NIIGATASEIKI
THB 0.00
สินค้าหมด
SKU
012875
USE
● Measurements that require a dial gauge or dial indicator to be held in fixed position
MATERIAL
● Body： Rolled steel for general structure
● Magnet： Ferrite
FEATURES
● Mechanical lock knob tightens all joints with a single operation
● Removable with ON/OFF magnet operation

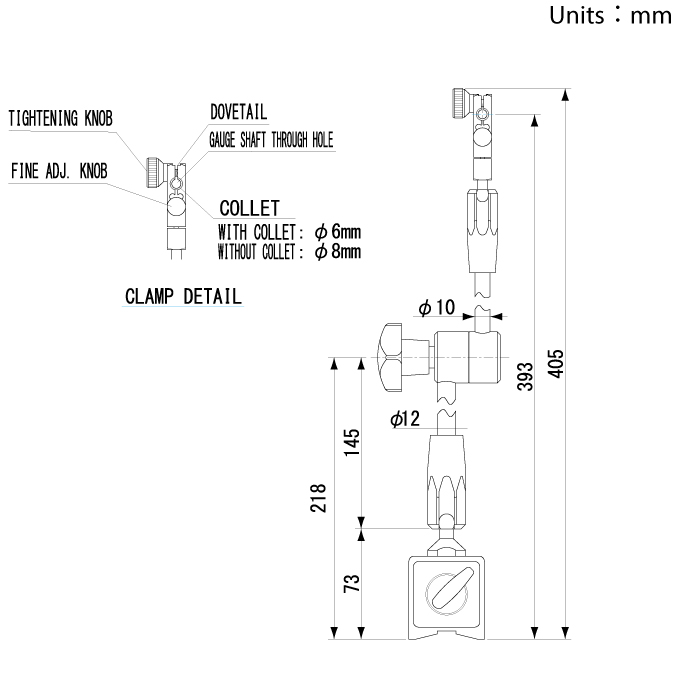

SPECIFICATIONS
● Magnetice adsorption： approx.1000N
● Stem holder： φ6mm・φ8mm
● With dovetail mount
● Main post screw： M8×P1.255
| Order No. | Model No. | Base Dimension （mm） |
Surface magnetic flux density （mT） |
Weight |
| 012875 | SB-100G | 50×75×55 | Max. 100 | 1.7kg |
| แบรนด์สินค้า | NIIGATA SEIKI (SK) |
|---|---|
| Order No. | 012875 (SB-100G) |
