SB-6B (012871) | MAGNETIC BASE FINE ADJUSTMENT TYPE | SK NIIGATASEIKI
THB 0.00
พร้อมส่ง
SKU
012871
USE
● Measurements that require a dial gauge or dial indicator to be held in fixed position
MATERIAL
● Body： Rolled steel for general structure
● Magnet： Ferrite
FEATURES
● Fine adjustment type（ 2mm adj. range）
● Removable with ON/OFF magnet operation
SPECIFICATIONS
● Magnetice adsorption： approx. 800N
● Stem holder： φ6mm・φ8mm

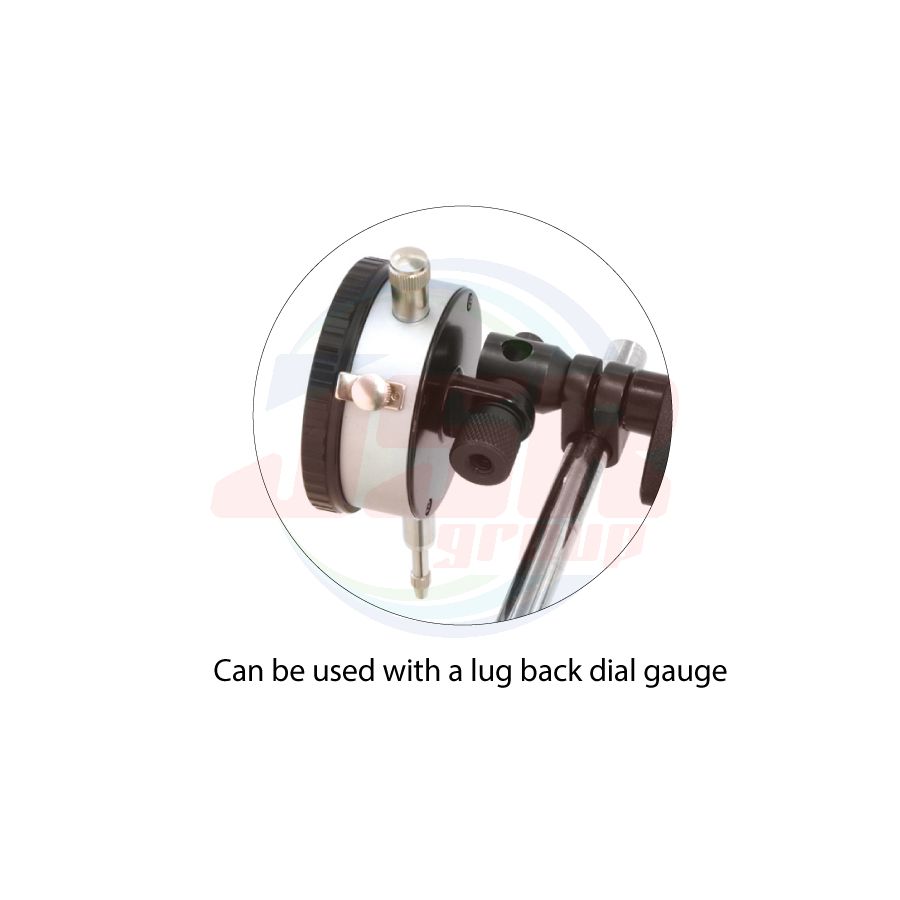

● Lug back holder： φ6.5mm・φ8mm
● Main post screw： M8×P1.25
| Order No. | Model No. | Base Dimension （mm） |
Surface magnetic flux density （mT） |
Weight |
| 012871 | SB-6B | 50×60×55 | Max. 100 | 1.5kg |
| แบรนด์สินค้า | NIIGATA SEIKI (SK) |
|---|---|
| Order No. | 012871 (SB-6B) |
