SB-6C (012870) | MAGNETIC BASE STANDARD TYPE | SK NIIGATASEIKI
THB 0.00
พร้อมส่ง
SKU
012870
USE

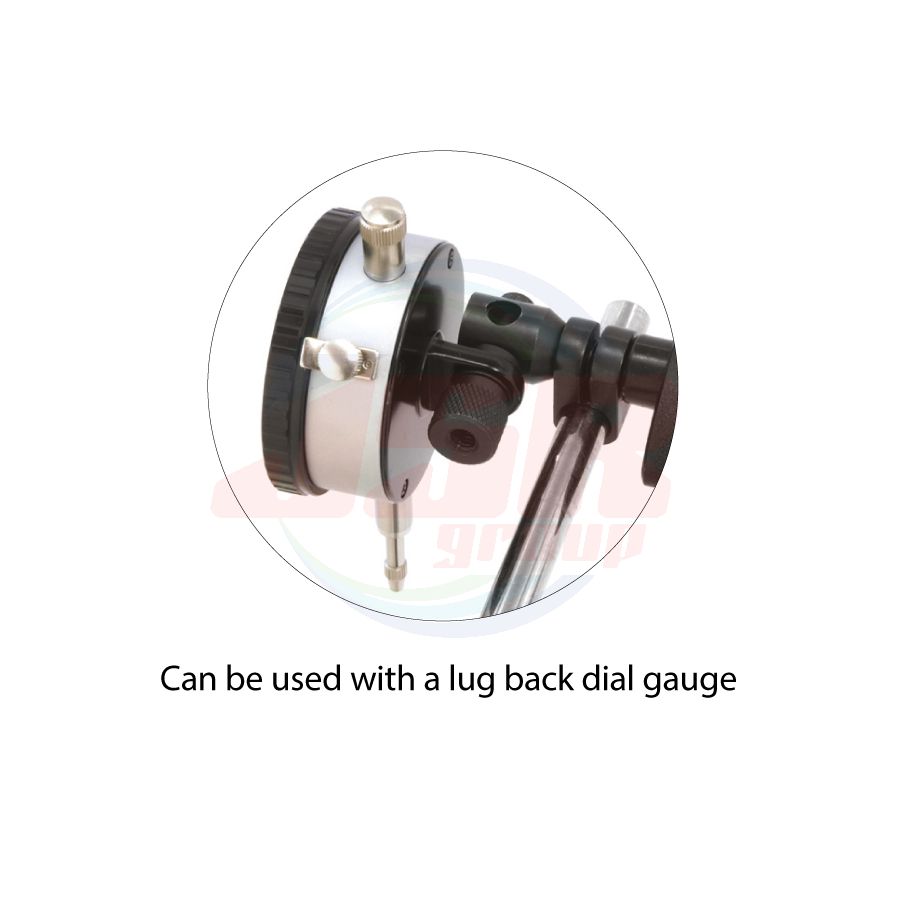

● Measurements that require a dial gauge or dial indicator to be held in fixed position
MATERIAL
● Body： Rolled steel for general structure
● Magnet： Ferrite
FEATURES
● Standard type
● Removable with ON/OFF lever operation
SPECIFICATIONS
● Magnetic adsorption： approx. 800N
● Stem holder： φ6mm・φ8mm
● Lug back holder： φ6.5mm・φ8mm
● Main post screw： M8×P1.25

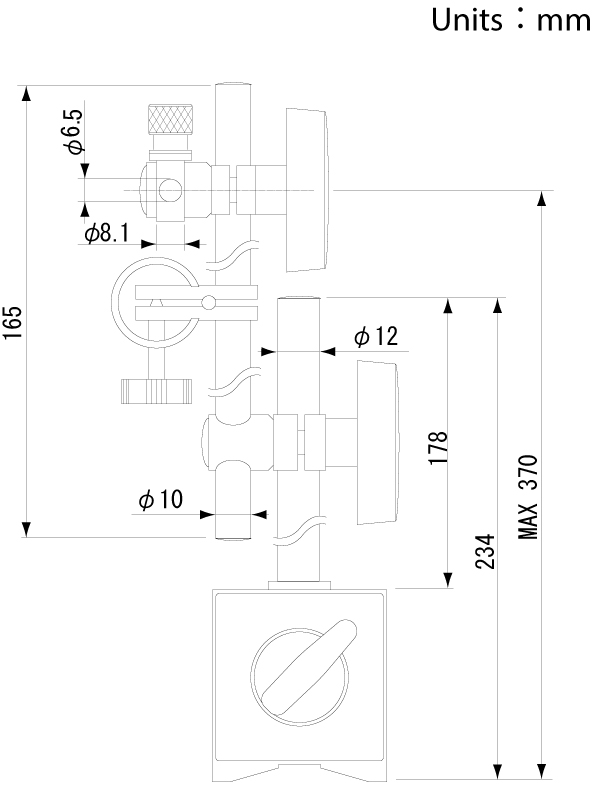

| Order No. | Model No. | Base Dimension （mm） |
Surface magnetic flux density （mT） |
Weight |
| 012870 | SB-6C | 50×60×55 | Max. 100 | 1.5kg |
| แบรนด์สินค้า | NIIGATA SEIKI (SK) |
|---|---|
| Order No. | 012870 (SB-6C) |
