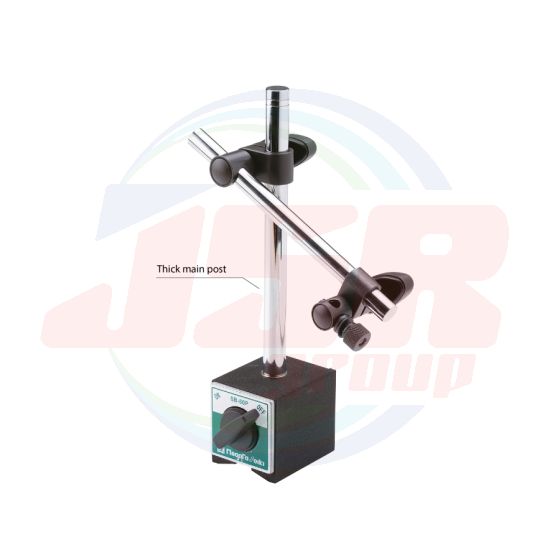

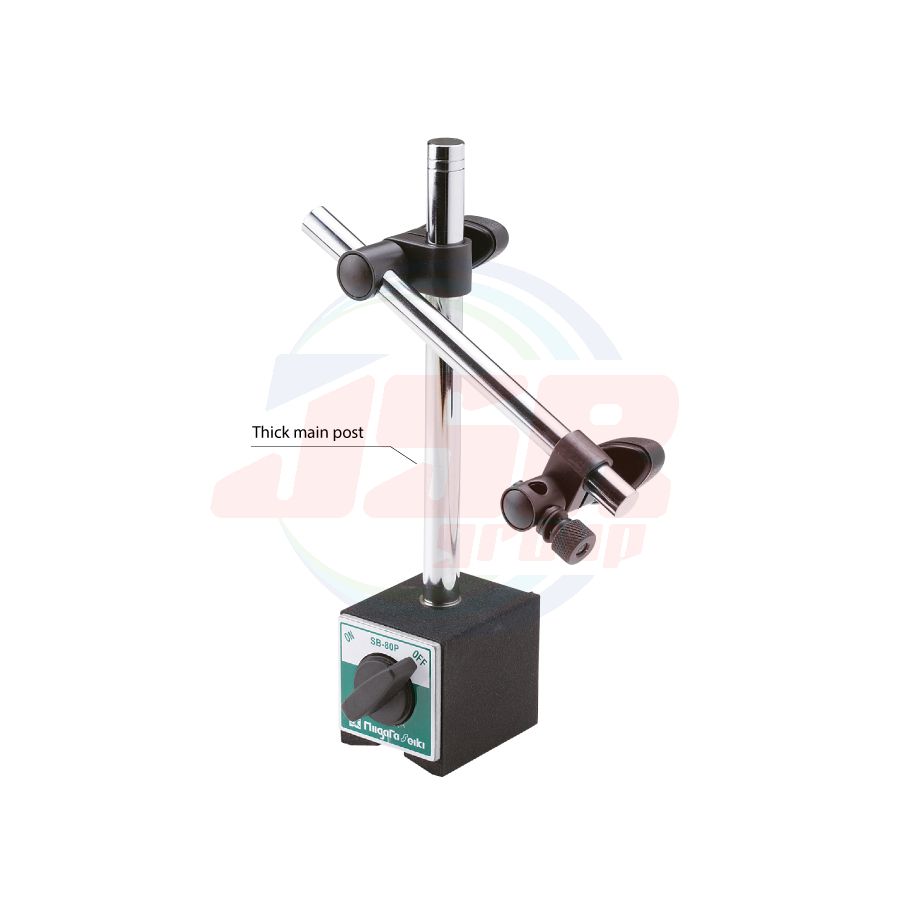

SB-80P (012873) | MAGNETIC BASE THICK MAIN POST TYPE| SK NIIGATASEIKI
THB 0.00
พร้อมส่ง
SKU
012873
USE
● Measurements that require a dital gauge or dial indicator to be held in fixed position
MATERIAL
●Body： Rolled steel for general structure
●Magnet： Ferrite
●Head： Aluminum
FEATURES
● Main and support post of thick specifications are adopted. Holds measuring instruments stably.
●Removable with ON/OFF magnet operation

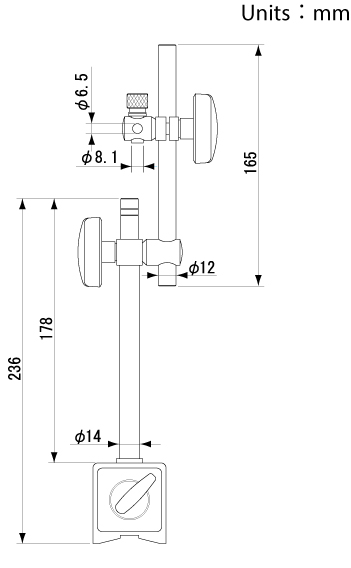

SPECIFICATIONS
●Stem holder： φ6mm・φ8mm

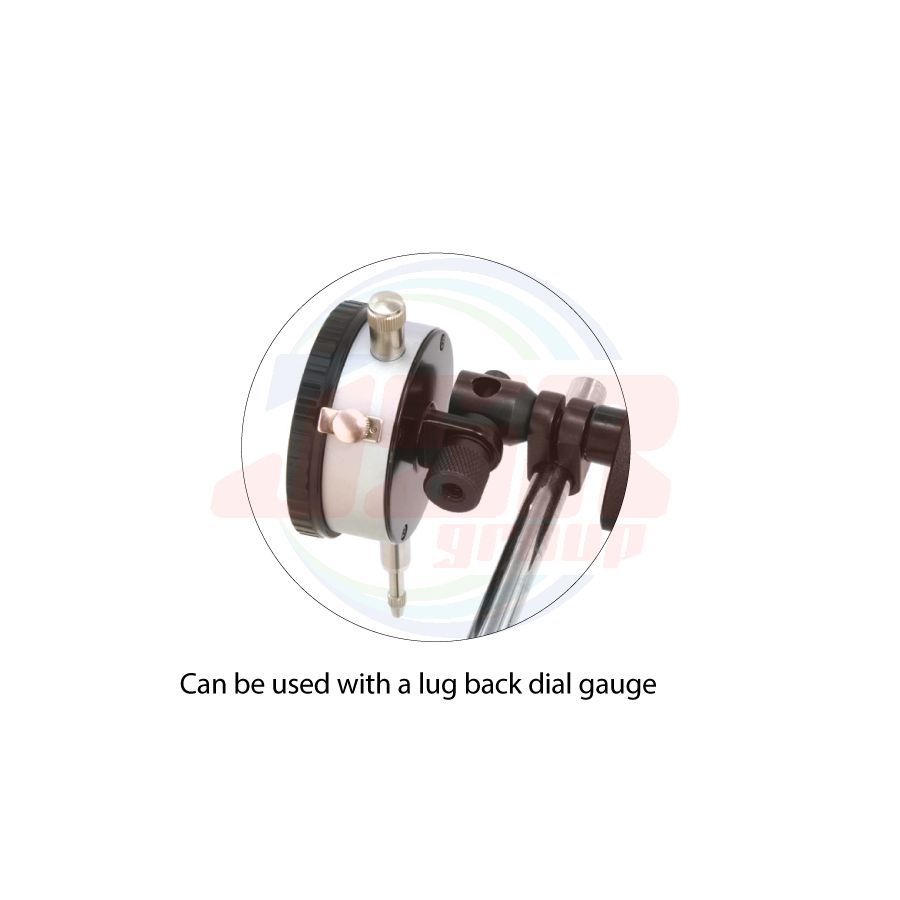

●Lug back holder： φ6.5mm・φ8mm
| Order No. | Model No. | Magnetice adsorption（N） |
Main post Dimension（mm） |
Support post Dimension（mm） |
Base Dimension （mm） |
Surface magnetic flux density（mT） |
Main point screw | Weight |
| 012873 | SB-80P | Approx. 800 | φ14×178 | φ12×165 | 50× 60×55 | Max. 100 | M8×P1.25 | 1.5kg |
| แบรนด์สินค้า | NIIGATA SEIKI (SK) |
|---|---|
| Order No. | 012873 (SB-80P) |
