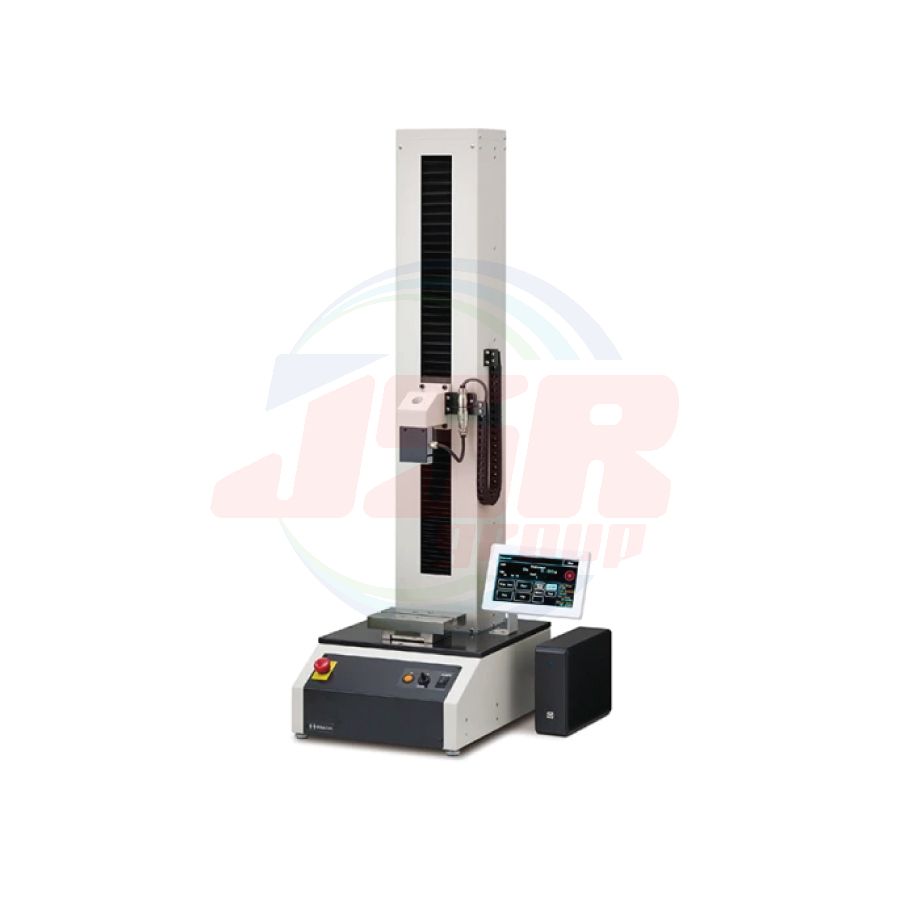

SDT-204F type is the tension and compression testing machine, which enables various kinds of testing up to 2kN maximum load. This type is suitable for testing which requires a comparative long stroke.

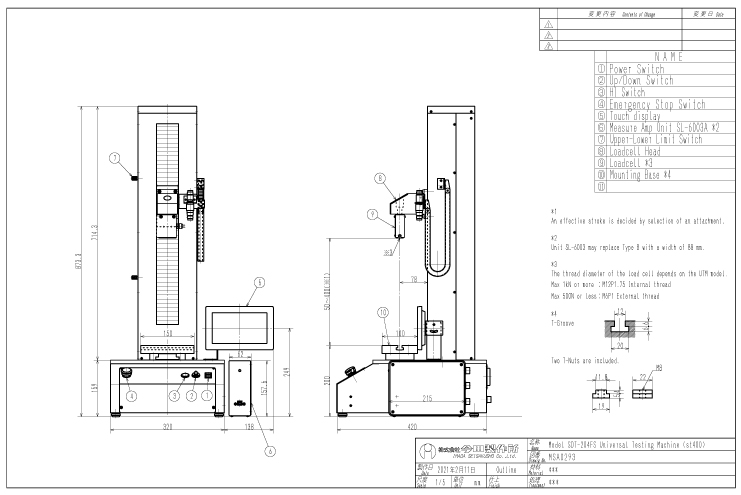

※1 Mounting screw size of the loadcell depend on the maximum load. Under 500N : M6P1 Male / 1kN or more : M12P1.75 Female.
※2 For options and custom orders, Model SL-6003 measurement amplifier is "Type B" with the width of 88mm.
※3 Please contact us for "Model SDT 204FL".
■ Characteristics
◎There has three types of stroke specifications.
■ Usage example
◎Pulling tests of well-stretchy samples as rubber.
◎Test with large stroke such as peeling tests.
■ Accessories / option
◎Output of ANALOG
Option to output load and displacement values at 10V/FS for connection to analog equipment.
◎Software
◎Extensometer (gauge length unit) Model GTD-1000
◎Protection cover
◎Digital Printer
◎Transformer
■ Standard specification
| Model(※1) | SDT-204FS-□ | SDT-204FM-□ | SDT-204FL-□ |
|---|---|---|---|
| Maximum load | 2kN | ||
| Minimum Unit | [Combination of Load Range according to the model] / [Specification of Load range] Reference |
||
| Load Display | |||
| Load Precision | JIS1 calss(indication value ± 1% range) | ||
| Displacement Minimum Unit | 0.01mm | ||
| Drive type | Brush-less Motor | ||
| Speed Range | 5～500mm/min | ||
| Distance from the Table to Loadcell (※2) | Max.400mm | Max.600mm | Max.850mm |
| Distance of Sample to Column | 78mm | 110mm | |
| Table Size | 150×100mm (With T-groove) | ||
| Safety Device | Optional setting Upper and lower Limit | ||
| Over-load prevention function | |||
| Basic Function | Memory function of the test conditions | ||
| Peak Hold function | |||
| Cycle mode function | |||
| Detect function of Break point | |||
| Detect function of Start Point | |||
| Auto Feed function | |||
| Auto Start point Return function | |||
| Judgment function | |||
| Output(※3) | USB | ||
| Power supply | AC100V 5A | ||
| Weight | Approx.48kg | Approx.51kg | Approx.56kg |
| Size | W458×D420×H874mm | W458×D420×H1074mm | W425×D420×H1324mm |
※1 The model symbol is put in □. Refer to [Combination of Load Range according to the model].
※2 An effective stroke is decided by selection of attachments.
※3 Analog output and Printer output can be installed with option.
■ Combination of Load Range according to the model
| Model | Usable Range | Setting Load Range | |||||||
|---|---|---|---|---|---|---|---|---|---|
| 2kN | 1kN | 500N | 200N | 100N | 50N | 20N | 10N | ||
| SDT-204F□-200R1 | 400N～2kN | ● | – | – | – | – | – | – | – |
| SDT-204F□-200R2 | 100N～2kN | ● | – | ● | – | – | – | – | – |
| SDT-204F□-200R3 | 20N～2kN | ● | – | ● | – | ● | – | – | – |
| SDT-204F□-100R1 | 200N～1kN | – | ● | – | – | – | – | – | – |
| SDT-204F□-100R2 | 40N～1kN | – | ● | – | ● | – | – | – | – |
| SDT-204F□-100R3 | 10N～1kN | – | ● | – | ● | – | ● | – | – |
| SDT-204F□-50R1 | 100N～500N | – | – | ● | – | – | – | – | – |
| SDT-204F□-50R2 | 20N～500N | – | – | ● | – | ● | – | – | – |
| SDT-204F□-50R3 | 4N～500N | – | – | ● | – | ● | – | ● | – |
| SDT-204F□-20R1 | 40N～200N | – | – | – | ● | – | – | – | – |
| SDT-204F□-20R2 | 10N～200N | – | – | – | ● | – | ● | – | – |
| SDT-204F□-20R3 | 2N～200N | – | – | – | ● | – | ● | – | ● |
■ Specifications of Load Range
| Load Range | Maximum Load Display | Minimum Unit |
|---|---|---|
| 2kN | 2000N | 1N |
| 1kN | 1000.0N | 0.1N |
| 500N | 500.0N | |
| 200N | 200.0N | |
| 100N | 100.00N | 0.01N |
| 50N | 50.00N | |
| 20N | 20.00N |
※1 The usable range is recommended at 20～100% of each setting Load Range.
※2 It is possible as an option to add Load Range other than the above listed.
