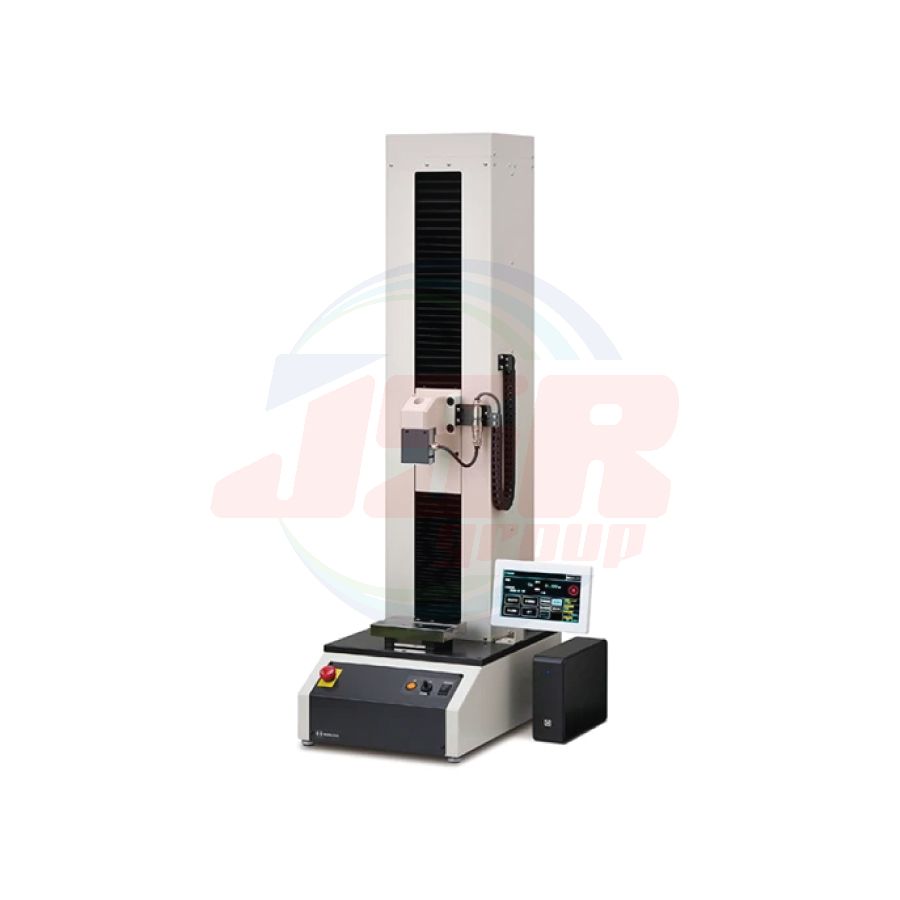

It is tension and compression testing machine with the maximum load capacity as the desk model with single column.
※1 Mounting screw size of the loadcell depend on the maximum load. Under 500N : M6P1 Male /1kN or more : M12P1.75 Female.
※2 For options and custom orders, Model SL-6003 measurement amplifier is "Type B" with the width of 88mm.
■ Characteristics
◎This is suitable for the long stroke tests.
◎There has two types of stroke specifications.
■ Usage example
◎Various material tests of the middle load.
◎The evaluation tests of the small machine parts.
■ Accessories / option
◎Output of ANALOG
Option to output load and displacement values at 10V/FS for connection to analog equipment.
◎Software
◎Extensometer (gauge length unit) Model GTD-50
◎Protection cover
◎Digital Printer
◎Transformer
■ Standard specification
| Model(※1) | SDT-504FS-□ | SDT-504FL-□ |
|---|---|---|
| Maximum load | 5kN | |
| Minimum Unit | [Combination of Load Range according to the model] / [Specification of Load range] Reference |
|
| Load Display | ||
| Load Precision | JIS1 calss(indication value ± 1% range) | |
| Displacement Minimum Unit | 0.01mm | |
| Drive type | AC Servo Motor | |
| Speed Range | 0.1～500mm/min | |
| Distance from the Table to Loadcell (※2) | Max.300mm | Max.580mm |
| Distance of Sample to Column | 80mm | |
| Table Size | 150×100mm(With T-groove) | |
| Safety Device | Optional setting Upper and lower Limit | |
| Over-load prevention function | ||
| Basic Function | Memory function of the test conditions | |
| Peak Hold function | ||
| Cycle mode function | ||
| Detect function of Break point | ||
| Detect function of Start Point | ||
| Auto Feed function | ||
| Auto Start point Return function | ||
| Judgment function | ||
| Output(※3) | USB | |
| Power supply | AC100V 7A | |
| Weight | Approx.67kg | Approx.74kg |

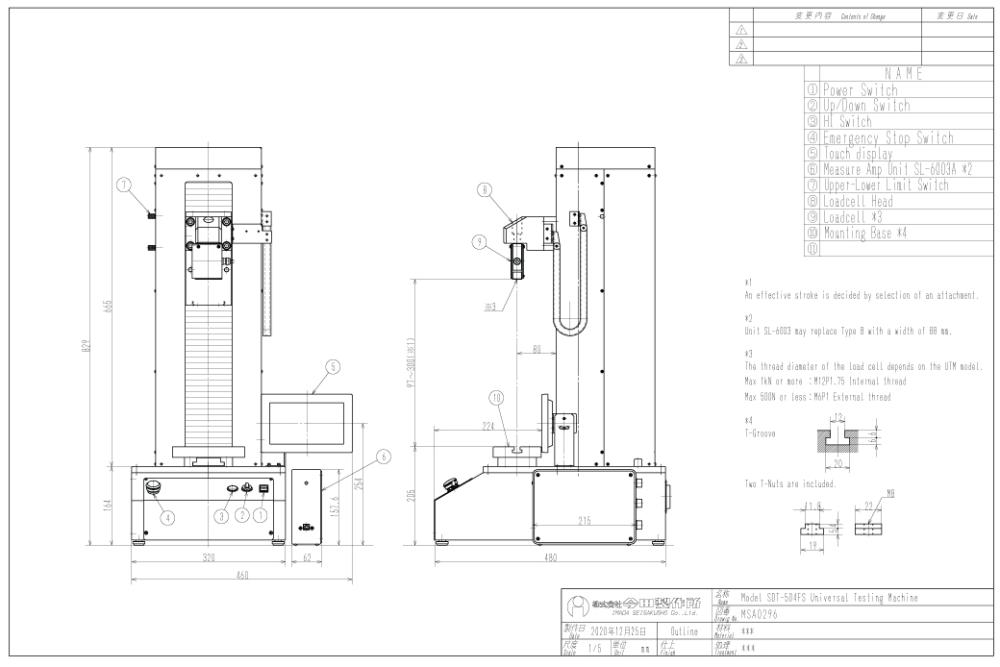

| Size | W460×D480×H829mm | W460×D480×H1109mm |
※1 The model symbol is put in □. Refer to [Combination of Load Range according to the model].
※2 An effective stroke is decided by selection of attachments.
※3 Analog output and Printer output can be installed with option.
■ Combination of Load Range according to the model
| Model | Usable Range | Setting Load Range | ||
|---|---|---|---|---|
| 5kN | 1kN | 200N | ||
| SDT-504F□-R1 | 1kN～5kN | ● | – | – |
| SDT-504F□-R2 | 200N～5kN | ● | ● | – |
| SDT-504F□-R3 | 40N～5kN | ● | ● | ● |
■ Specifications of Load Range
| Load Range | Maximum Load Display | Minimum Unit |
|---|---|---|
| 5kN | 5000N | 1N |
| 1kN | 1000.0N | 0.1N |
| 200N | 200.0N |
※1 The usable range is recommended at 20～100% of each setting Load Range.
※2 It is possible as an option to add Load Range other than the above listed.
