Model “SDW-F” is the Universal testing machine that can measure from 2kN to 200kN. This is the gate type frame testing machine that puts a load on the test piece.

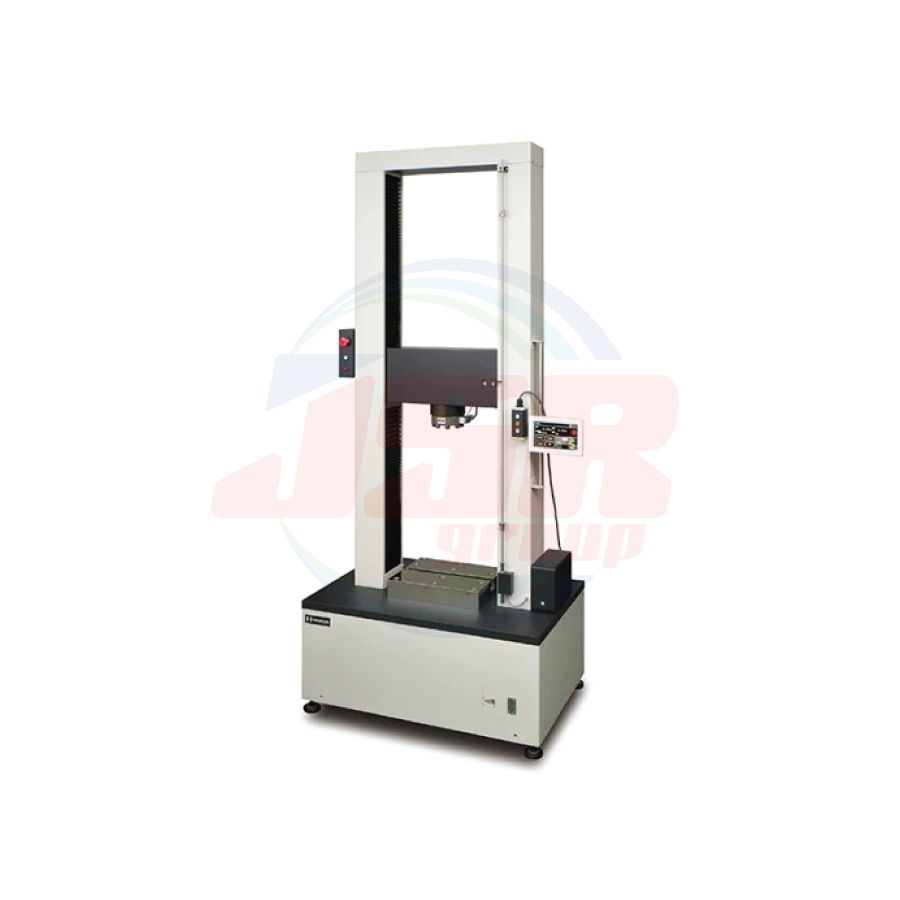

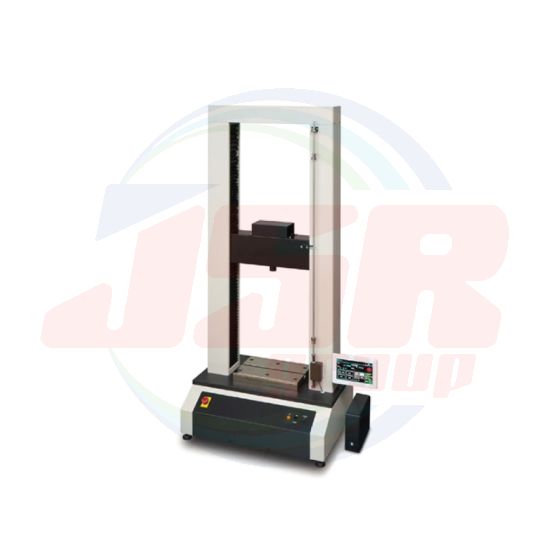

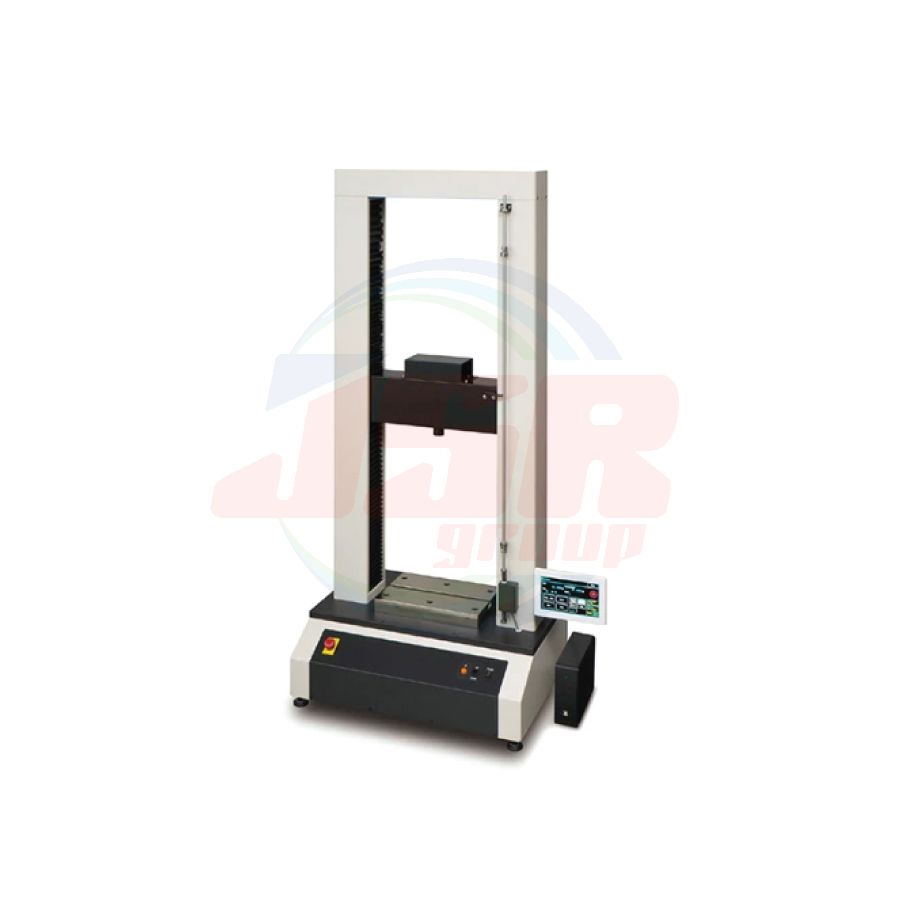

There are two type, the desktop type that can be used on the work table and the floor-standing type.

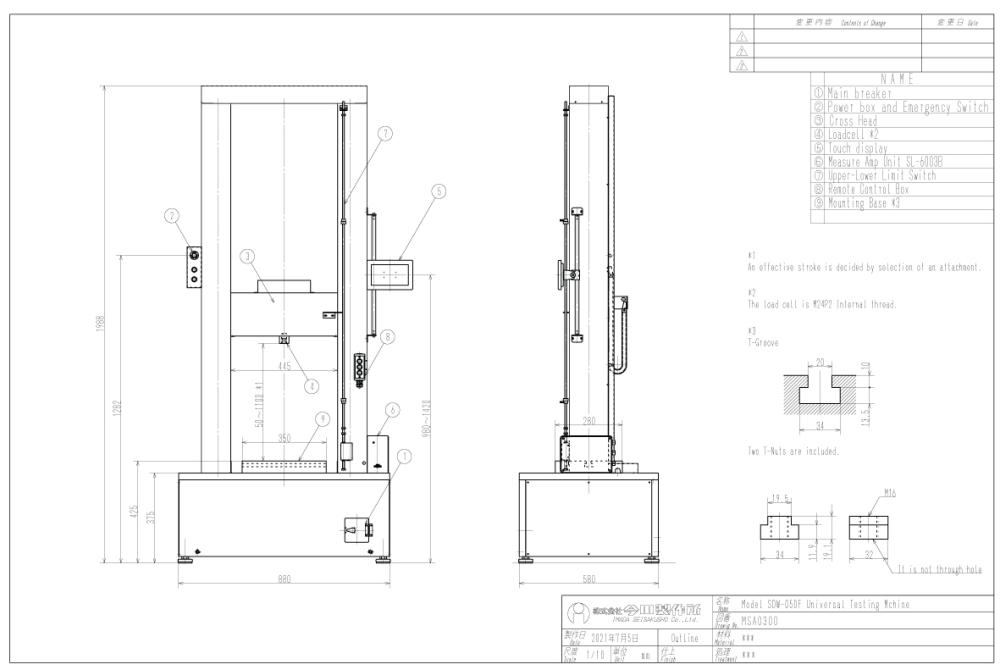

※1 The maximum stroke is in the state where the jig is not attached. (SDW-002F～020F : Max 800mm, 050F : Max 1100mm, 100F : Max 1080mm)
※2 Loadcell screw size SDW-002F～010F : M12P1.75, 020F : M16P1.5, 050F : M24P2, 100F : M32P2.
※3 For options and custom orders, Model SL-6003 measurement amplifier is "Type B" with the width of 88mm. (in case of Model SDW-002F～020F)
■ Characteristics
◎This is a gate type frame structure that allows you to test relatively large test pieces.
◎It can be also used for the test of the small load by adding a smaller load-range.
■ Usage example
◎Various material tests of the middle load.
◎Tests of relatively large samples are possible with this gate type frame structure.
■ Accessories / option
◎The addition of the load range.
◎Displacement resolution 1μm.
◎Output of ANALOG
Option to output load and displacement values at 10V/FS for connection to analog equipment.
◎Software
◎Digital Printer
◎Protection cover
◎Extensometer (gauge length unit) Model GTD-50 / GT-1000
◎Transformer (※SDW-050F / 100F Please contact us for overseas use.)
■ Standard specification
| Model(※1) | SDW-002F-□ | SDW-005F-□ | SDW-010F-□ | SDW-020F-□ | SDW-050F-□ | SDW-100F-□ |
|---|---|---|---|---|---|---|
| Maximum load | 2kN | 5kN | 10kN | 20kN | 50kN | 100kN |
| Minimum Unit | [Combination of Load Range according to the model] / [Specification of Load range] Reference | |||||
| Load Display | ||||||
| Load Precision | JIS1 calss(indication value ± 1% range) | |||||
| Displacement Minimum Unit | 0.01mm | |||||
| Drive type | AC Servo Motor | |||||
| Maximum Speed (※2) | 1000mm/min | 500mm/min | 1000mm/min | |||
| Test speed range | 0.05～500mm/min | 0.1～300mm/min | 0.05～500mm/min | |||
| Distance of Sample to Column (※3) | Max.800mm | Max.1100mm | Max.1080mm | |||
| Effective Test Width | 380mm | 455mm | ||||
| Table Size | 300×180mm (With T-groove) | 300×200mm (With T-groove) | 350×280mm (With T-groove) | |||
| Safety Device | Optional setting Upper and lower Limit | |||||
| Over-load prevention function | ||||||
| Basic Function | Memory function of the test conditions | |||||
| Detect function of Break point | ||||||
| Cycle mode function | ||||||
| Detect function of Start Point | ||||||
| Detect function of Start Point | ||||||
| Auto Feed function | ||||||
| Auto Start point Return function | ||||||
| Judgment function | ||||||
| Output(※4) | USB | |||||
| Installation type | Desktop type | Floor-standing type | ||||
| Power supply | AC100V 10A | AC200V 30A 3phase | ||||
| Weight | Approx.102kg | Approx.156kg | Approx.440kg | |||
| Size | W580×D422×H1292mm | W640×D460×H1416mm | W880×D580×H1988mm | |||
※1 The model symbol is put in □. Refer to [Combination of Load Range according to the model].
※2 Maximum speed can be used for return or manual operation. And at the time of the test, it will be used within the test speed range.
※3 An effective stroke is decided by selection of attachments.
※4 Analog output and Printer output can be installed with option.
■ Combination of Load Range according to the model
| Model | Usable Range | Setting Load Range | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 100kN | 50kN | 20kN | 10kN | 5kN | 2kN | 1kN | 500N | 200N | 100N | ||
| SDW-002F-R1 | 400N～2kN | – | – | – | – | – | ● | – | – | – | – |
| SDW-002F-R2 | 100N～2kN | – | – | – | – | – | ● | – | ● | – | – |
| SDW-002F-R3 | 20N～2kN | – | – | – | – | – | ● | – | ● | – | ● |
| SDW-005F-R1 | 1kN～5kN | – | – | – | – | ● | – | – | – | – | – |
| SDW-005F-R2 | 200N～5kN | – | – | – | – | ● | – | ● | – | – | – |
| SDW-005F-R3 | 40N～5kN | – | – | – | – | ● | – | ● | – | ● | – |
| SDW-010F-R1 | 2kN～10kN | – | – | – | ● | – | – | – | – | – | – |
| SDW-010F-R2 | 400N～10kN | – | – | – | ● | – | ● | – | – | – | – |
| SDW-010F-R3 | 100N～10kN | – | – | – | ● | – | ● | – | ● | – | – |
| SDW-020F-R1 | 4kN～20kN | – | – | ● | – | – | – | – | – | – | – |
| SDW-020F-R2 | 1kN～20kN | – | – | ● | – | ● | – | – | – | – | – |
| SDW-020F-R3 | 200N～20kN | – | – | ● | – | ● | – | ● | – | – | – |
| SDW-050F-R1 | 10kN～50kN | – | ● | – | – | – | – | – | – | – | – |
| SDW-050F-R2 | 2kN～50kN | – | ● | – | ● | – | – | – | – | – | – |
| SDW-050F-R3 | 400N～50kN | – | ● | – | ● | – | ● | – | – | – | – |
| SDW-100F-R1 | 20kN～100kN | ● | – | – | – | – | – | – | – | – | – |
| SDW-100F-R2 | 4kN～100kN | ● | – | ● | – | – | – | – | – | – | – |
| SDW-100F-R3 | 1kN～100kN | ● | – | ● | – | ● | – | – | – | – | – |
■ Specifications of Load Range
| Load Range | Maximum Load Display | Minimum Unit |
|---|---|---|
| 100kN | 100.00kN | 0.01kN |
| 50kN | 50.00kN | |
| 20kN | 20.00kN | |
| 10kN | 10.000kN | 0.001kN |
| 5kN | 5000N | 1N |
| 2kN | 2000N | |
| 1kN | 1000.0N | 0.1N |
| 500N | 500.0N | |
| 200N | 200.0N | |
| 100N | 100.00N | 0.01N |
※1 The usable range is recommended at 20～100% of each setting Load Range.
※2 It is possible as an option to add Load Range other than the above listed.
■ Custom order specifications
Desktop type
The wide type of effective test width
Protection cover
Constant-Temperature Chamber furnished
200kN Range type
