SENSORPAK | Measurement data acquisition software for EH | MITUTOYO
THB 0.00
ราคารวม VAT แล้ว
พร้อมส่ง
SKU
SENSORPAK
QTY:
10

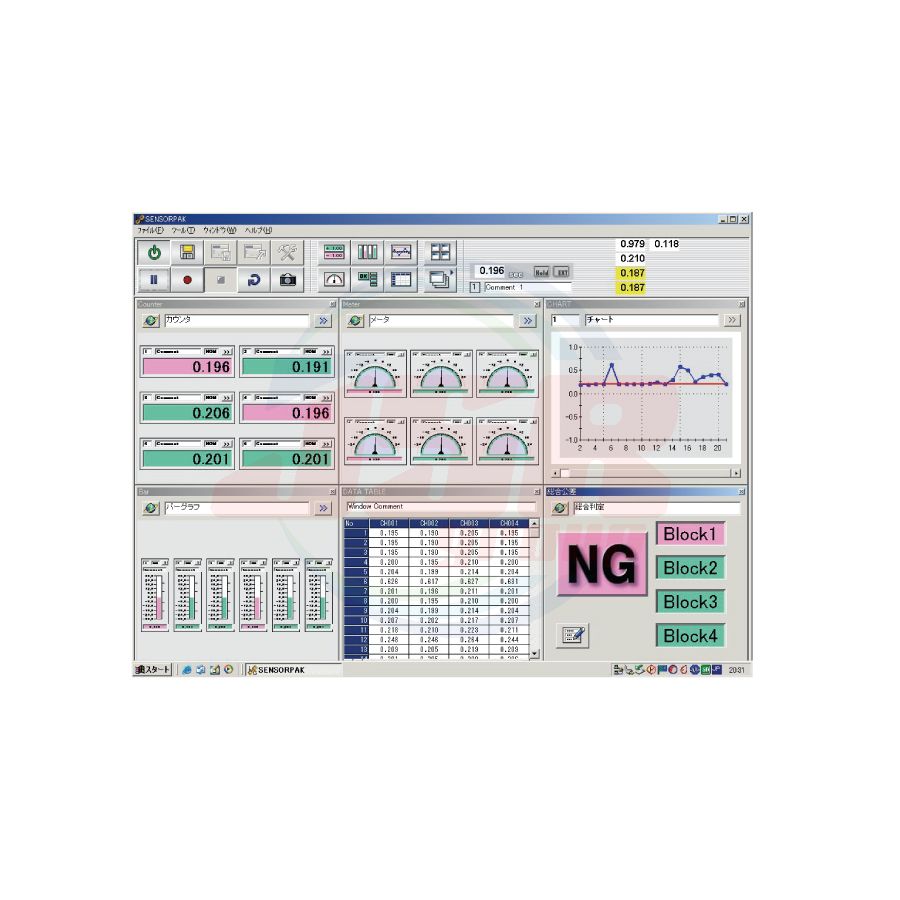

• This software facilitates loading measurement data onto a personal computer from a linear gage counter with RS-232C output (EH), or from a Litematic display (VL).
• 20 channels (max.) of measurement data can be processed.
• Arithmetical calculations and maximum width calculations can be performed using the measurement data.
• Exporting measurement data into MS-Excel format is supported.

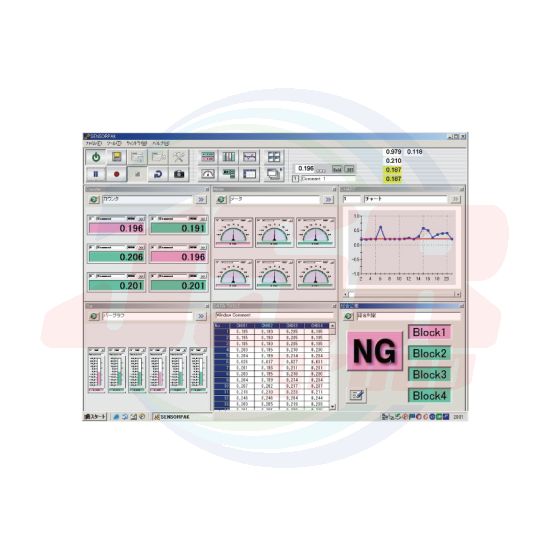

• Real time graphical display by means of bar-graph or meter is provided.
Specifications
| Order No. | SEONSORPAK | |
| Product configuration | Program disk (CD-ROM), license key, operation manual | |
| Compatible devices | Mitutoyo RS_LINK compatible devices ・LGH Series (USB, RS-232C) ・EH counter (USB, RS-232C) ・Litematic VL (RS-232C) |
|
| Connecting cable | A cable should be prepared to the following specifications: Accessory ・RS-232C connection: I/O cable (21HZA137)*¹ Commercial product ・USB connection: USB cable (type A - type B) ・RS-232C connection: RS-232C cross cable*¹ |
|
| Number of connectable gages | Max. 20 units (when 10 units of EH counter for linear gage are connected via RS-Link) | |
| Functions | Display*² | Display format: counting, bar graph, indicator, chart, and table Display cycle: 0.3 s (when 20 gage units are connected, 1-window display, and no Excel output) |
| Calculation | Calculation (up to 30 items) between designated gages is available. Calculation items: Sum, difference, total, average, maximum, minimum, range (maximum–minimum), calculation with a constant |
|
| Tolerance judgment |
Per item: Displays the result in colors (3-step tolerance: red/green/red; 5-step tolerance: red/yellow/green/yellow/red) Total judgment: Displays in colors (red/green) by monitoring the multiple gages and calculation result |
|
| Recording*² | Items: channel values, calculation result, tolerance judgment, total tolerance judgment, timestamp Max. number of records: 60000 for software recording (with 6 gages connected); up to 27000 (with 20 gages connected) Output function: Direct output to Excel, CSV file output (compatible with MeasurLink®) Recording trigger: key, timer, external TRG |
|
| Input/output*³ | Input: TRG for recoderding (HOLD) Output: Total tolerance judgment result |
|
| System environment | DOS/V compatible PC environment CPU: Pentium4 2 GHz or more, Memory: 2 GB or more, Hard disk: 2 GB or more free space OS: Windows 7 (32 bit/64 bit), Windows 8.1 (32 bit/64 bit), Windows 10 (64 bit) |
|
*1 If the PC is not equipped with an RS-232C port, please contact the nearest Mitutoyo sales office/service center.
*2 Display cycle and the maximum number of records differ depending on the environment (specification of PC, number of connected gages, display format and communication setting).
*3 With use of the I/O cable (accessory). When an I/O cable is not used, the I/O connector of connector of the counter alternatively functions.
(Refer to the user's manual of the counter in use.)
| แบรนด์สินค้า | MITUTOYO |
|---|---|
| Order No. | SENSORPAK |
