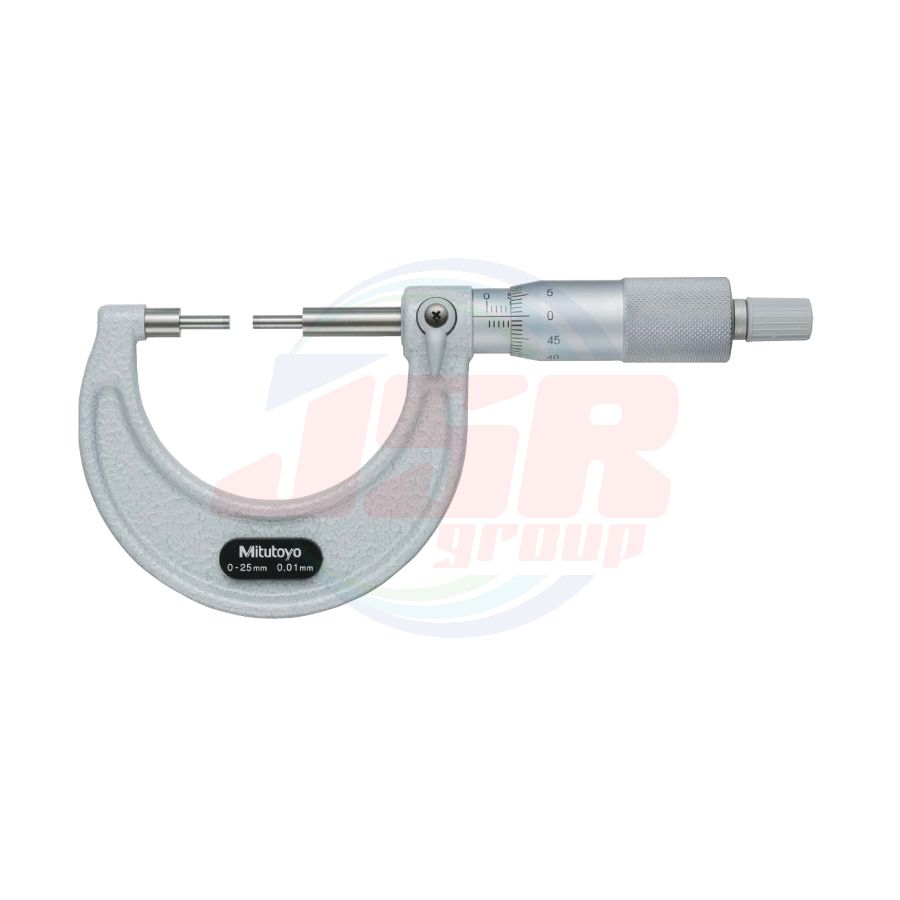

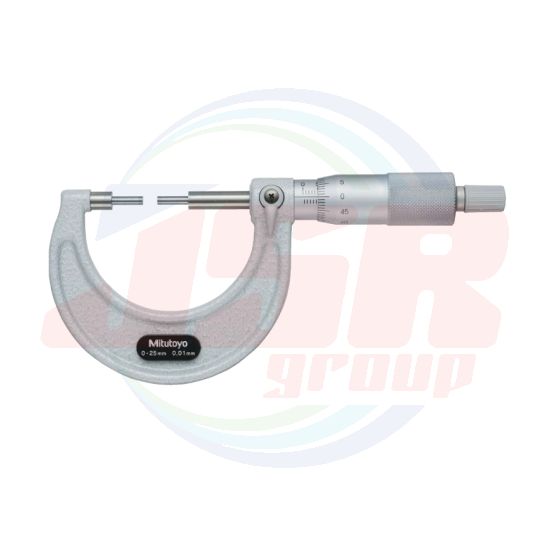

SERIES 111 | Spline Micrometers | MITUTOYO
ราคาต่ำสุด
THB 0.00
THB 0.00
ราคาปรกติ
THB 3,625.16
พร้อมส่ง
SKU
1MIT-SPM-111
• The anvil and spindle have a small diameter for measuring splined shafts, slots and keyways.
• Measuring faces: Carbide tipped
• Equipped with Ratchet Stop for constant measuring force.
SPECIFICATIONS
Metric
| Order No. | Range (mm) |
Graduation (mm) |
Maximum permissible error JMPE (µm) |
Flatness (µm) |
Parallelism (µm) |
Measuring face |
| 111-215 | 0 - 25 | 0.01 | ±3 | 0.3 | 2 | Type B |
| 111-115 | 0 - 25 | Type A | ||||
| 111-116 | 25 - 50 | |||||
| 111-117 | 50 - 75 | |||||
| 111-118 | 75 -100 | ±4 | 3 | |||
| 111-119 | 100 - 125 | |||||
| 111-120 | 125 - 150 | |||||
| 111-121 | 150 - 175 | ±5 | ||||
| 111-122 | 175 - 200 | 4 | ||||
| 111-123 | 200 - 225 | |||||
| 111-124 | 225 - 250 | ±6 | ||||
| 111-125 | 250 - 275 | |||||
| 111-126 | 275 - 300 | 5 |
• Standard accessories: Setting standard, 1 pc. (except for measuring range 0 to 25 mm (0 to 1 in) models), Spanner (301336), 1 pc.
| แบรนด์สินค้า | MITUTOYO |
|---|---|
| Digital/Analog | Analog |
| Inch-Metric | Metric |

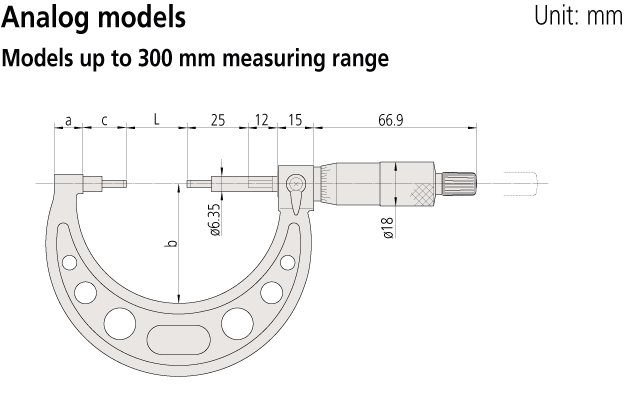

| Order No. | L | a | b | c |
| 111-215 | 0 | 10 | 38 | 17.5 |
| 111-115 | ||||
| 111-116 | 25 | 12 | 49 | |
| 111-117 | 50 | 14 | 60 | |
| 111-118 | 75 | 16.7 | 79 | 20.3 |
| 111-119 | 100 | 18.8 | 94 | 20.7 |
| 111-120 | 125 | 19.1 | 106 | 21.1 |
| 111-121 | 150 | 18.2 | 118 | 21.3 |
| 111-122 | 175 | 16.8 | 130 | 21.7 |
| 111-123 | 200 | 18 | 143 | 20.5 |
| 111-124 | 225 | 156 | 21.5 | |
| 111-125 | 250 | 169 | ||
| 111-126 | 275 | 181 |
