SERIES 112 | Point Micrometer | MITUTOYO
ราคาต่ำสุด
THB 0.00
THB 0.00
ราคาปรกติ
THB 3,265.64
พร้อมส่ง
SKU
1MIT-CPM-112
• Pointed spindle and anvil for measuring the web thickness of drills, small grooves, keyways, and other hard-to-reach dimensions.
• The measuring points have approximately 0.3 mm radius.
• Carbide measuring tips are also available.
• Equipped with Ratchet Stop for constant measuring force.
SPECIFICATIONS
Metric
| Order No. | Range (mm) |
Graduation (mm) |
Maximum permissible error JMPE (µm) |
Point |
| Analog | ||||
| 112-153 | 0 - 25 | 0.01 | ±3 | 15º |
| 112-154 | 25 - 50 | |||
| 112-155 | 50 - 75 | |||
| 112-156 | 75 - 100 | ±4 | ||
| 112-201 | 0 - 25 | ±3 | 30º | |
| 112-202 | 25 - 50 | |||
| 112-203 | 50 - 75 | |||
| 112-204 | 75 - 100 | ±4 | ||
| Analog (With carbide tip) | ||||
| 112-165 | 0 - 25 | 0.01 | ±3 | 15º |
| 112-166 | 25 - 50 | |||
| 112-167 | 50 - 75 | |||
| 112-168 | 75 - 100 | ±4 | ||
| 112-213 | 0 - 25 | ±3 | 30º | |
| 112-214 | 25 - 50 | |||
| 112-215 | 50 - 75 | |||
| 112-216 | 75 - 100 | ±4 | ||
• Standard accessories: Setting standard, 1 pc. (except for measuring range 0 to 25 mm (0 to 1 in) models), Spanner (301336), 1 pc.
| แบรนด์สินค้า | MITUTOYO |
|---|---|
| Inch-Metric | Metric |
| Digital/Analog | Analog |

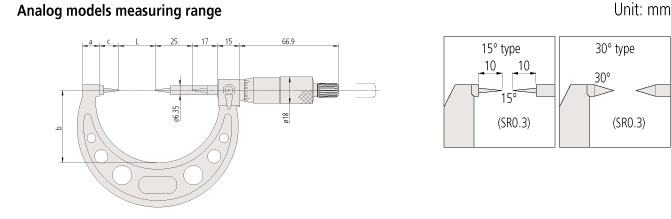

| Order No. | L | a | b | c | Frame thickness |
| 112-153 | 0 | 10 | 38 | 12.5 | (9) |
| 112-154 | 25 | 12 | 49 | (10) | |
| 112-155 | 50 | 14 | 60 | (11) | |
| 112-156 | 75 | 16.7 | 79 | 15.3 | (13) |
