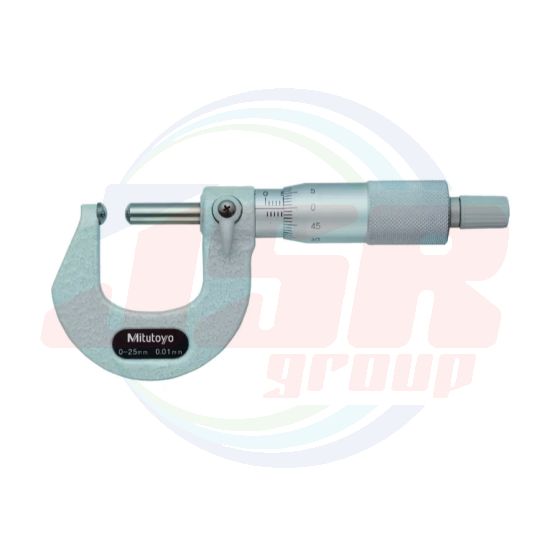

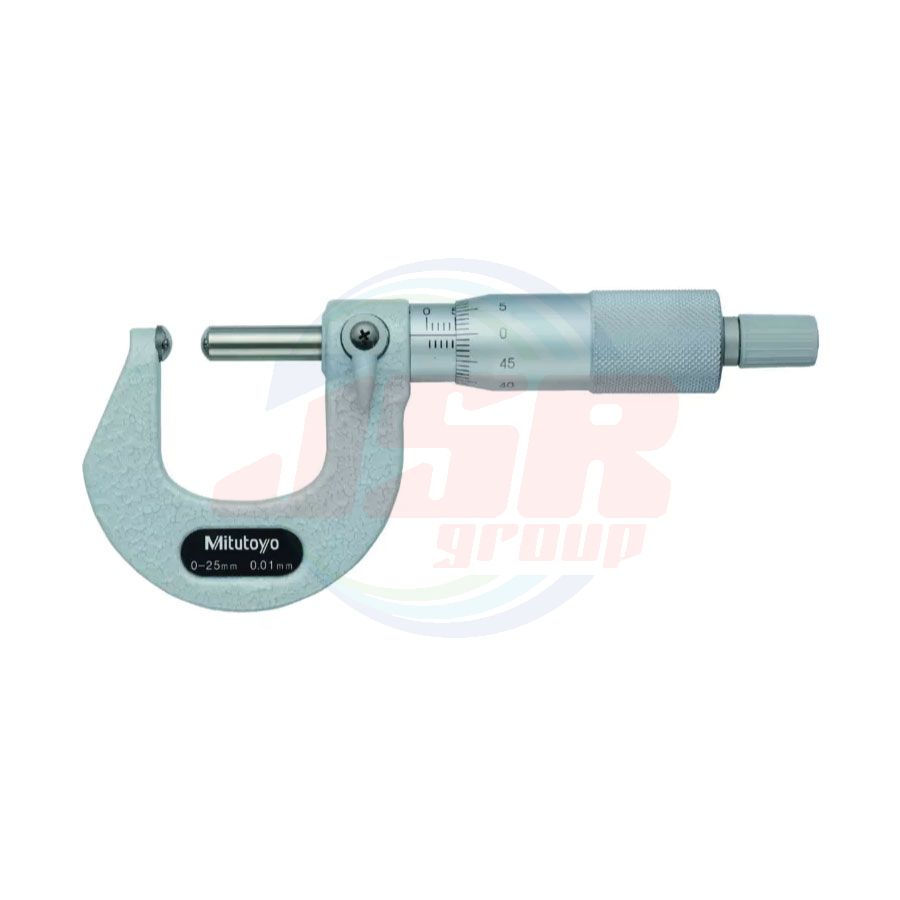

SERIES 115 | Tube Micrometers — Spherical Anvil and Spindle Type | MITUTOYO
ราคาต่ำสุด
THB 0.00
THB 0.00
ราคาปรกติ
THB 2,080.08
พร้อมส่ง
SKU
1MIT-BMD-115
• Designed to measure workpieces with concave-concave surfaces. The spherical anvil and spindle respectively come into contact with the workpiece at a point, thus increasing measurement accuracy.
• Equipped with Ratchet Stop for constant measuring force.
SPECIFICATIONS
Metric
| Order No. | Range (mm) |
Graduation (mm) |
Maximum permissible error JMPE (µm) |
øD (mm) |

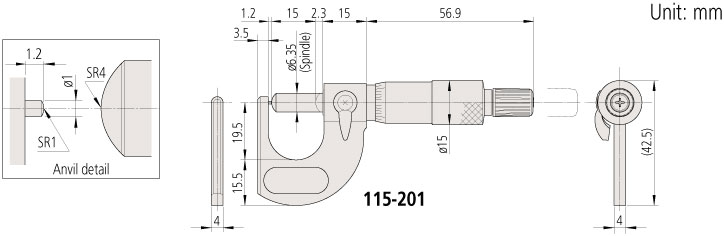

| 115-201 | 0 - 15 | 0.01 | ±3 | ø5.5 |
| 115-215 | 0 - 25 | ø10 | ||
| 115-216 | 25 - 50 | ø11 | ||
| 115-217 | 50 - 75 | ø17 | ||
| 115-218 | 75 - 100 | ±4 | ø18 |
• Standard accessories: Setting standard, 1 pc. (except for measuring range 0 to 15 mm/0 to 25 mm (0 to 1 in) models)
Spanner (200168), 1 pc. (for 115-201), Spanner (301336), 1 pc. (for models other than 115-201)
| แบรนด์สินค้า | MITUTOYO |
|---|---|
| Digital/Analog | Analog |
| Inch-Metric | Metric |
