SERIES 118 | Sheet Metal Micrometers | MITUTOYO
THB 0.00
THB 0.00
พร้อมส่ง
SKU
PMU-118
• The U-shaped micrometer is ideal for measuring the thickness of sheet metal at a considerable distance from the edge.
• Measuring faces: Carbide tipped
• Profile of measuring faces: Flat-Flat, Spherical-Flat and Spherical-Spherical.
• Equipped with Ratchet Stop for constant measuring force.

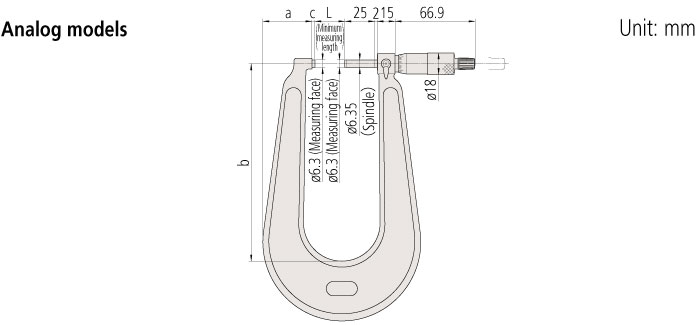

SPECIFICATIONS
Metric
| Order No. | Range (mm) |
Graduation (mm) |
Maximum permissible error JMPE (µm) |
Flatness (µm) |
Parallelism (µm) |
Throat depth (mm) |
Measuring surfaces |
| 118-101 | 0 - 25 | 0.01 | ±4 | 0.6 | 3 | 100 | F-F |
| 118-102 | 150 | F-F | |||||
| 118-114 | S-F | ||||||
| 118-118 | S-S | ||||||
| 118-103 | ±5 | 1 | 300* | F-F | |||
| 118-110 | 25 - 50 | ±4 | 0.6 | 150 | F-F | ||
| 118-126 | S-S |
• Standard accessories: Setting standard, 1 pc. (except for measuring range 0 to 25 mm (0 to 1 in) models)
Spanner (200877), 1 pc. (for 118-1XX)
Spanner (200154), 1 pc. (for 118-103/107)
* Models with a 300 mm (12 in) throat are equipped with a stand for convenience of measurement in the horizontal orientation as
standard.
Note: In spherical-flat anvil type micrometers, the measuring face on the anvil side is spherical.
| แบรนด์สินค้า | MITUTOYO |
|---|---|
| Digital/Analog | Analog |
