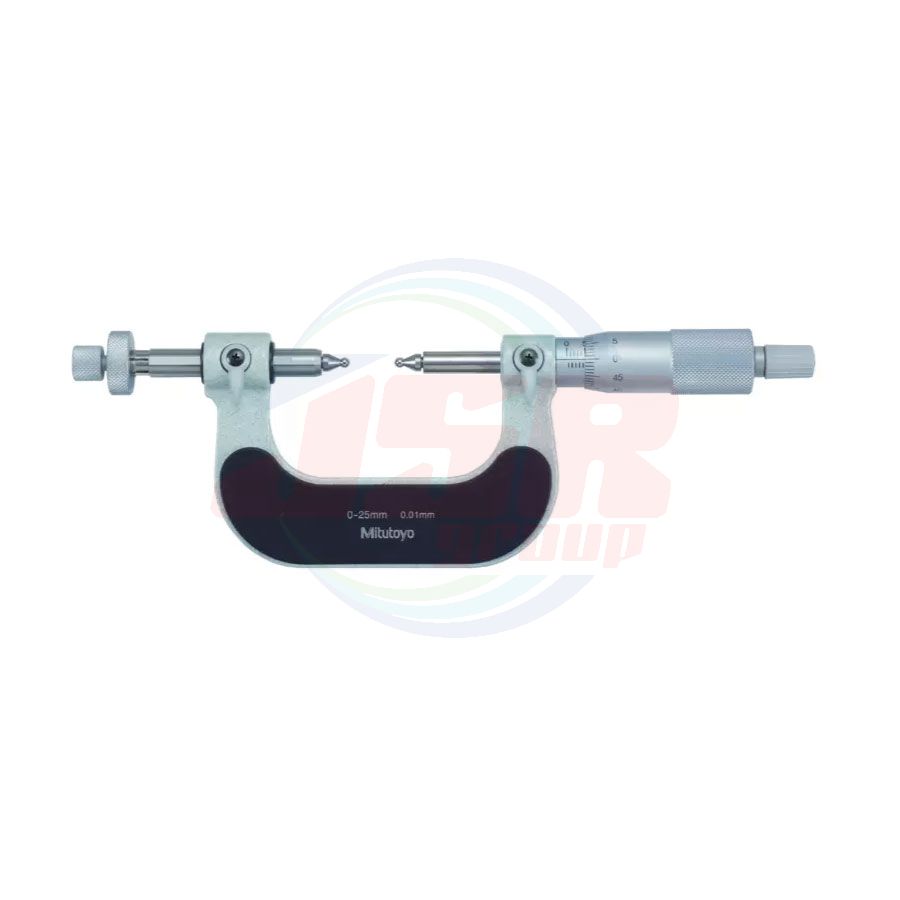

SERIES 124 | Gear Tooth Micrometers — Interchangeable Ball Anvil/Spindle Tip Type | MITUTOYO
ราคาต่ำสุด
THB 0.00
THB 0.00
ราคาปรกติ
THB 8,274.31
พร้อมส่ง
SKU
1MIT-GMB-124
• Intended for making over-pin diameter measurements on gears using precision ball anvils / spindle tips (optional).
• Interchangeable ball anvils/spindle tips for various gear modules (0.5 to 5.25) are optional.
• Equipped with Ratchet Stop for constant measuring force.
SPECIFICATIONS
Metric
| Order No. | Range (mm) | Graduation (mm) | Spindle feed error (μm) |
| 124-173 | 0 - 25 | 0.01 | 3 |
| 124-174 | 25 - 50 | ||
| 124-175 | 50 - 75 | ||
| 124-176 | 75 - 100 | ||
| 124-177 | 100 - 125 | ||
| 124-178 | 125 - 150 | ||
| 124-179 | 150 - 175 | ||
| 124-180 | 175 - 200 | ||
| 124-181 | 200 - 225 | ||
| 124-182 | 225 - 250 | ||
| 124-183 | 250 - 275 | ||
| 124-195 | 275 - 300 |
• Standard accessories: Setting standard, 1 pc. (except for measuring range 0 to 25 mm models), Spanner (301336), 1 pc.
| แบรนด์สินค้า | MITUTOYO |
|---|---|
| Digital/Analog | Analog |

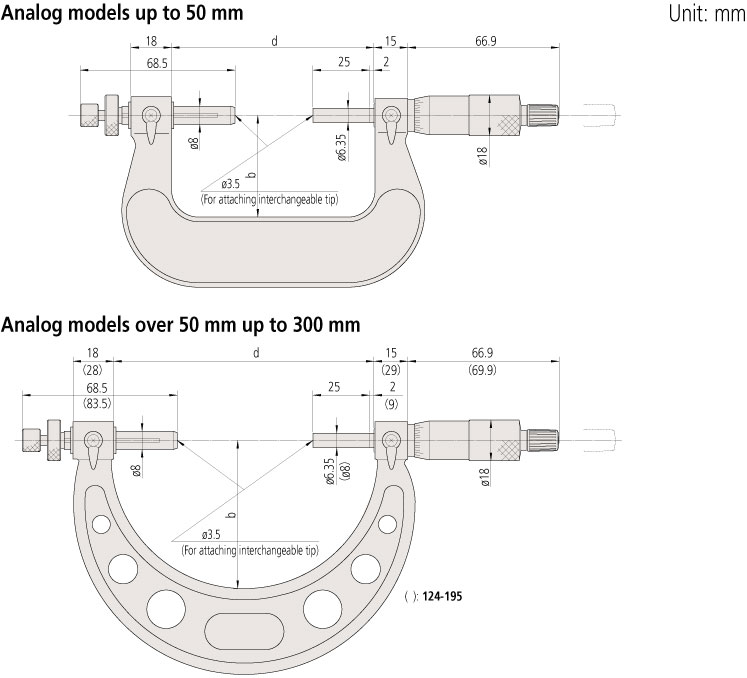

| Range (mm) | b | d |
| 0 - 25 | 32 | 64 |
| 25 - 50 | 45 | 89.5 |
| 50 - 75 | 65 | 115.1 |
| 75 - 100 | 79 | 140.1 |
| 100 - 125 | 93 | 165.1 |
| 125 - 150 | 105 | 190 |
| 150 - 175 | 118 | 214 |
| 175 - 200 | 131 | 240 |
| 200 - 225 | 144 | 265 |
| 225 - 250 | 156 | 290 |
| 250 - 275 | 169 | 314 |
| 275 - 300 | 187 | 352 |
