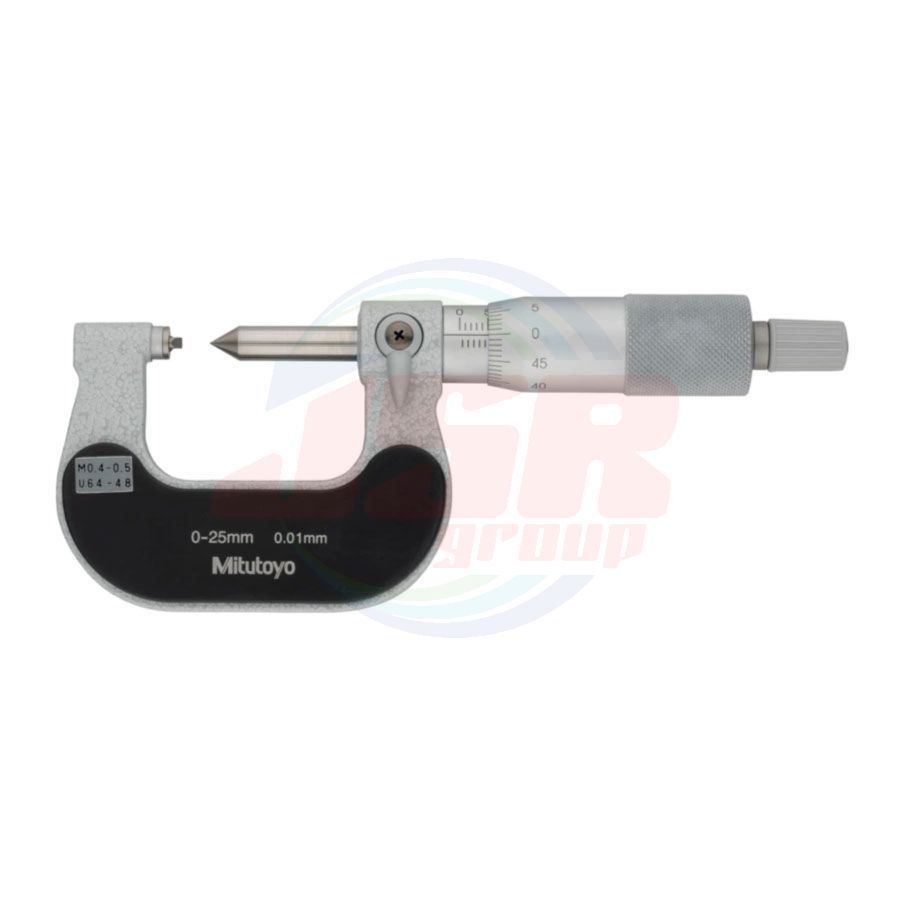

SERIES 125 | Screw Thread Micrometers| MITUTOYO
ราคาต่ำสุด
THB 0.00
THB 0.00
ราคาปรกติ
THB 3,871.26
พร้อมส่ง
SKU
1MIT-TP-125
• Directly indicates screw pitch diameter (no need for calculation).
• Fixed anvil type. Select the right model to meet the specifications of your screw thread.
• Equipped with Ratchet Stop for constant measuring force.
• Supplied with a setting standard for adjusting zero point for metric (unified) 60º threads.
SPECIFICATIONS
Metric
| Order No. | Thread to be measured (Metric / Unified) | Range (mm) | Spindle feed error (μm) | Graduation (mm) |
| 125-101 | 0.4 - 0.5 mm / 64 - 48 TPI | 0 - 25 | 3 | 0.01 |
| 125-102 | 0.6 - 0.9 mm / 44 - 28 TPI | |||
| 125-103 | 1 - 1.75 mm / 24 - 14 TPI | |||
| 125-104 | 2 - 3 mm / 13 - 9 TPI | |||
| 105-105 | 3.5 - 5 mm / 8 - 5 TPI | |||
| 125-106 | 0.4 - 0.5 mm / 64 - 48 TPI | 25 - 50 | ||
| 125-107 | 0.6 - 0.9 mm / 44 - 28 TPI | |||
| 125-108 | 1 - 1.75 mm / 24 - 14 TPI | |||
| 125-109 | 2 - 3 mm / 13 - 9 TPI | |||
| 125-110 | 3.5 - 5 mm / 8 - 5 TPI | |||
| 125-111 | 0.6 - 0.9 mm / 44 - 28 TPI | 50 - 75 | ||
| 125-112 | 1 - 1.75 mm / 24 - 14 TPI | |||
| 125-113 | 2 - 3 mm / 13 - 9 TPI | |||
| 125-114 | 3.5 - 5 mm / 8 - 5 TPI | |||
| 125-115 | 5.5 - 7 mm / 4.5 - 3.5 TPI | |||
| 125-116 | 0.6 - 0.9 mm / 44 - 28 TPI | 75 - 100 | ||
| 125-117 | 1 - 1.75 mm / 24 - 14 TPI | |||
| 125-118 | 2 - 3 mm / 13 - 9 TPI | |||
| 125-119 | 3.5 - 5 mm / 8 - 5 TPI | |||
| 125-120 | 5.5 - 7 mm / 4.5 - 3.5 TPI |
• Standard Accessories: Spanner (301336), 1 pc.
Note: A matching setting standard is supplied with each model (except for 0 to 25 mm measuring range). (Refer to page 02-73 for details.) The setting standard is for metric threads (unified) 60°.
| แบรนด์สินค้า | MITUTOYO |
|---|---|
| Digital/Analog | Analog |
| Inch-Metric | Metric |

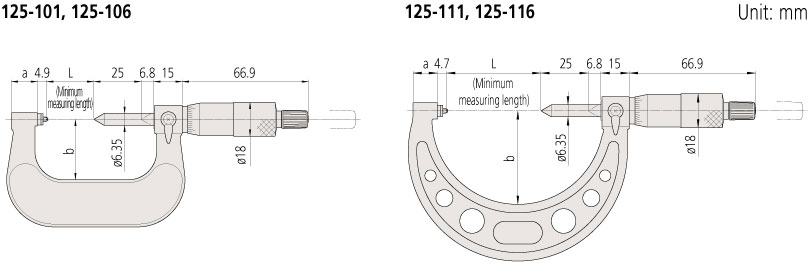

| Rnage (mm) | L | a | b |
| 0 - 25 | 0 | 13.8 | 25 |
| 25 - 50 | 25 | 13.8 | 32 |
| 50 - 75 | 50 | 12 | 49 |
| 75 - 100 | 75 | 14 | 63 |
