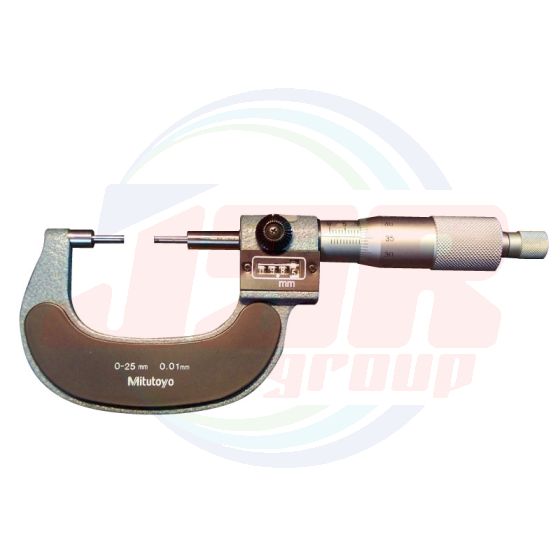

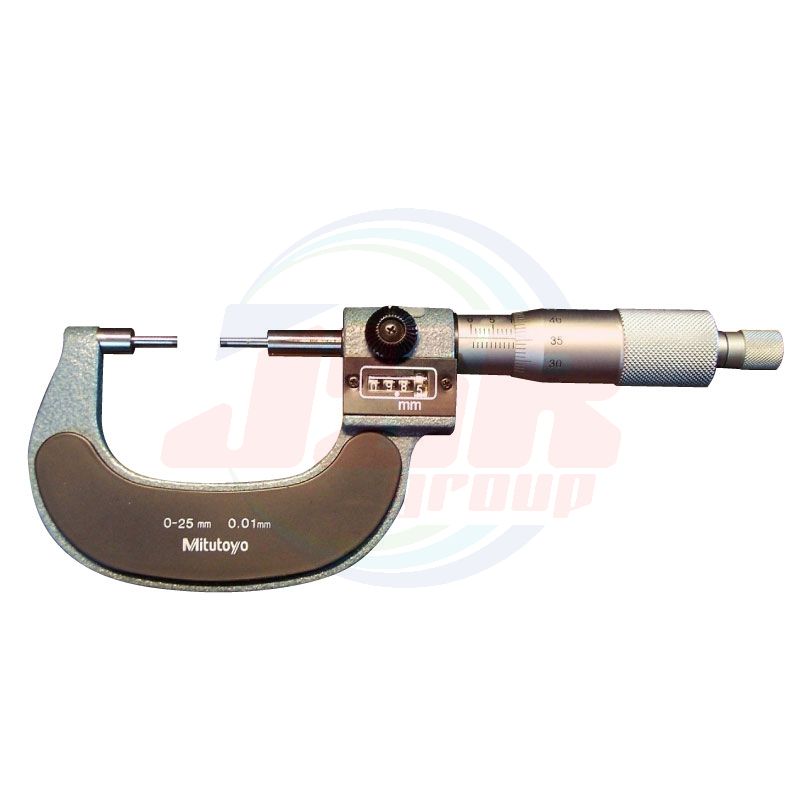

SERIES 131 | Spline Micrometers | MITUTOYO
ราคาต่ำสุด
THB 0.00
THB 0.00
ราคาปรกติ
THB 6,454.24
พร้อมส่ง
SKU
1MIT-SPM-K-131
• The anvil and spindle have a small diameter for measuring splined shafts, slots and keyways.
• Measuring faces: Carbide tipped
• Equipped with Ratchet Stop for constant measuring force.
SPECIFICATIONS
Metric
| Order No. | Range (mm) |
Graduation (mm) |
Maximum permissible error JMPE (µm) |
Flatness (µm) |
Parallelism (µm) |
Measuring face |
| 131-115 | 0 - 25 | 0.01 | ±3 | 0.3 | 2 | Type A |
• Standard accessories: Setting standard, 1 pc. (except for measuring range 0 to 25 mm (0 to 1 in) models), Spanner (301336), 1 pc.
| แบรนด์สินค้า | MITUTOYO |
|---|---|
| Inch-Metric | Metric |
| Digital/Analog | Mechanical counter |
