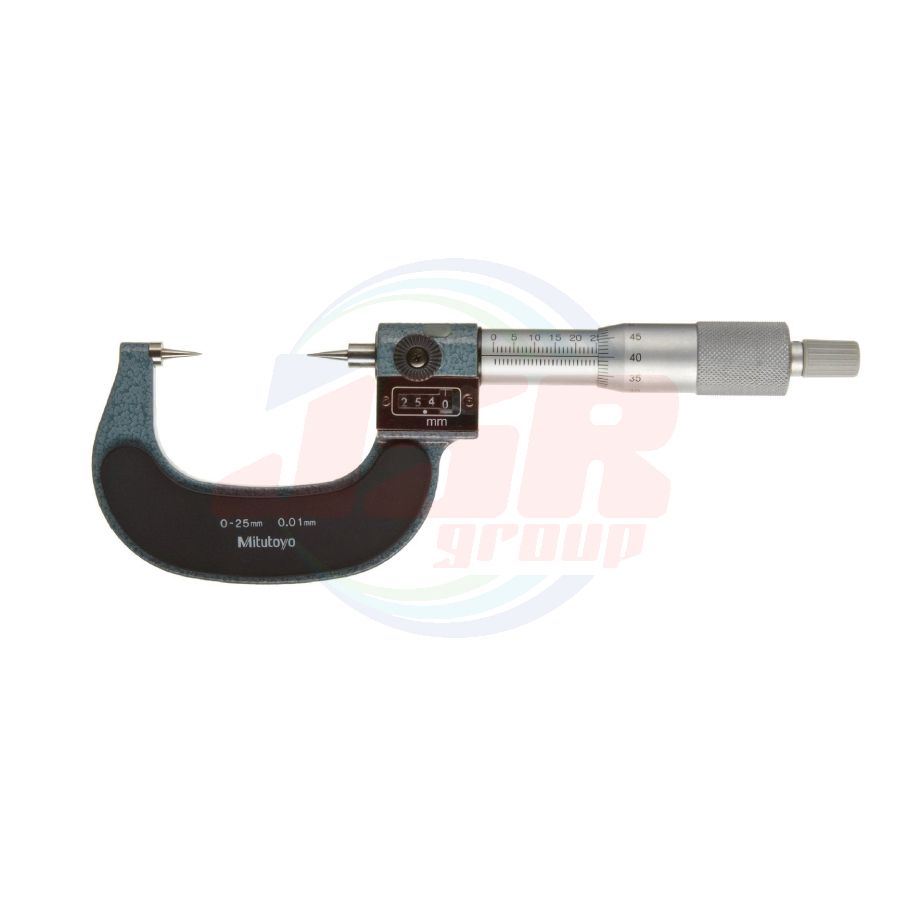

SERIES 142| Point Micrometer | MITUTOYO
ราคาต่ำสุด
THB 0.00
THB 0.00
ราคาปรกติ
THB 5,089.99
พร้อมส่ง
SKU
1MIT-CPM-K-142
• Pointed spindle and anvil for measuring the web thickness of drills, small grooves, keyways, and other hard-to-reach dimensions.
• The measuring points have approximately 0.3 mm radius.
• Carbide measuring tips are also available.
• Equipped with Ratchet Stop for constant measuring force.
SPECIFICATIONS
Metric
| Order No. | Range (mm) |
Graduation (mm) |
Maximum permissible error JMPE (µm) |
Point |
| 142-153 | 0 - 25 | 0.01 | ±3 | 15º |
| 142-201 | 30º |
• Standard accessories: Setting standard, 1 pc. (except for measuring range 0 to 25 mm (0 to 1 in) models), Spanner (301336), 1 pc.
| แบรนด์สินค้า | MITUTOYO |
|---|---|
| Digital/Analog | Mechanical counter |
| Inch-Metric | Metric |
