SERIES 146 | Groove Micrometers | MITUTOYO
ราคาต่ำสุด
THB 0.00
THB 0.00
ราคาปรกติ
THB 8,113.81
พร้อมส่ง
SKU
1MIT-GVM-NR-146
• Flanged spindle and anvil for measuring width and location of grooves inside bores and tubes. • Two-directional ratchet stop.
• For OD (except for 0 - 25 mm) and ID measurements, a master gage is required for adjusting the reference point.
• Non-rotating spindle.
SPECIFICATIONS
Metric
| Order No. | Range Inside (mm) |
Range Outside (mm) |
Graduation (mm) |
Maximum permissible error JMPE (µm) |
Parallelism (µm) |
Flange (mm) |
| 146-221 | 1.6 - 26.5 | 0 - 25 | 0.01 | ±10 | 10 | ø6.35 |
| 146-222 | ø12.7 | |||||
| 146-223 | 26.5 - 51.5 | 25 - 50 | ||||
| 146-224 | 51.5 - 76.5 | 50 - 75 | ||||
| 146-225 | 76.5 - 101.5 | 75 - 100 |
• Standard accessories: Spanner (301336), 1 pc.
| แบรนด์สินค้า | MITUTOYO |
|---|---|
| Inch-Metric | Metric |
| Digital/Analog | Analog |

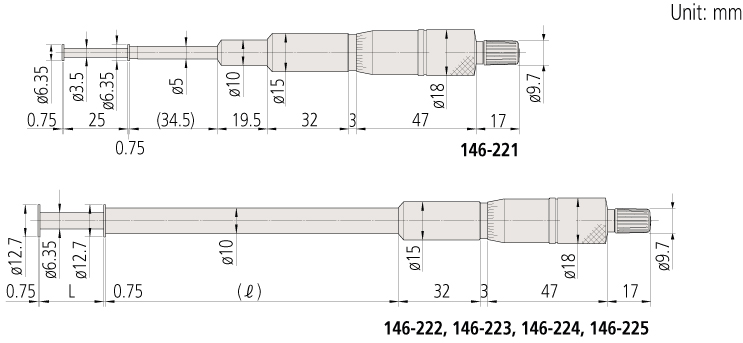

| L | (ℓ) |
| 25 | (115) |
| 50 | (90) |
| 75 | (65) |
| 100 | (40) |
