SERIES 160 | Vernier Caliper Nib Style Jaw | Mitutoyo
สินค้าหมด
SKU
1MIT-VCNSJF
A Mitutoyo dual-scale vernier caliper equipped with a fine-adjustment wheel and special nib-style jaws. Hardened stainless steel construction with easy-to-read, satin-chromed scales.
SPECIFICATIONS
Metric (with inside measurement Vernier scale)
| Code No. | Range (mm)*1 | Minimum reading (mm) |
Maximum permissible error (mm)*2 | Remarks | |
| E MPE | S MPE | ||||
| 160-130 | 0 (20.1) - 450 | 0.05 | ±0.10 | ±0.10 | without fine adjustment |
| 160-131 | 0 (20.1) - 600 | ||||
| 160-132 | 0 (20.1) - 1000 | ±0.15 | ±0.15 | ||
*1 ( ): Minimum dimension in ID measurement
*2 The Partial Surface Contact Error (E MPE) and Shift Error (S MPE) are terms defined by ISO 13385-1:2019.
Metric (with inside measurement Vernier scale)
| Code No. | Range (mm)*1 | Minimum reading (mm) |
Maximum permissible error (mm)*2 | Remarks | |
| E MPE | S MPE | ||||
| 160-127 | 0 (10.1) - 300 | 0.02 | ±0.04 | ±0.04 | without fine adjustment |
| 160-128 | 0 (20.1) - 450 | ±0.05 | ±0.05 | ||

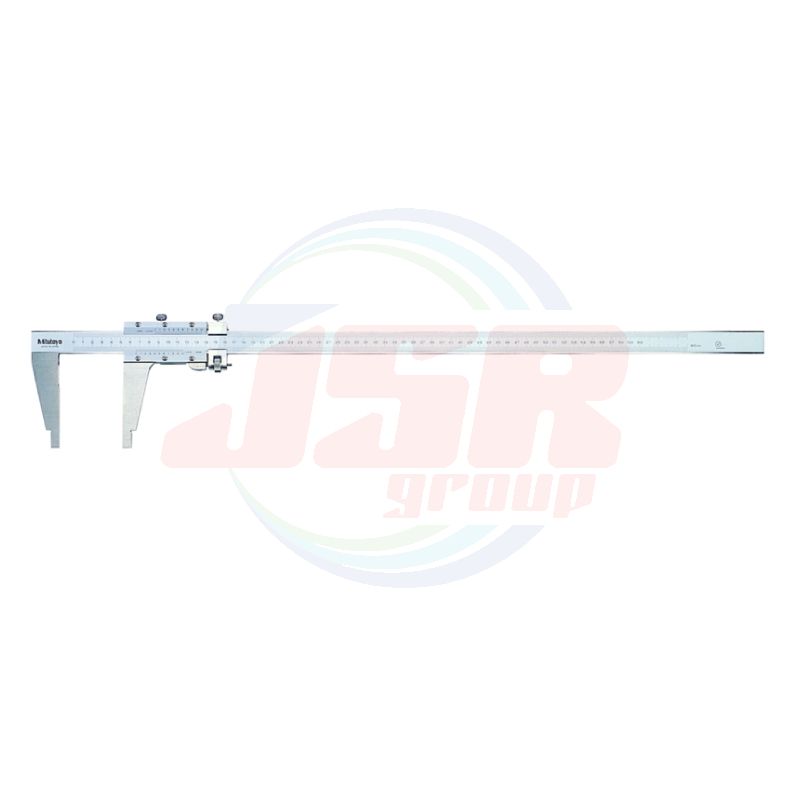

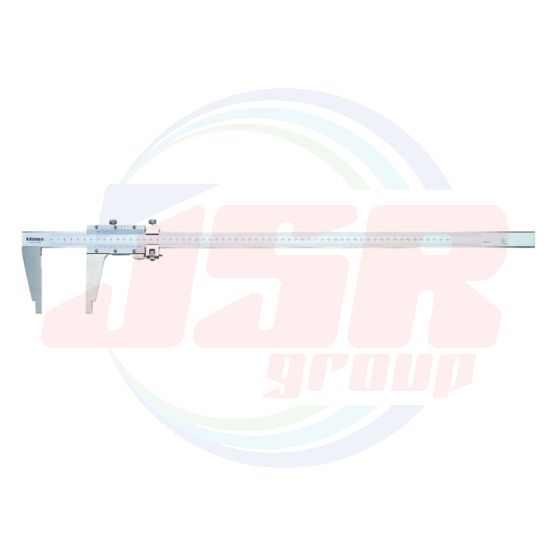

| 160-101 | 0 (20.1) - 600 | ||||
| 160-104 | 0 (20.1) - 1000 | ±0.07 | ±0.07 | ||
*1 ( ): Minimum dimension in ID measurement
*2 The Partial Surface Contact Error (E MPE) and Shift Error (S MPE) are terms defined by ISO 13385-1:2019.
Metric/Inch (with metric / inch double scale)
| Code No. | Range (mm)*1 | Minimum reading (mm) |
Maximum permissible error (mm)*2 | Remarks | |
| E MPE | S MPE | ||||
| 160-150 | 0 - 300 mm/0 - 12 in (10.1 - 300 mm/0.398 - 12 in) |
0.02 mm/ 0.001 in |
±0.04 mm/ ±0.0015 in |
±0.04 mm/ ±0.0015 in |
+10 mm/0.394 in to reading in inside measurement |
| 160-151 | 0 - 450 mm/0 - 18 in (20.1 - 450 mm/0.791 - 18 in) |
±0.05 mm/ ±0.002 in |
±0.05 mm/ ±0.002 in |
+20 mm/0.787 in to reading in inside measurement | |
| 160-153 | 0 - 600 mm/0 - 24 in (20.1 - 600 mm/0.791 - 24 in) |
||||

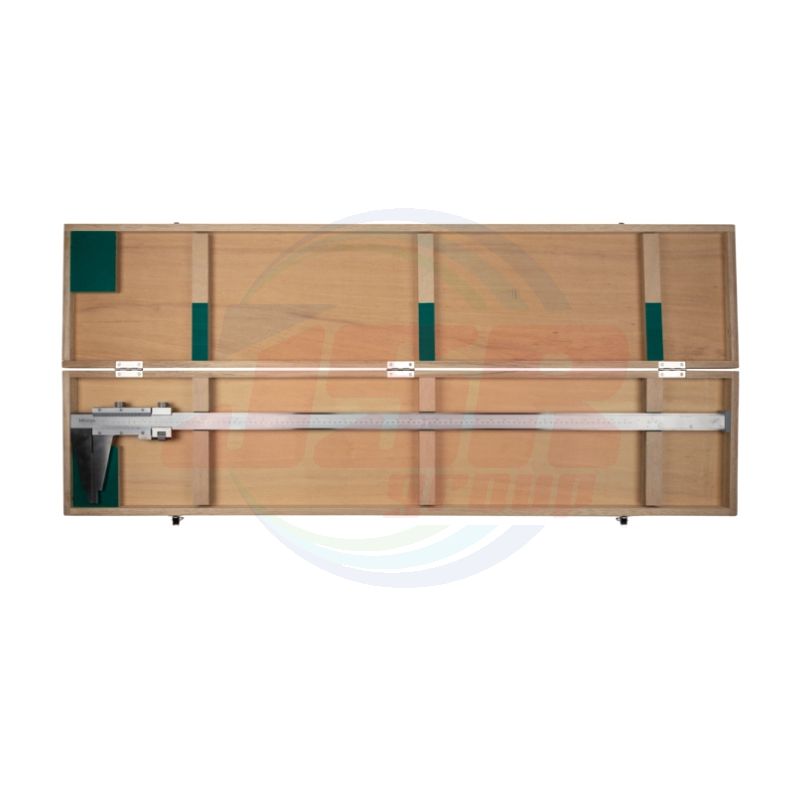

| 160-155 | 0 - 1000 mm/0 - 40 in (20.1 - 1000 mm/0.791 - 24 in) |
±0.07 mm/ ±0.003 in |
±0.07 mm/ ±0.003 in |
||
*1 ( ): Minimum dimension in ID measurement
*2 The Partial Surface Contact Error (E MPE) and Shift Error (S MPE) are terms defined by ISO 13385-1:2019.
Inch (with inside measurement Vernier scale)
| Code No. | Range (mm)*1 | Minimum reading (mm) |
Maximum permissible error (mm)*2 | Remarks | |
| E MPE | S MPE | ||||
| 160-124 | 0 (0.304) - 12 | 0.001 | ±0.0015 | ±0.0015 | — |
| 160-116 | 0 (0.504) - 18 | ±0.002 | ±0.002 | ||
| 160-102 | 0 (0.504) - 24 | ||||
| 160-105 | 0 (1.004) - 40 | ±0.003 | ±0.003 | ||
*1 ( ): Minimum dimension in ID measurement
*2 The Partial Surface Contact Error (E MPE) and Shift Error (S MPE) are terms defined by ISO 13385-1:2019.
Inch/Metric (with inch/metric double scale)
| Code No. | Range (mm)*1 | Minimum reading (mm) |
Maximum permissible error (mm)*2 | Remarks | |
| E MPE | S MPE | ||||

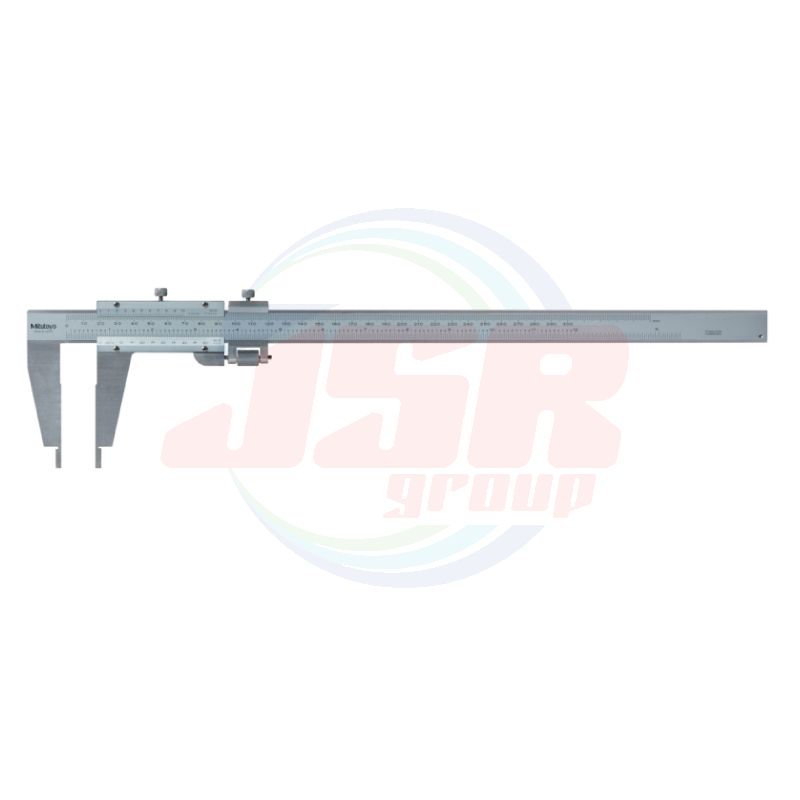

| 160-125 | 0 - 12 in/0 - 300 mm (0.304 - 12 in/7.72 - 300 mm) |
0.001 in/ 0.02 mm |
±0.0015 in/ ±0.04 mm |
±0.0015 in/ ±0.04 mm |
+0.3 in/7.62 mm to reading in inside measurement |

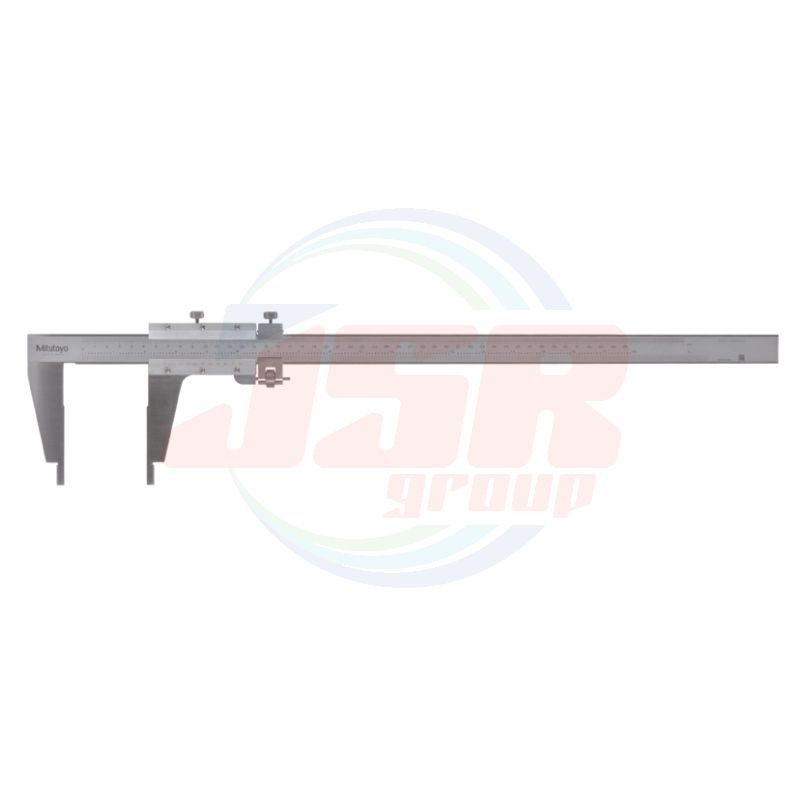

| 160-119 | 0 - 18 in/0 - 450 mm (0.504 - 18 in/12.8 - 450 mm) |
±0.002 in/ ±0.05 mm |
±0.002 in/ ±0.05 mm |
+0.5 in/12.7 mm to reading in inside measurement | |
| 160-103 |
0 - 24 in/0 - 600 mm (0.504 - 24 in/12.8 - 600 mm) |
||||
| 160-106 | 0 - 40 in/0 - 1000 mm (1.004 - 40 in/25.5 - 1000 mm) |
±0.003 in/ ±0.07 mm |
±0.003 in/ ±0.07 mm |
+1 in/25.4 mm to reading in inside measurement |
|
*1 ( ): Minimum dimension in ID measurement
*2 The Partial Surface Contact Error (E MPE) and Shift Error (S MPE) are terms defined by ISO 13385-1:2019.
| แบรนด์สินค้า | MITUTOYO |
|---|
