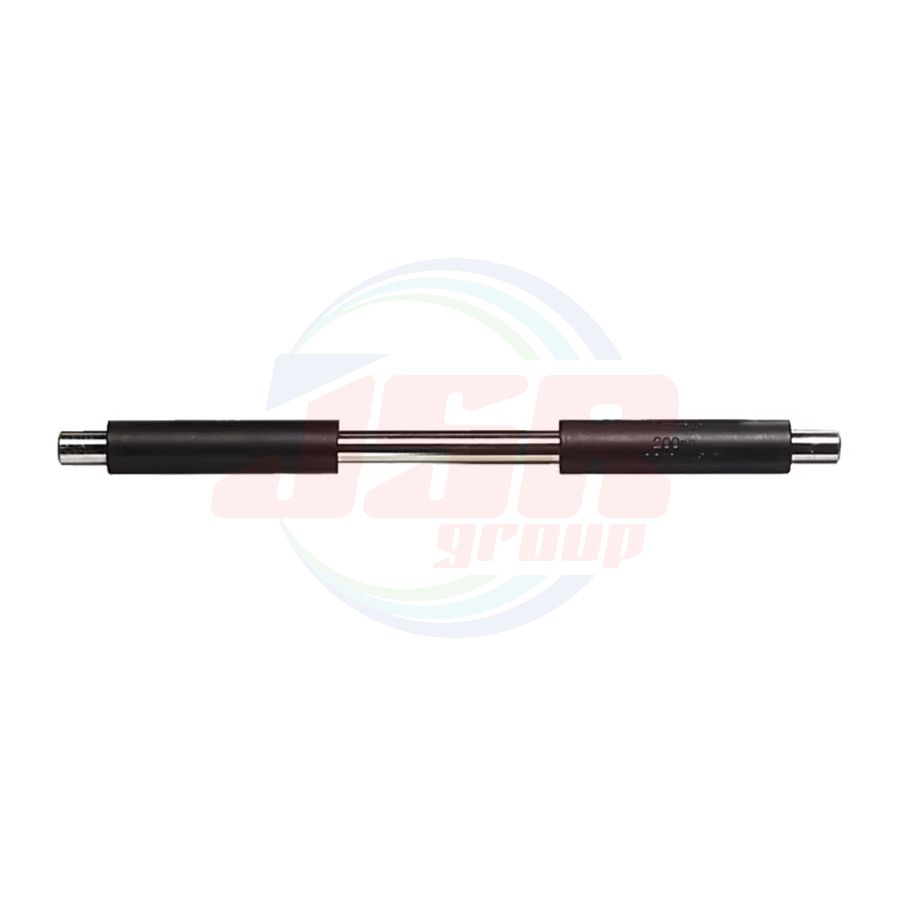

SERIES 167 | Setting Standards for Outside Micrometers | MITUTOYO
ราคาต่ำสุด
THB 0.00
THB 0.00
ราคาปรกติ
THB 545.70
พร้อมส่ง
SKU
1MIT-MB-167
• Used for setting the zero point on outside
micrometers.
Metric
| Order No. | Length <L> (mm) |
Accuracy (µm) |
Parallelism (µm) |
Flatness (µm) |
ℓ
|
Diameter <D> (mm) |
| 167-101 | 25 | ±1.5 | 2.0 | 3.0 | 18 | 6.35 |
| 167-102 | 50 | ±2.0 | 40 | |||
| 167-103 | 75 | ±2.5 | 40 |
| Order No. | Length <L> (mm) |
Accuracy (µm) |
Parallelism (µm) |
Flatness (µm) |
Diameter <D> (mm) |
| 167-104 | 100 | ±3 | 2.0 | 0.3 | 7.9 |
| 167-105 | 125 | ±3.5 | |||
| 167-106 | 150 | ±4 | |||
| 167-108 | 175 | ±4.5 |
| Order No. | Length <L> (mm) |
Accuracy (µm) |
Parallelism (µm) |
Flatness (µm) |
ℓ
|
Diameter <D> (mm) |
| 167-108 | 200 | ±5.0 | 2.0 | 0.3 | 47 | 9.4 |
| 167-109 | 225 | ±5.5 | 47 | |||
| 167-110 | 250 | ±6.0 | 52 | |||
| 167-111 | 275 | ±6.5 | 57 | |||
| 167-112 | 300 | ±7.0 | 64 | |||
| 167-113 | 325 | ±7.5 | 69 | |||
| 167-114 | 350 | ±8.0 | 74 | |||
| 167-115 | 375 | ±8.5 | 80 | |||
| 167-116 | 400 | ±9.0 | 85 | |||
| 167-117 | 425 | ±9.5 | 90 | |||
| 167-118 | 450 | ±10.0 | 95 | |||
| 167-119 | 475 | ±10.5 | 101 |
| Order No. | Length <L> (mm) |
Accuracy (µm) |
Parallelism (µm) |
Flatness (µm) |
ℓ
|
Diameter <D> (mm) |
| 167-120 | 500 | ±11 | 2.0 | 0.3 | 106 | 11.9 |
| 167-121 | 525 | ±11.5 | 112 | |||
| 167-122 | 550 | ±12 | 117 | |||
| 167-123 | 575 | ±12.5 | 122 | |||
| 167-124 | 600 | ±13 | 128 | |||
| 167-125 | 625 | ±13.5 | 133 | |||
| 167-126 | 650 | ±14 | 138 | |||
| 167-127 | 675 | ±14.5 | 142 | |||
| 167-128 | 700 | ±15 | 147 | |||
| 167-129 | 725 | ±15.5 | 153 | |||
| 167-130 | 750 | ±16 | 158 | |||
| 167-131 | 775 | ±16.5 | 164 | |||
| 167-132 | 800 | ±17 | 170 | |||
| 167-133 | 825 | ±17.5 | 175 | |||
| 167-134 | 850 | ±18 | 180 | |||
| 167-135 | 875 | ±18.5 | 185 | |||
| 167-136 | 900 | ±19 | 191 | |||
| 167-137 | 925 | ±19.5 | 196 | |||
| 167-138 | 950 | ±20 | 201 | |||
| 167-139 | 975 | ±20.5 | 207 | |||
| 167-140 | 1000 | ±21 | 211 | |||
| 167-365 | 1025 | ±21.5 | 217 | |||
| 167-366 | 1050 | ±22 | 222 | |||
| 167-367 | 1075 | ±22.5 | 227 | |||
| 167-368 | 1100 | ±23 | 232 | |||
| 167-369 | 1125 | ±23.5 | 238 | |||
| 167-370 | 1150 | ±24 | 243 | |||
| 167-371 | 1175 | ±24.5 | 248 | |||
| 167-372 | 1200 | ±25 | 254 | |||
| 167-373 | 1225 | ±25.5 | 259 | |||
| 167-374 | 1250 | ±26 | 264 | |||
| 167-375 | 1275 | ±26.5 | 269 | |||
| 167-376 | 1300 | ±27 | 275 | |||
| 167-377 | 1325 | ±27.5 | 280 | |||
| 167-378 | 1350 | ±28 | 285 | |||
| 167-379 | 1375 | ±28.5 | 291 | |||
| 167-380 | 1400 | ±29 | 296 | |||
| 167-381 | 1425 | ±29.5 | 301 | |||
| 167-382 | 1450 | ±30 | 306 | |||
| 167-383 | 1475 | ±30.5 | 312 | |||
| 167-384 | 1500 | ±31 | 317 | |||
| 167-385 | 1520 | ±31.5 | 322 | |||
| 167-386 | 1550 | ±32 | 328 | |||
| 167-387 | 1575 | ±32.5 | 333 | |||
| 167-388 | 1600 | ±33 | 338 | |||
| 167-389 | 1625 | ±33.5 | 343 | |||
| 167-390 | 1650 | ±34 | 349 | |||
| 167-391 | 1675 | ±34.5 | 354 | |||
| 167-392 | 1700 | ±35 | 359 | |||
| 167-393 | 1725 | ±35.5 | 364 | |||
| 167-394 | 1750 | ±36 | 370 | |||
| 167-395 | 1775 | ±36.5 | 375 | |||
| 167-396 | 1800 | ±37 | 380 | |||
| 167-397 | 1825 | ±37.5 | 386 | |||
| 167-398 | 1850 | ±38 | 391 | |||
| 167-399 | 1875 | ±38.5 | 396 | |||
| 167-400 | 1900 | ±39 | 401 | |||
| 167-401 | 1925 | ±39.5 | 407 | |||
| 167-402 | 1950 | ±40 | 412 | |||
| 167-403 | 1975 | ±40.5 | 417 | |||
| 167-404 | 2000 | ±41 | 423 |
| แบรนด์สินค้า | MITUTOYO |
|---|---|
| Inch-Metric | Metric |
