SERIES 169 | Paper Thickness Micrometers — Non-rotating Spindle Type | MITUTOYO
ราคาต่ำสุด
THB 0.00
THB 0.00
ราคาปรกติ
THB 6,026.24
พร้อมส่ง
SKU
1MIT-PPM-B-169
• For paper thickness measurement.
• Non-rotating spindle eliminates torque on workpiece.

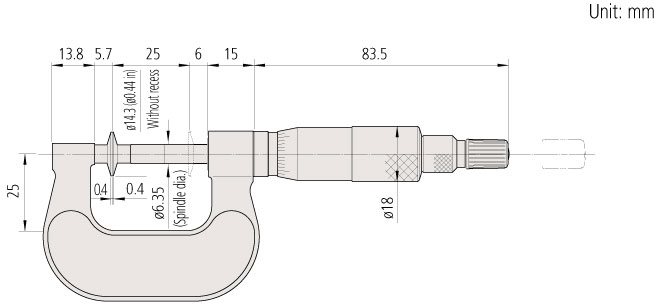

• Anvil diameter: ø14.3 mm (without recess)
• Equipped with Ratchet Stop for constant measuring force. (8.02±0.8 N)
SPECIFICATIONS
Metric
| Order No. | Range (mm) | Graduation (mm) | Maximum permissible error J MPE (µm) |
Flatness (µm) | Parallelism (µm) |
| 169-101-10 | 0 - 25 | 0.01 | ±4 | 1 | 3 |
• Standard accessories: Setting standard, 1 pc. (except for measuring range 0 to 25 mm (0 to 1 in) models)
Spanner (301336), 1 pc.
Note: Root tangent length measurement is not available for some types of gears.
| แบรนด์สินค้า | MITUTOYO |
|---|---|
| Digital/Analog | Analog |
