SERIES 169 | Disc Micrometers — Non-rotating Spindle Type | MITUTOYO
ราคาต่ำสุด
THB 0.00
THB 0.00
ราคาปรกติ
THB 6,026.24
พร้อมส่ง
SKU
1MIT-PDM-B-169

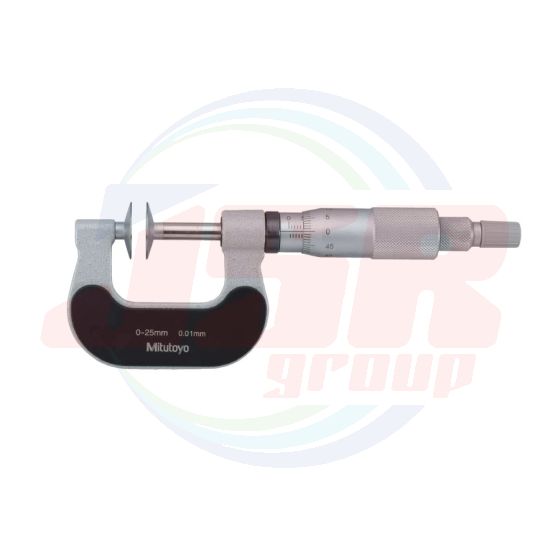

• Can be used for making root tangent measurements on spur gears and helical gears.
• Non-rotating spindle eliminates torque on workpiece.
• Measurable range of gear pitch: 0.5 to 6 module.
• Equipped with Ratchet Stop for constant measuring force.
SPECIFICATIONS
Metric
| Order No. | Range (mm) |
Graduation (mm) |
Anvil dia. (mm) |
Maximum permissible error J MPE (µm) |
Flatness (µm) |
Parallelism (µm) |
Measuring force (N) |
| 169-201-10 | 0 - 25 | 0.01 | ø20 | ±4 | 1 | 4 | 3 - 8 |
| 169-202-10 | 25 - 50 | ||||||
| 169-205-10 | 50 - 75 | ±6 | 6 | ||||
| 169-207-10 | 75 - 100 |
• Standard accessories: Setting standard, 1 pc. (except for measuring range 0 to 25 mm (0 to 1 in) models)
Spanner (301336), 1 pc.
Note: Root tangent length measurement is not available for some types of gears.
| แบรนด์สินค้า | MITUTOYO |
|---|---|
| Digital/Analog | Analog |

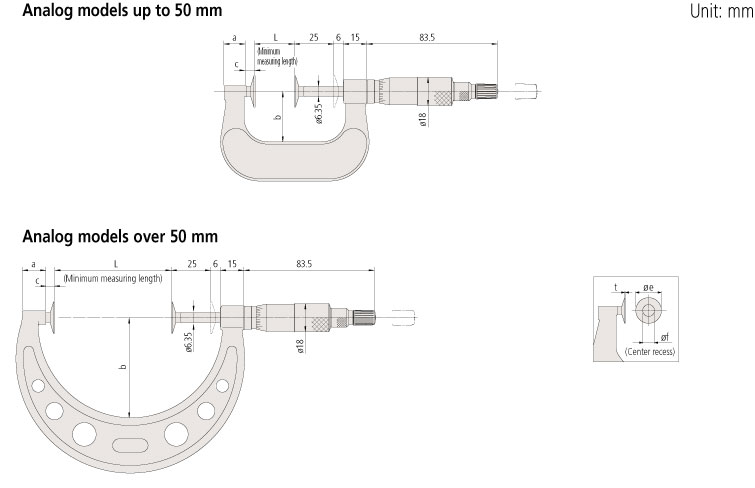

| Range (mm) | L | a | b | c | e | f | t |
| 0 - 25 | 0 | 13.8 | 25 | 5.7 | 20 | 8 | 0.7 |
| 25 - 50 | 25 | 13.8 | 32 | 5.7 | 20 | 8 | 0.7 |
| 50 - 75 | 50 | 12 | 49 | 5.5 | 20 | 8 | 0.7 |
| 75 - 100 | 75 | 14 | 63 | 5.5 | 20 | 8 | 0.7 |
