SERIES 215 — Granite Base Comparator Stands | MITUTOYO
ราคาต่ำสุด
THB 0.00
ราคาปรกติ
THB 12,887.85
พร้อมส่ง
SKU
BSG
• The plates are made of natural stone and will hardly deteriorate over time. (While the appearance of natural stone base varies according to the source, the high stability for which this material is known can always relied upon.)
• The rigid granite base is free from burrs and pileups due to its fine-grain composition and less viscousness compared with casting iron. The flatness is always accurate.

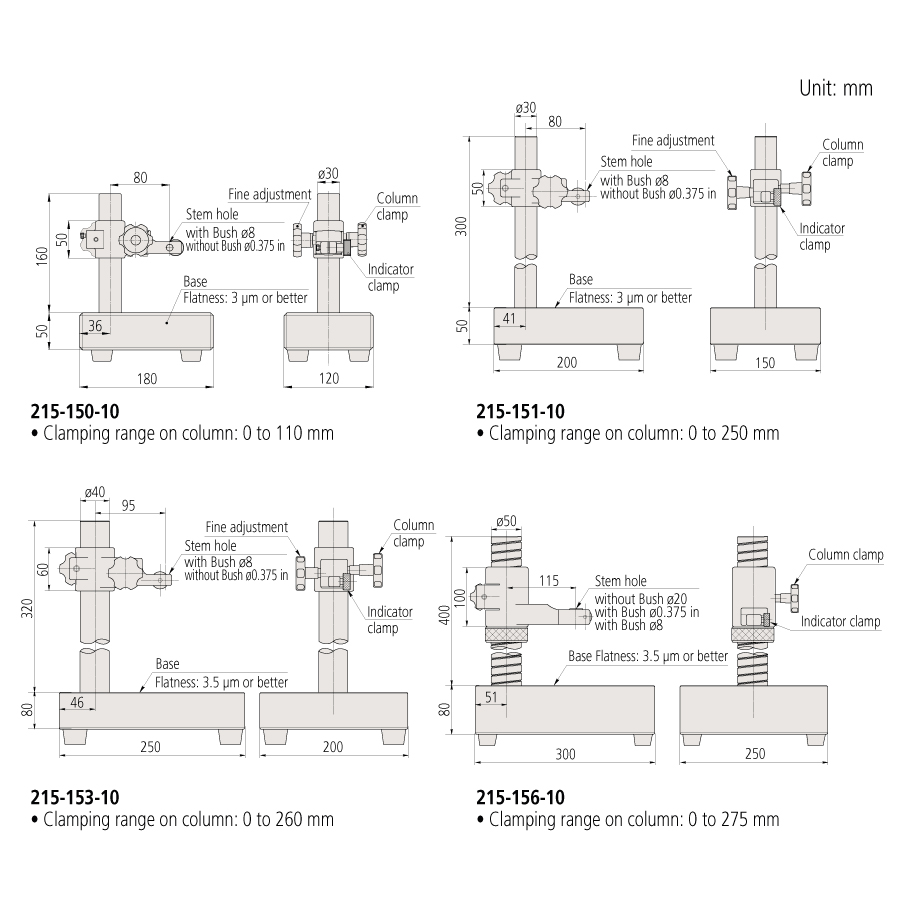

| Order No. | Granite base size (W×D×H) (mm) |
Clamping range on column (mm | Stem hole (mm) | Remarks |
| 215-150-10 | 120×180×50 | 0 to 110 | ø8, ø0.375 in | With fine adjustment of 1 mm range |
| 215-151-10 | 150×200×50 | 0 to 250 | ||
| 215-153-10 | 200×250×80 | 0 to 260 | ||
| 215-156-10 | 300×250×80 | 0 to 275 | ø8, ø0.375 in, ø20 | With fine adjustment over entire travel |
Note 1: Perpendicularity of the stem hole to the anvil is better than 0.2 mm/100 mm.
Note 2: Take note that when mounting high-accuracy Linear Gages (with resolution of 0.1 μm or better) to these stands accuracy may be affected depending on the perpendicularity of the mounting hole to the top surface of the anvil (cosine effect).
Note 3: Compact dial indicators (bezel ø31, ø36) are not suitable for use with these stands.
