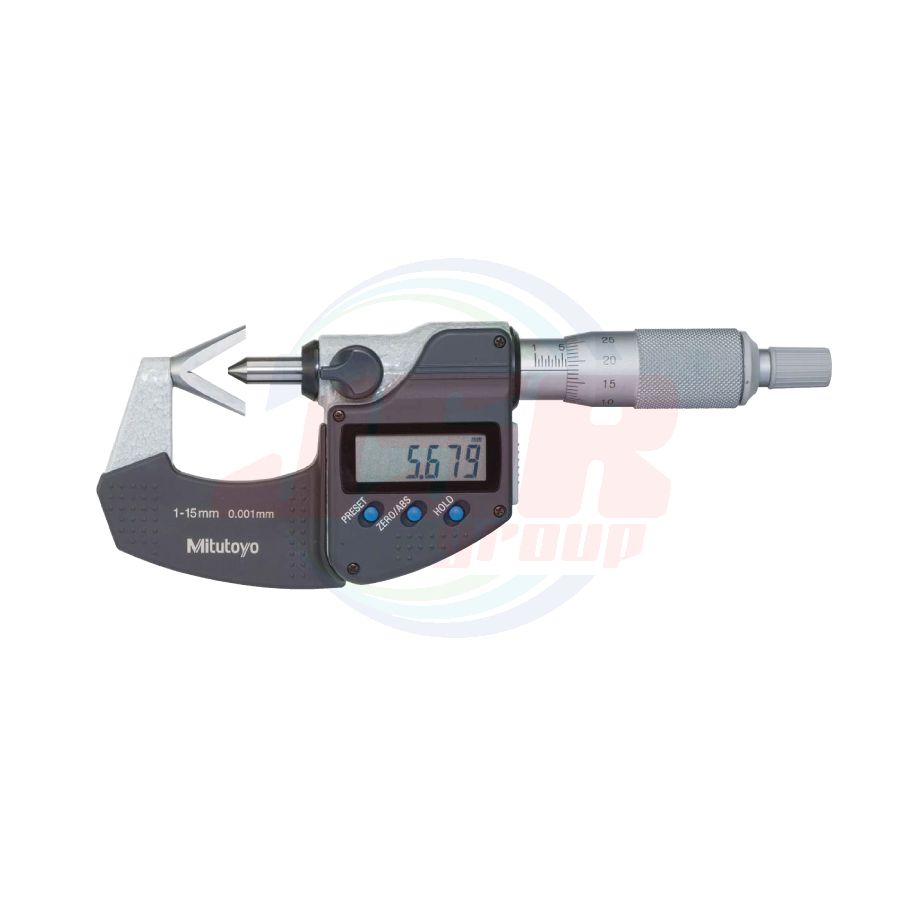

SERIES 314 | V-Anvil Micrometers — 3 Flutes | MITUTOYO
ราคาต่ำสุด
THB 0.00
THB 0.00
ราคาปรกติ
THB 14,917.94
พร้อมส่ง
SKU
1MIT-VM-MXP-314
• Measures the outside diameter of cutting tools (such as taps, reamers, end mills) with an odd number of flutes.
• Measuring faces: Carbide tipped
• Equipped with Ratchet Stop for constant measuring force.
SPECIFICATIONS
Metric__For 3-flute cutting tools
| Order No. | Range (mm) |
Resolution (mm) |
Maximum permissible error JMPE (µm) |
Anvil | Remarks |
| 314-251-30 | 1 - 15 | 0.001 | ±4 | 60º | w/groove |
| 314-252-30 | 10 - 25 | w/groove | |||
| 314-253-30 | 25 - 40 | ±5 | - | ||
| 314-261-30 | 1 - 15 | ±4 | - | ||
| 314-262-30 | 10 -25 | - |
Inch / Metric__For 3-flute cutting tools
| Order No. | Range (in) |
Resolution | Maximum permissible error JMPE (in) |
Anvil | Remarks |
| 314-351-30 | 0.05 - 0.6 | 0.00005 in/ 0.001 mm |
±0.0002 | w/groove | |
| 314-352-30 | 0.4 - 1 | w/groove | |||
| 314-353-30 | 1 - 1.6 | ±0.00025 | - | ||
| 314-361-30 | 0.05 - 0.6 | ±0.0002 | - | ||
| 314-362-30 | 0.4 - 1 | - |
• Flatness: 0.3 μm/0.000012 in (Spindle), 1.0 μm/0.00004 in (Anvil)
• Power source: SR44 battery (1 pc.), 938882 included as standard (for operational checks)
• Battery life: Approx. 2.4 years under normal use
• Position detection method: Electromagnetic rotary sensor
• Standard accessories: Spanner (301336), 1 pc. (for maximum measuring range up to 40 mm (1.6 in)),
Setting Standards for V-Anvil Micrometer
Note:
The models above use the same connection cables and connection units as our IP rated micrometers but these digital
V-Anvil Micrometers are not IP rated.
| แบรนด์สินค้า | MITUTOYO |
|---|---|
| Digital/Analog | Digital |
