SERIES 324 | Gear Tooth Micrometers — Interchangeable Ball Anvil/Spindle Tip Type | MITUTOYO
ราคาต่ำสุด
THB 0.00
THB 0.00
ราคาปรกติ
THB 13,508.75
พร้อมส่ง
SKU
1MIT-GMB-MX-324
• This specialized micrometer series measures gear over-pin diameters. Attach optional ball probes to each measuring face before use.
• Interchangeable ball anvils/spindle tips for various gear modules (0.5 to 5.25) are optional.
With SPC data output
SPECIFICATIONS
Metric
| Order No. | Range (mm) |
Resolution (mm) |
Spindle feed error (μm) |
| With SPC data output | |||
| 324-251-30 | 0 - 25 | 0.001 | 3 |
| 324-252-30 | 25 - 50 | ||
| 324-253-30 | 50 - 75 | ||
| 324-254-30 | 75 - 100 | ||
Inch / Metric
| Order No. | Range (in) |
Resolution | Spindle feed error (in) |
| With SPC data output | |||
| 324-351-30 | 0 - 1 | 0.00005 in/ 0.001 mm |
0.00015 |
| 324-352-30 | 1 - 2 | ||
| 324-353-30 | 2 - 3 | ||
| 324-354-30 | 3 - 4 | ||
• Power source: SR44 battery (1 pc.), 938882 included as standard (for operational checks)
• Battery life: Approx. 2.4 years under normal use
• Position detection method: Electromagnetic rotary sensor
• Standard accessories: Setting standard, 1 pc. (except for measuring range 0 to 25 mm (0 to 1 in) models), Spanner (301336), 1 pc.
| แบรนด์สินค้า | MITUTOYO |
|---|---|
| Digital/Analog | Digital |

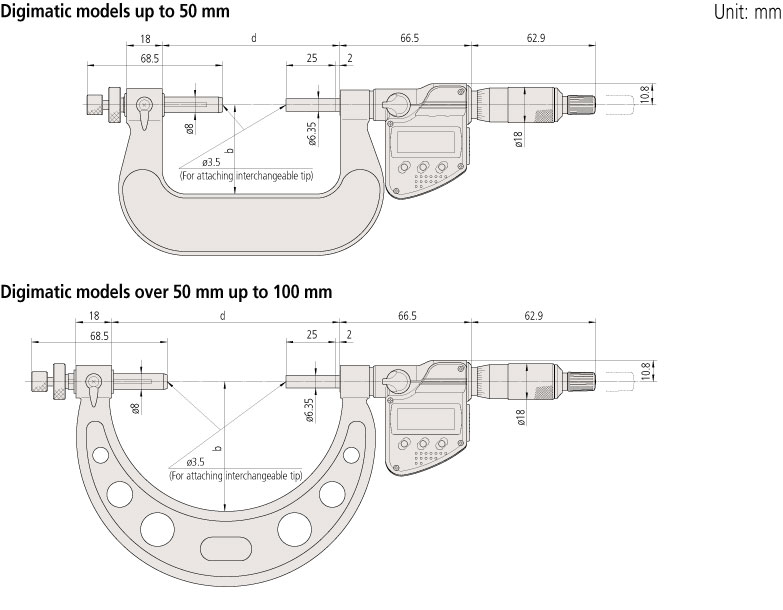

| Range (mm) | b | d |
| 0 - 25 | 32 | 64 |
| 25 - 50 | 45 | 89.5 |
| 50 - 75 | 65 | 115.1 |
| 75 - 100 | 79 | 140.1 |
