SERIES 395 | Tube Micrometers | MITUTOYO
ราคาต่ำสุด
THB 0.00
THB 0.00
ราคาปรกติ
THB 8,403.78
พร้อมส่ง
SKU
1MIT-BMS-MX-395

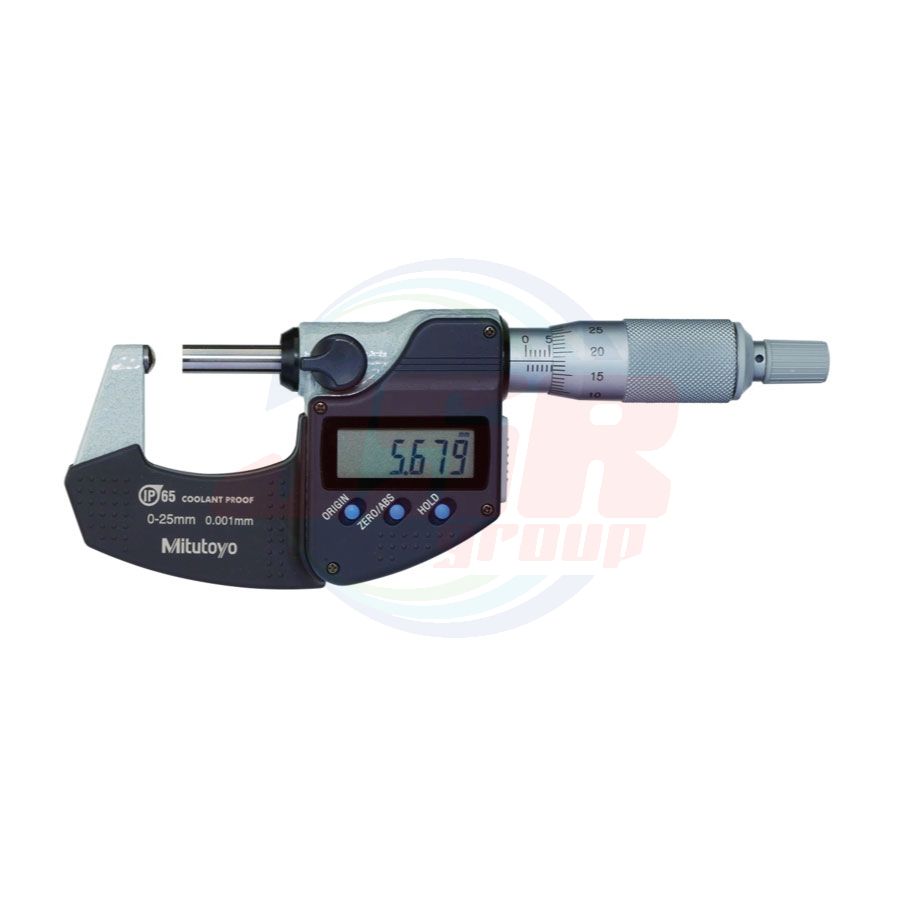

• The spherical anvil-type micrometer is convenient for measuring cylindrical workpieces. The spherical anvil comes into contact with a workpiece at a point instead of a surface area, thus increasing measurement accuracy.
• IP65 water / dust protection (series 395).
• Equipped with Ratchet Stop for constant measuring force.
SPECIFICATIONS
Metric
| Order No. | Range (mm) |
Resolution (mm) |
Maximum permissible error JMPE (µm) |
øD (mm) |
Flatness (µm) |
| 395-251-30 | 0 - 25 | 0.001 | ±2 | ø15 | 0.3 |
| 395-252-30 | 25 - 50 | ||||
| 395-253-30 | 50 - 75 | ø19 | |||
| 395-254-30 | 75 - 100 | ±3 | ø20 |
Inch / Metric
| Order No. | Range (in) |
Resolution | Maximum permissible error JMPE (in) |
øD (in) |
Flatness (in) |
| 395-351-30 | 0 - 1 | 0.00005 in/ 0.001 mm |
±0.0001 | ø0.59 | 0.000012 |
| 395-352-30 | 1 - 2 | ||||
| 395-353-30 | 2 - 3 | ø0.75 | |||
| 395-354-30 | 3 - 4 | ±0.00015 | ø0.79 |
• Power source: SR44 battery (1 pc.), 938882 included as standard (for operational checks)
• Battery life: Approx. 2.4 years under normal use
• Position detection method: Electromagnetic rotary sensor
• Standard accessories: Setting standard, 1 pc. (except for measuring range 0 to 25 mm (0 to 1 in) models), Spanner (301336), 1 pc.
| แบรนด์สินค้า | MITUTOYO |
|---|
| Range (mm) | D | b | c |
| 0 - 25 | 15 | 9 | 25 |
| 25 - 50 | 15 | 9.8 | 32 |
| 50 - 75 | 19 | 12.6 | 47 |
| 75 - 100 | 20 | 14 | 60 |
