SERIES 500 | Digital ABS Caliper CoolantProof IP67 | MITUTOYO
ราคาต่ำสุด
THB 0.00
THB 0.00
ราคาปรกติ
THB 5,285.80
พร้อมส่ง
SKU
1MIT-DCCIP67-S500
• Rated to IP67: can be used in workshopconditions exposed to coolant, water, dust or oil. The digital display can
reduce human error by preventing incorrect reading of measurement results.
• Incorporates Mitutoyo's ABSOLUTE
measurement system. No need to reset the origin after switching on. Eliminates overspeed errors.
• Battery cap
does not require a screw driver for battery replacement.
• SPC data output models can be integrated into
statistical process control and measurement systems. (Refer to page 09-3.)
• Carbide-tipped jaw calipers are
optimal for rough finished parts, castings, grindingstones, etc.

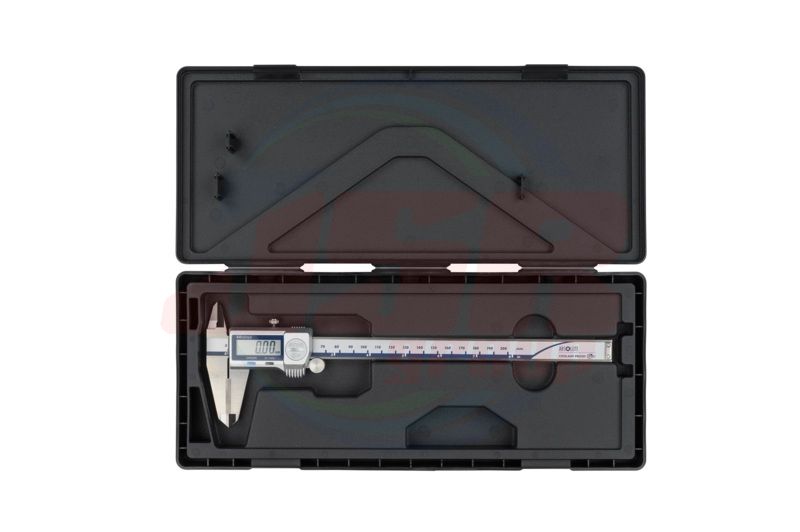

This IP67 ABSOLUTE digimatic caliper allows reliable measurements in a wide range of situations and offers you the following benefits:
- Excellent resistance against water and dust (IP67 protection level) enabling use in machining situations that include splashing coolant fluid
- It is dustproof, complies with EN60529 and withstands temporary complete immersion in water without suffering any damage.
- ABS (ABSOLUTE) scale requires no origin setting after power-on and has no limit to response speed.
SPECIFICATIONS
Metric
| Code No. | Range (mm) |
Resolution (mm) |
Maximum permissible error (mm)*1 | Measurement
data output port |
Mass (g) |
Thumb roller |
Remarks | |
| E MPE | S MPE | |||||||
| 500-702-20 *³ | 0 - 150 | 0.01 | ±0.02 | ±0.04 | — | 168 | ✔ | — |
| 500-703-20 *³ | 0 - 200 | 198 | ||||||
| 500-706-20 *³ | 0 - 150 | 168 | — | |||||
| 500-707-20 *³ | 0 - 200 | 198 | ||||||
| 500-709-20 | 0 - 150 | 168 | Depth bar ø1.9 mm | |||||
| 500-716-20 | ✔ | 168 | — | |||||
| 500-717-20 | 0 - 200 | 198 | ||||||
| 500-712-20 | 0 - 150 | 168 | ✔ | |||||
| 500-713-20 | 0 - 200 | 198 | ||||||
| 500-719-20 | 0 - 150 | 168 | Depth bar ø1.9 mm | |||||
| 500-721-20 | 0 - 150 | 168 | Carbide-tipped jaws for outside measurement | |||||
| 500-722-20 | 0 - 200 | 198 | ||||||
| 500-723-20 | 0 - 150 | 168 | Carbide-tipped jaws for outside and inside measurement | |||||
| 500-724-20 | 0 - 200 | 198 | ||||||
| 500-727-20 | 0 - 150 | 168 | — | |||||
| 500-728-20 | 0 - 200 | 198 | ||||||
| 500-714-20 | 0 - 150 | ±0.03 | ±0.05 | 350 | ✔ | — | ||
| 500-718-20 | 345 | — | ||||||
| 500-704-20 *³ | — | 350 | ✔ | |||||
| 500-708-20 *³ | 345 | — | ||||||
Inch/Metric
| Code No. | Range (mm) |
Resolution (mm) |
Maximum permissible error (mm)*1 | Measurement
data output port |
Mass (g) |
Thumb roller |
Remarks | |
| E MPE | S MPE | |||||||
| 500-720-20 | 0 - 6 in/0 - 150 mm | 0.0005 in / 0.01 mm |
±0.001 in / ±0.02 mm |
±0.002 in / ±0.04 mm |
✔ | 168 | — | Depth bar ø1.9 mm |
| 500-731-20 *³ | — | ✔ | Carbide-tipped jaws for outside measurement | |||||
| 500-732-20 *³ | 0 - 8 in/0 - 200 mm | 198 | ||||||
| 500-733-20 *³ | 0 - 6 in/0 - 150 mm | 168 | Carbide-tipped jaws for outside and inside measurement | |||||
| 500-734-20 *³ | 0 - 8 in/0 - 200 mm | 198 | ||||||
| 500-735-20 | 0 - 6 in/0 - 150 mm | ✔ | 168 | Carbide-tipped jaws for outside measurement | ||||
| 500-736-20 | 0 - 8 in/0 - 200 mm | 198 | ||||||
| 500-737-20 | 0 - 6 in/0 - 150 mm | 168 | Carbide-tipped jaws for outside and inside measurement | |||||
| 500-738-20 | 0 - 8 in/0 - 200 mm | 198 | ||||||
| 500-752-20 *³ | 0 - 6 in/0 - 150 mm | — | 168 | — | ||||
| 500-753-20 *³ | 0 - 8 in/0 - 200 mm | 198 | ||||||
| 500-762-20 | 0 - 6 in/0 - 150 mm | ✔ | 168 | |||||
| 500-763-20 | 0 - 8 in/0 - 200 mm | 198 | ||||||
| 500-768-20 *³ | 0 - 6 in/0 - 150 mm | — | 168 | Depth bar ø1.9 mm | ||||
| 500-769-20 | ✔ | 168 | Depth bar ø1.9 mm | |||||
| 500-764-20 | 0 - 12 in/0 - 300 mm | ±0.0015 in / ±0.03 mm |
±0.0025 in / ±0.05 mm |
✔ | 350 | ✔ | — | |
| 500-754-20 *³ | — | 350 | ||||||
• Dust / Water protection level: IP67 (IEC60529)*2
• Power source: SR44 battery (1 pc.), 938882
included as standard (for operational checks)
• Position detection method: ABSOLUTE electromagnetic induction
linear encoder
• Battery life: Approx. 5 years under normal use
• Response speed: Unlimited
• With depth
bar
*1 The Partial Surface Contact Error (E MPE) and Shift Error (S MPE) are terms defined by ISO
13385-1:2019.
*2 Although these models are IP67 rated, care should be taken to dry tool after use.
*3 Without
SPC data output.
