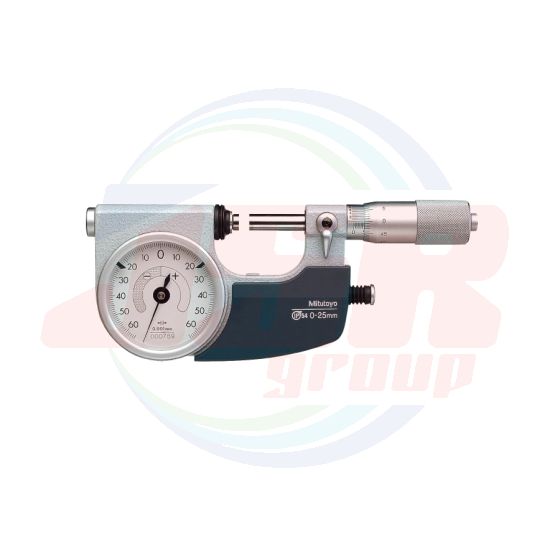

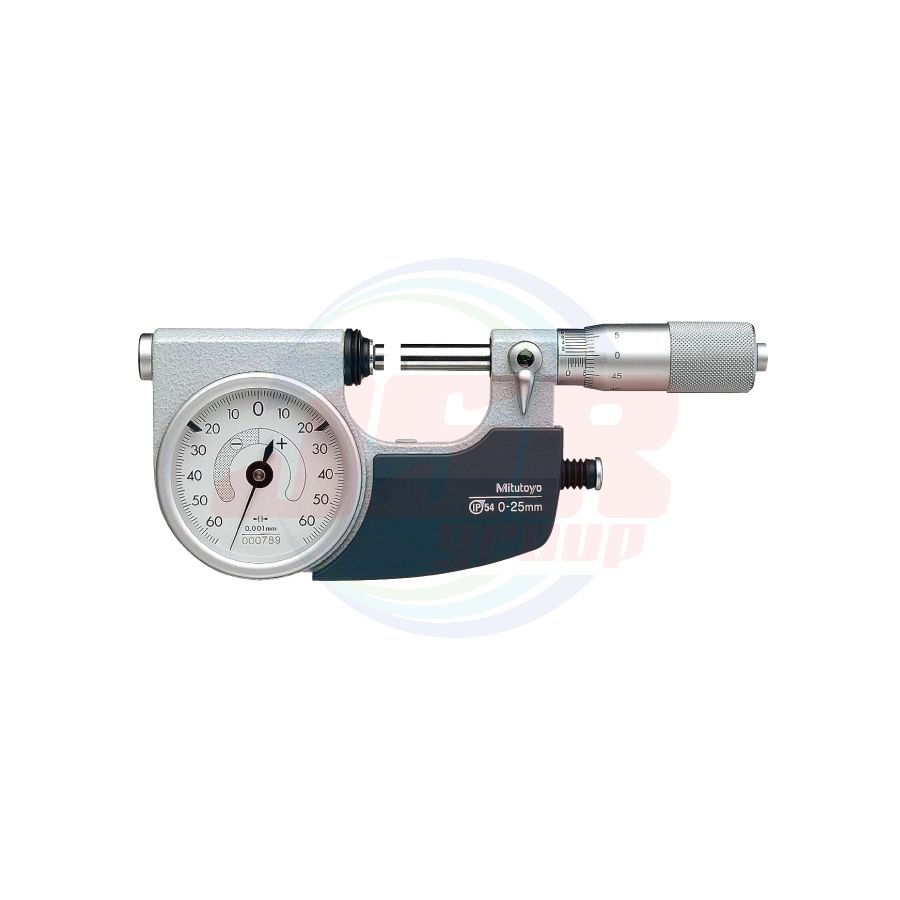

SERIES 510 | Indicating Micrometers - Right side | MITUTOYO
สินค้าหมด
SKU
1MIT-IDM-R-510
• The micrometer with a built-in dial indicator enables accurate Go/No-go judgement without interruption. Pushing the retractable anvil button causes the anvil and pointer to move, enabling speedy measurements.
• Easy to use when operating one-handed due to retractable anvil.
• In the 25 mm measuring range, models are available that offer left or right positioning of the anvil-retraction button.
• Greatly improved accuracy: indication error and graduation of 1 μm.
• IP protection level: 54, coolant-splash resistant during grinding process.
SPECIFICATIONS
Metric
| Order No. | 510-121 |
| Range (mm) | 0 - 25 |
| Spindle feed error (µm) | 3 |
| Flatness (µm) | 0.3 |
| Parallelism (µm) | 0.6 |
| Dispersion of indication (µm) | 0.4 |
| Dial indication accuracy (µm) | 1 |
| Indicating range (mm) | ±0.06 |
| Graduation (mm) | 0.001 |
| Dial graduation (mm) | 0.001 |
| Measuring force (N) | 5 - 10 |
| Anvil retraction button | Right side |
| Mass (g) | 520 |
• Standard Accessories: Spanner (200154), 1 pc.
| แบรนด์สินค้า | MITUTOYO |
|---|---|
| Inch-Metric | Metric |
| Digital/Analog | Dial |
