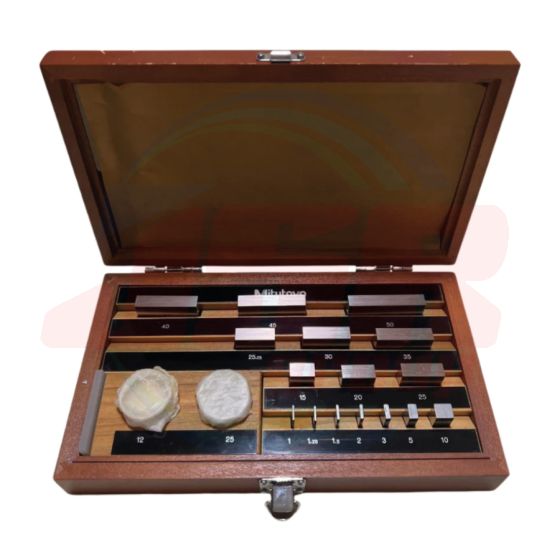

SERIES 516 | Micrometer Inspection Gauge Block Sets - 16 blocks per set | Mitutoyo
ราคาต่ำสุด
THB 0.00
ราคาปรกติ
THB 17,711.00
*ราคายังไม่รวม VAT
พร้อมส่ง
SKU
1MIT-BM16-516
QTY:
0
• Special sets for micrometer inspection. 516-106/107/108 and 516-156/157/158 are useful for checking maximum permissible error. For inspection of large micrometers, we recommend using 516-115/116/117 and 516-165/166/167 together. 516-580/581/582 and 516-390/391/392 are special sets for inspection of QuantuMike, whose spindle moves 2.0 mm per one thimble rotation.
SPECIFICATIONS
Metric Block Sets
| Blocks per set |
Order No. | Standard/grade available and Suffix No.*1 | Blocks included in set | |
| Steel | CERA | ISO / JIS | ||
| 16 | 516-111 516-112 516-113 |
516-161 516-162 516-163 |
0: -█0 1: -█0 2: -█0 |

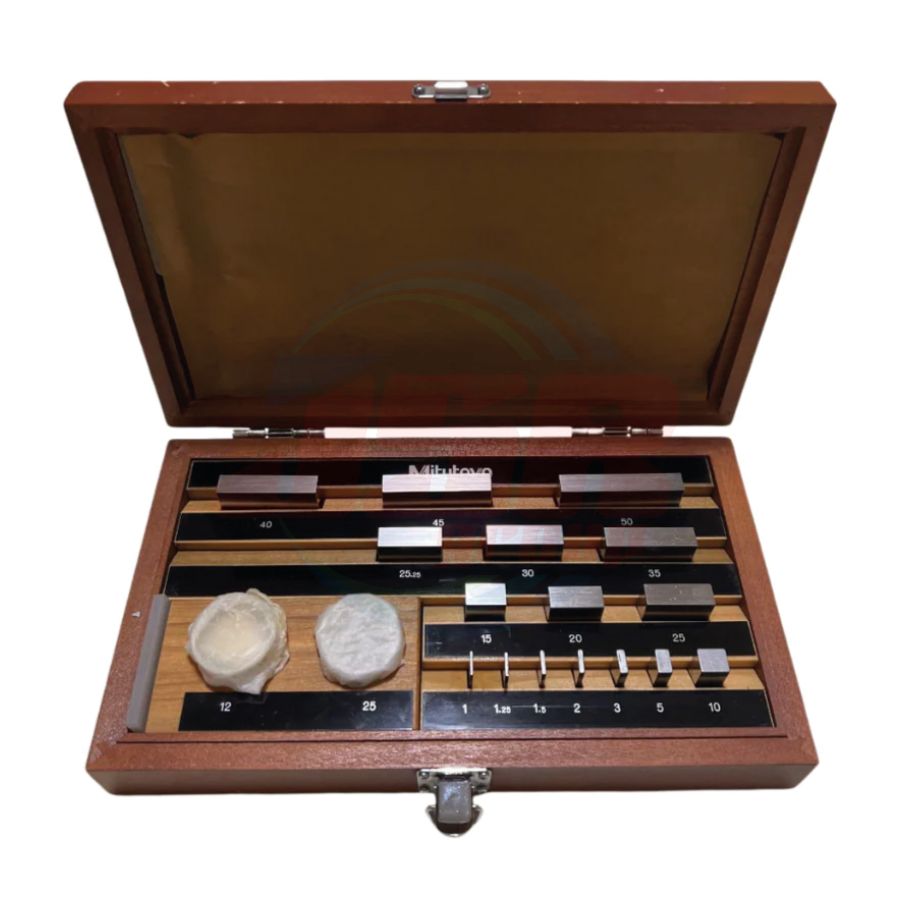

1.00, 1.25, 1.5, 2, 3, 5, 10, 15, 20, 25, 25.25, 30, 35, 40, 45, 50 mm, Cerastone, Optical parallels (t=12 mm, 25 mm) |
*1: Suffix No. ( █ ) for Selecting
Standard and Certificate Provided
ISO/JIS
| Suffix No. | Inspection Certificate | Calibration Certificate |
| JCSS | ||
| 1 | √ | |
| 6 | √ | √ |
Suffix No. 1: Not available for Grade K sets.
| แบรนด์สินค้า | MITUTOYO |
|---|---|
| Inch-Metric | Metric |
| Blocks per set | 16 |
