SERIES 516 | Rectangular Gauge Block Accessories | MITUTOYO

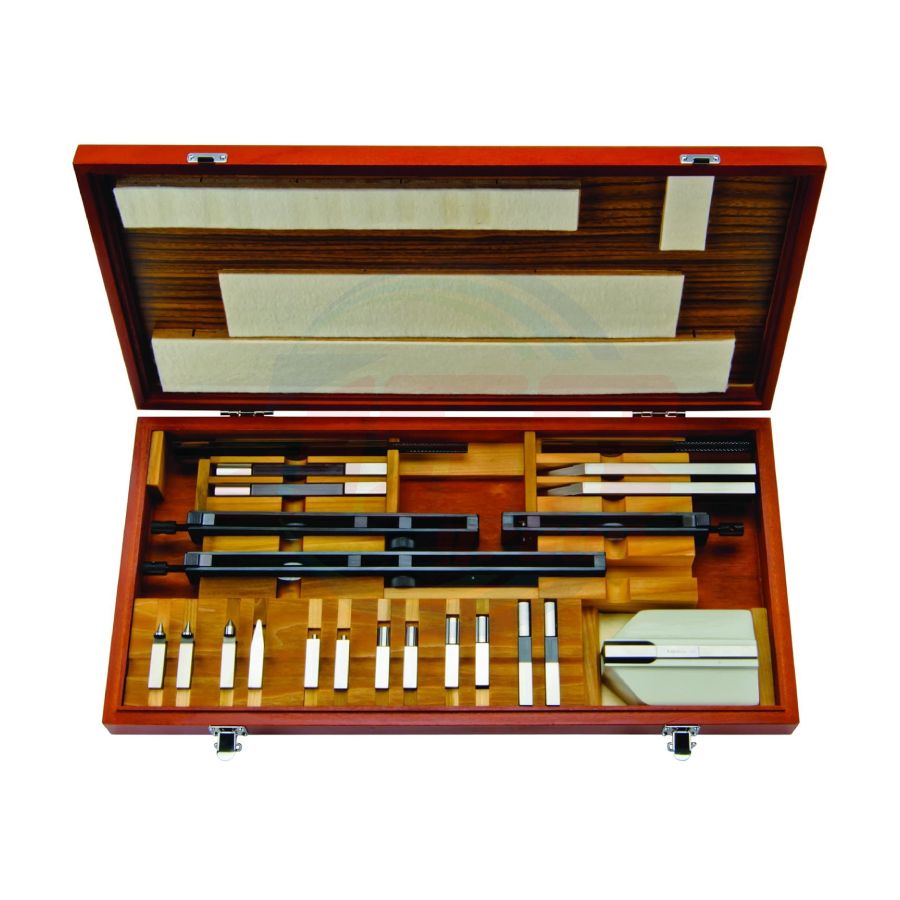

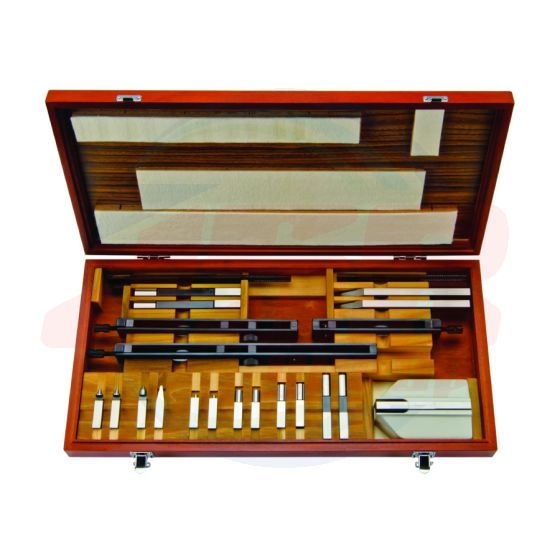

• Accessory sets for extending the range of application for rectangular gauge blocks.
• Available in 22-piece and 14-piece sets. Each accessory is also available separately for applications where a full set is not needed.
• Can be used with both steel and CERA blocks.
| Item Description | Code No. | Nominal capacity / dimension (mm) |
Order No. | Quantity Supplied | |
|
22 pcs. |
24 pcs. 516-602 |
||||
| Holder | 619002 | 15 to 60 | ✔ | 1 pc. | |
| 619003 | 5 to 100 | ✔ | ✔ | ||
| 619004 | 15 to 160 | ✔ | ✔ | ||
| 619005 | 20 to 250 | ✔ | ✔ | ||
| Base | 619009 | 35 | ✔ | ✔ | |
| Half-round jaw | 619010* | 2 | ✔ | ✔ | One pair (2 pcs.) |
| 619011* | 5 | ✔ | ✔ | ||
| 619012* | 8 | ✔ | ✔ | ||
| 619013* | 12 | ✔ | |||
| 619014* | 20 | ✔ | |||
| Plain jaw | 619018* | 160 | ✔ | ||
| Scriber point | 619019 | ̶ | ✔ | ✔ | 1 pc. |
| Center point | 619020 | ̶ | ✔ | ✔ | |
| Tram point | 619021* | ̶ | ✔ | One pair (2 pcs.) | |
| Triangular straightedge | 619022 | 100 | ✔ | ✔ | 1 pc. |
| 619023 | 160 | ✔ | |||
* A single piece is supplied for each code number, except for half-round jaws, plain jaws (B type) and tram points, which are
supplied as a two-pack.
| แบรนด์สินค้า | MITUTOYO |
|---|

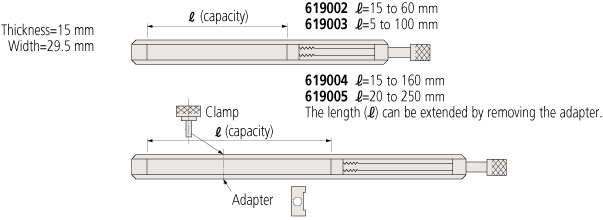

Holder

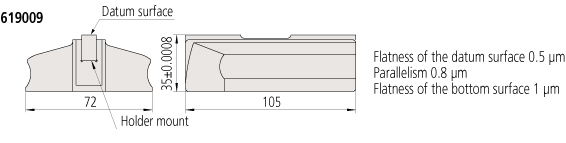

Base

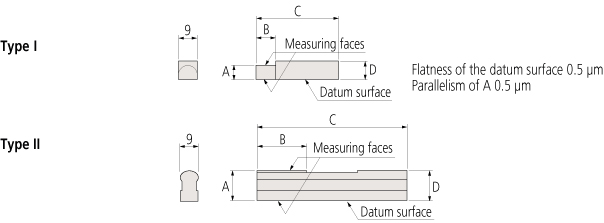

Half-round jaws
| Code No. | Type | Size (mm) | A (mm) | B (mm) | C (mm) | D (mm) |
| 619010* | I | 2 | 2±0.0005 | 5.5 | 40 | 7.5 |
| 619011* | 5 | 5±0.0005 | 15.5 | 45 | 7.5 | |
| 619012* | 8 | 8±0.0005 | 20 | 50 | 8.5 | |
| 619013* | II | 12 | 12±0.0005 | 25 | 75 | 13 |
| 619014* | 20 | 20±0.0005 | 25 | 125 | 20.5 |
Plain jaw (B type)
Scriber point
Center Point
Tram point

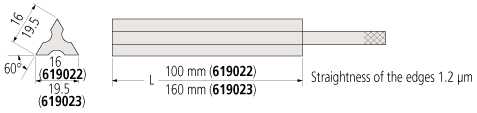

Triangular straightedge (for handheld use only)
* A single piece is supplied for each code number, except for half-round jaws, plain jaws (B type) and tram points, which are
supplied as a two-pack.
