• Mitutoyo provides a wide selection of boxed sets of gauge blocks to meet the various needs of industry. Please select the set most suited to your working conditions and applications.
SPECIFICATIONS

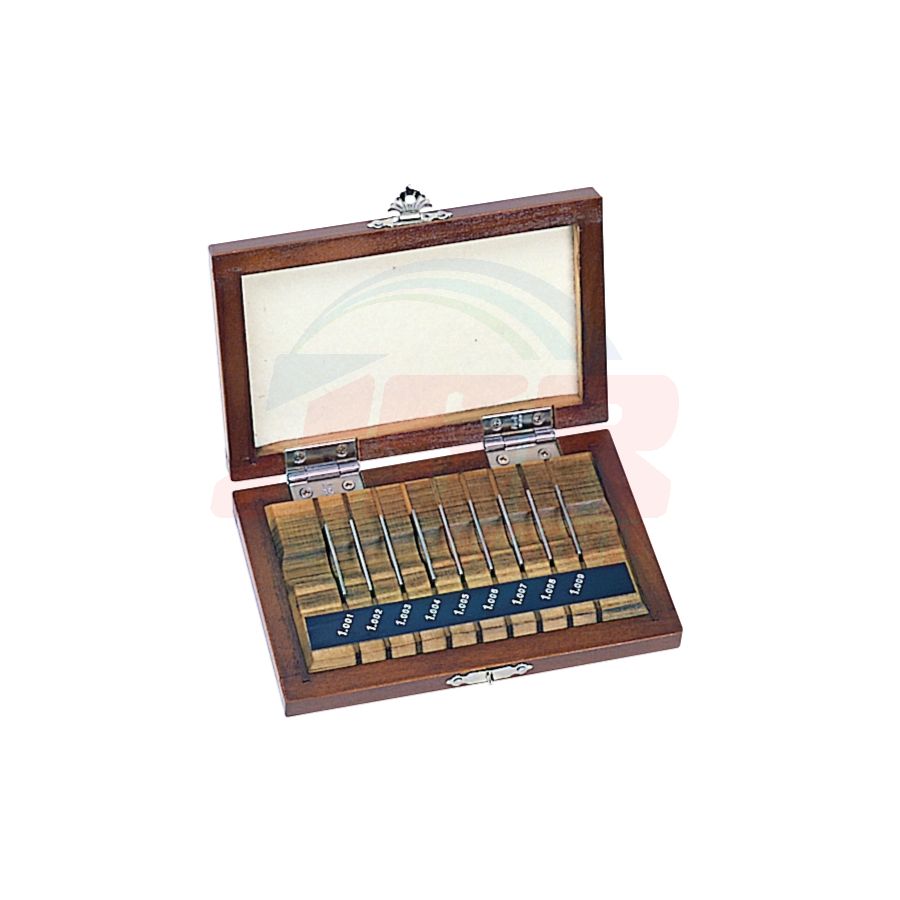

0.001 mm Step Block Sets
Blocks per set |
Order No. | Standard/grade available and Suffix No.*1 | Blocks included in set | |||
Steel | CERA | ISO/JIS | Size (mm) | Step (mm) | Qty. | |
9 | 516-981 516-982 516-983 516-984 |
516-381 |
K: -█0 0: -█0 1: -█0 2: -█0 |
1.001 - 1.009 | 0.001 | 9 |
9 | 516-985 516-986 516-987 516-988 |
516-385 |
K: -█0 0: -█0 1: -█0 2: -█0 |
0.991 - 0.999 | 0.001 | 9 |
*1: Suffix No. ( █ ) for Selecting
Standard and Certificate Provided
ISO/JIS
Suffix No. Inspection | nspection Certificate |
Calibration Certificate |
JCSS | ||
1 | √ | √ |
6 | √ | √ |
Suffix No. 1: Not available for Grade K sets.
แบรนด์สินค้า | MITUTOYO |
---|---|
Inch-Metric | Metric |
Blocks per set | 9 |
