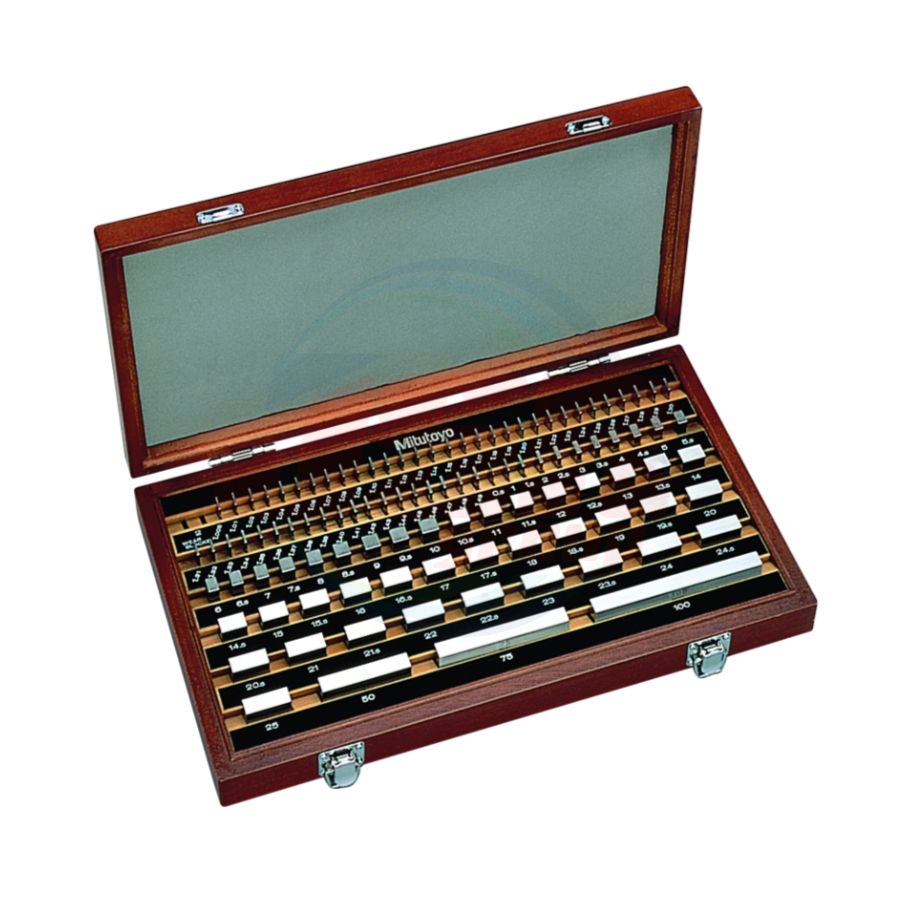

• Mitutoyo provides a wide selection of boxed sets of gauge blocks to meet the various needs of industry. Please select the set most suited to your working conditions and applications.
SPECIFICATIONS
1 mm Base Block Sets
Blocks per set |
Order No. | Standard/grade available and Suffix No.*1 | Blocks included in set | |||
Steel | CERA | ISO/JIS | Size (mm) | Step (mm) | Qty. | |
103 | 516-533 516-941 516-942 516-943 516-944 |
516-542 516-341 516-342 516-343 516-344 |
— K: -█0 0: -█0 1: -█0 2: -█0 |
1.005 1.01 - 1.49 0.5 - 24.5 25 - 100 |
0.01 0.5 25 |
1 49 49 4 |
*1: Suffix No. ( █ ) for Selecting
Standard and Certificate Provided
ISO/JIS
Suffix No. Inspection | nspection Certificate |
Calibration Certificate |
JCSS | ||
1 | √ | √ |
6 | √ | √ |
Suffix No. 1: Not available for Grade K sets.
แบรนด์สินค้า | MITUTOYO |
---|---|
Inch-Metric | Metric |
Blocks per set | 103 |
