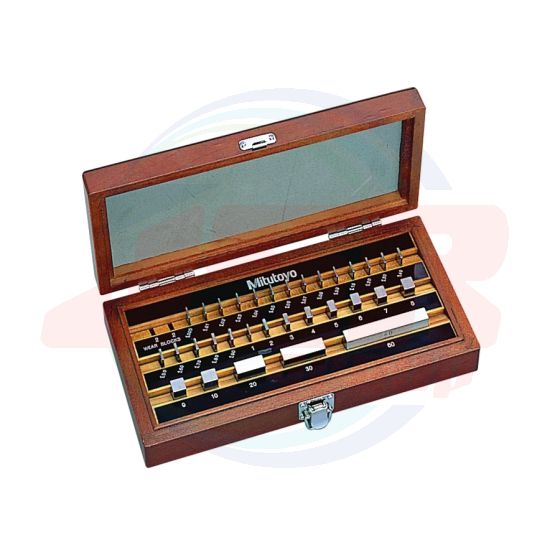

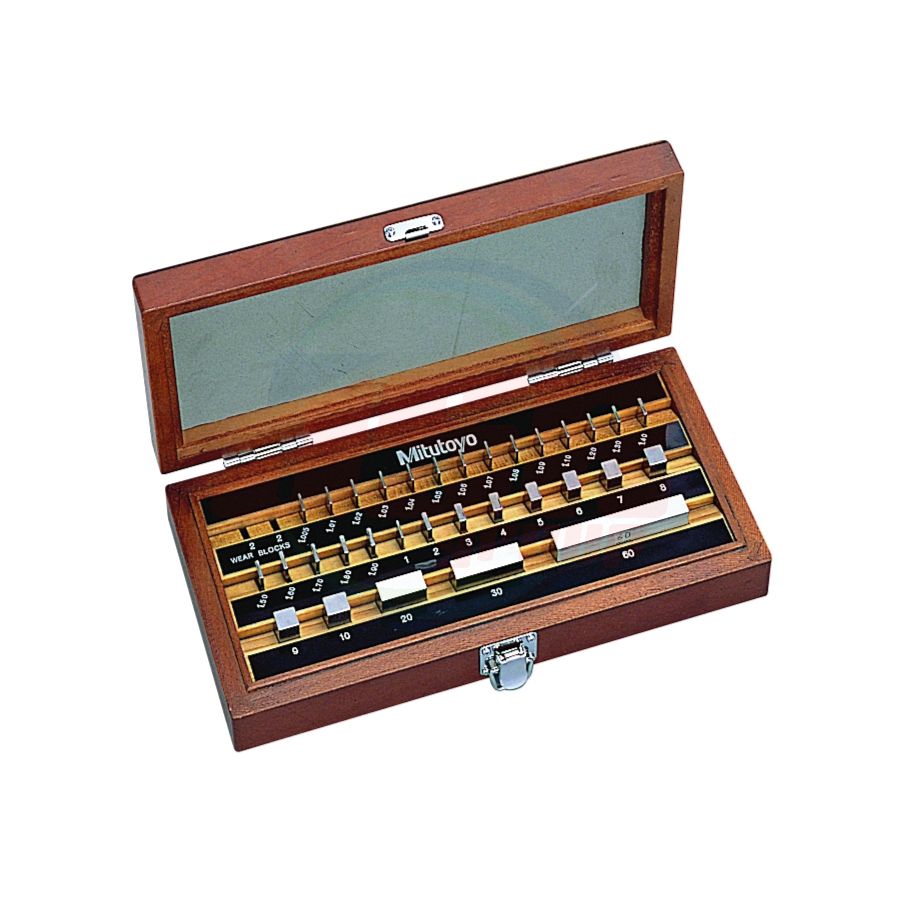

SERIES 516 | Rectangular Gauge Block Sets (1 mm Base Block Sets) - 32 per set | MITUTOYO
ราคาต่ำสุด
THB 0.00
THB 0.00
ราคาปรกติ
THB 28,364.63
พร้อมส่ง
SKU
1MIT-BM-32-516
• Mitutoyo provides a wide selection of boxed sets of gauge blocks to meet the various needs of industry. Please select the set most suited to your working conditions and applications.
SPECIFICATIONS
1 mm Base Block Sets
| Blocks per set |
Order No. | Standard/grade available and Suffix No.*1 | Blocks included in set | |||
| Steel | CERA | ISO/JIS | Size (mm) | Step (mm) | Qty. | |
| 32 | — 516-965 516-966 516-967 516-968 |
— 516-365 516-366 516-367 516-368 |
— K:-█0 0: -█0 1: -█0 2: -█0 |
1.005 1.01 - 1.09 1.1 - 1.9 1 - 9 10 - 30 60 |
0.01 |
1 9 9 9 3 1 |
*1: Suffix No. ( █ ) for Selecting
Standard and Certificate Provided
ISO/JIS
| Suffix No. Inspection | nspection Certificate |
Calibration Certificate |
| JCSS | ||
| 1 | √ | √ |
| 6 | √ | √ |
Suffix No. 1: Not available for Grade K sets.
| แบรนด์สินค้า | MITUTOYO |
|---|---|
| Inch-Metric | Metric |
| Blocks per set | 32 |
