• Mitutoyo provides a wide selection of boxed sets of gauge blocks to meet the various needs of industry. Please select the set most suited to your working conditions and applications.
SPECIFICATIONS

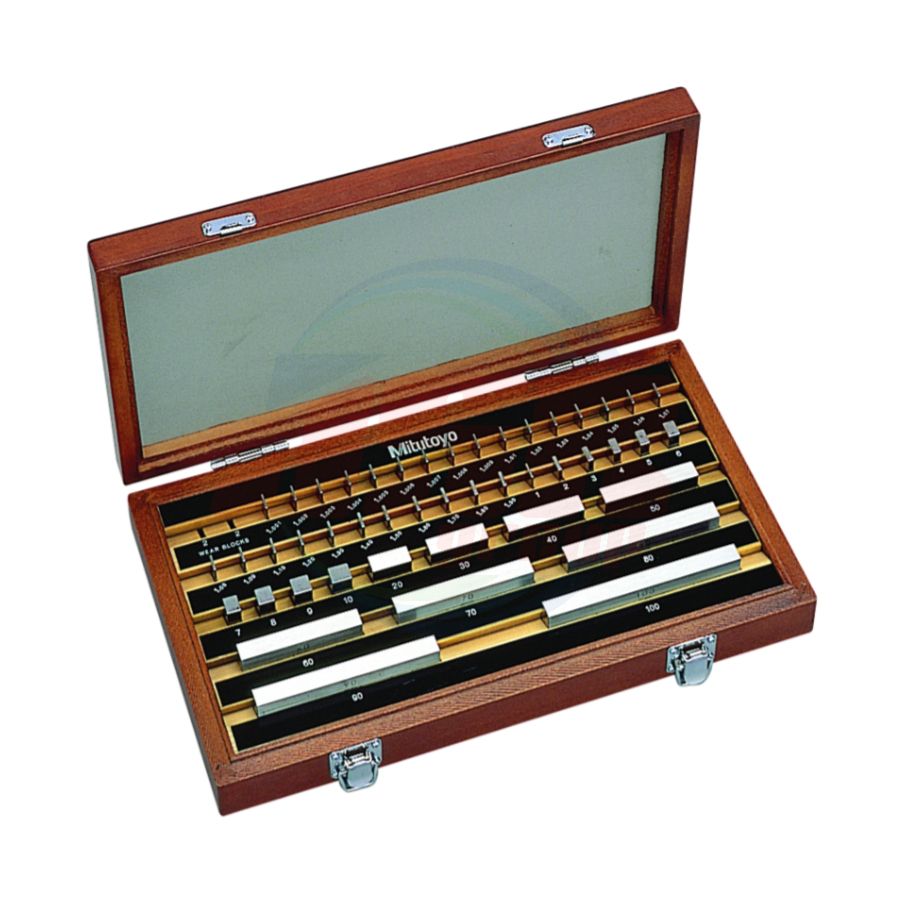

1 mm Base Block Sets
Blocks per set |
Order No. | Standard/grade available and Suffix No.*1 | Blocks included in set | |||
Steel | CERA | ISO/JIS | Size (mm) | Step (mm) | Qty. | |
46 | — 516-994 516-995 516-996 516-997 |
— 516-394 516-395 516-396 516-397 |
— K:-█0 0: -█0 1: -█0 2: -█0 |
1.001 - 1.009 1.01 - 1.09 1.1 - 1.9 1 - 9 10 - 100 |
0.001 0.01 0.1 1 10 |
9 9 9 9 10 |
*1: Suffix No. ( 0.001
0.01
0.1
1 ) for Selecting
Standard and Certificate Provided
ISO/JIS
Suffix No. Inspection | nspection Certificate |
Calibration Certificate |
JCSS | ||
1 | √ | √ |
6 | √ | √ |
Suffix No. 1: Not available for Grade K sets.
แบรนด์สินค้า | MITUTOYO |
---|---|
Inch-Metric | Metric |
Blocks per set | 46 |
