• Mitutoyo provides a wide selection of boxed sets of gauge blocks to meet the various needs of industry. Please select the set most suited to your working conditions and applications.
SPECIFICATIONS

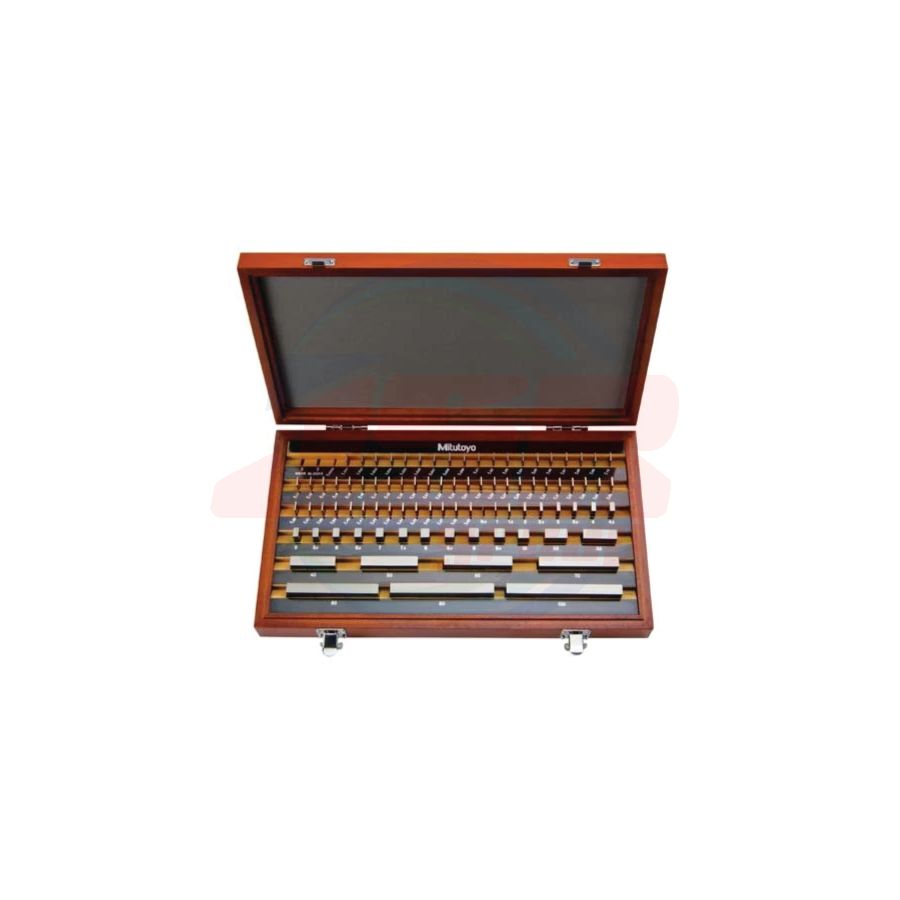

1 mm Base Block Sets
Blocks per set |
Order No. | Standard/grade available and Suffix No.*1 | Blocks included in set | |||
Steel | CERA | ISO/JIS | Size (mm) | Step (mm) | Qty. | |
87 | 516-535 516-945 516-946 516-947 516-948 |
515-543 516-345 516-346 516-347 516-348 |
— K: -█0 0: -█0 1: -█0 2: -█0 |
1.001 - 1.009 1.01 - 1.49 0.5 - 9.5 10 - 100 |
0.001 0.01 0.5 10 |
9 49 19 10 |
*1: Suffix No. ( █ ) for Selecting
Standard and Certificate Provided
ISO/JIS
Suffix No. Inspection | nspection Certificate |
Calibration Certificate |
JCSS | ||
1 | √ | √ |
6 | √ | √ |
Suffix No. 1: Not available for Grade K sets.
แบรนด์สินค้า | MITUTOYO |
---|---|
Inch-Metric | Metric |
Blocks per set | 87 |
