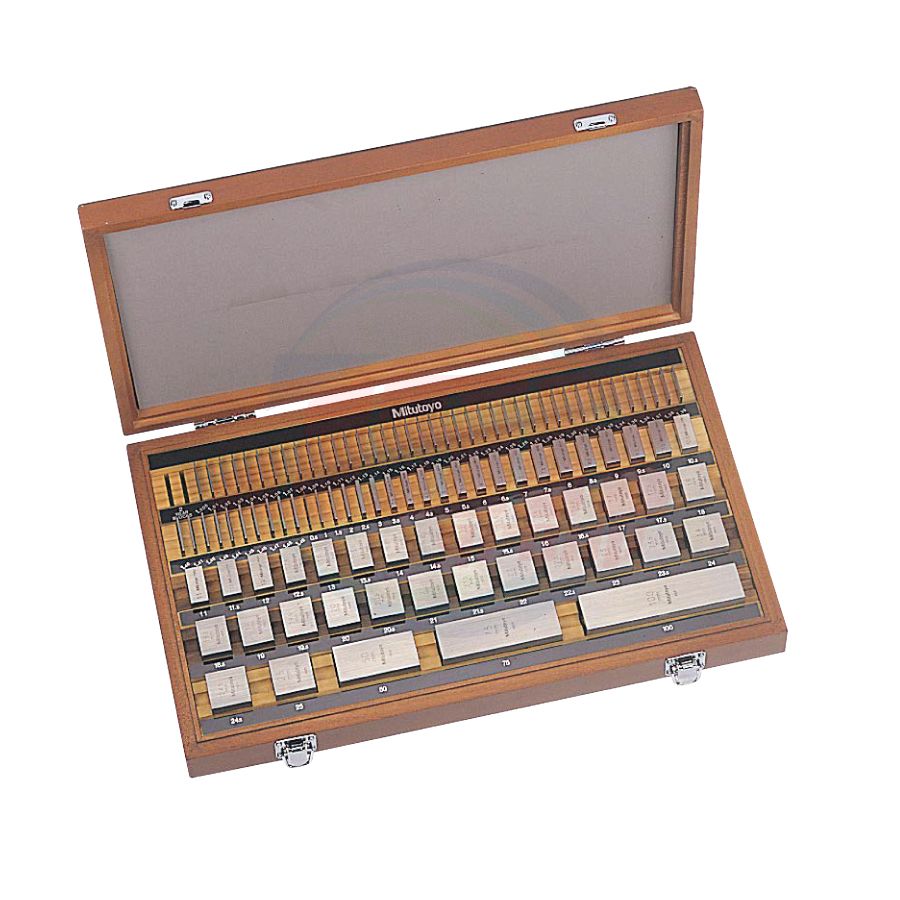

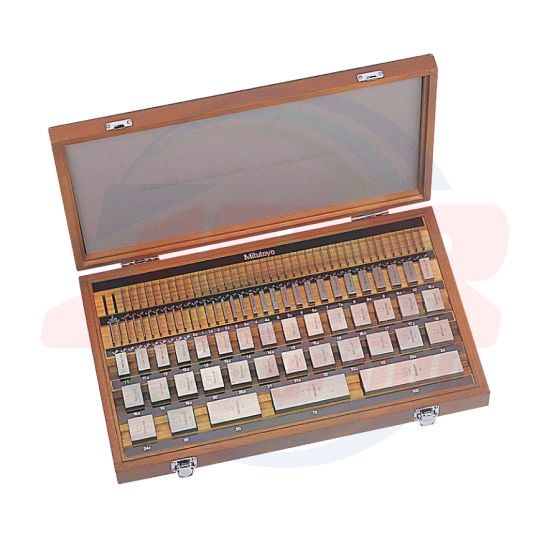

SERIES 516 - Square Gauge Block Sets - Metric Block Sets - 76 blocks per set | MITUTOYO
ราคาต่ำสุด
THB 0.00
THB 0.00
ราคาปรกติ
THB 114,051.30
พร้อมส่ง
SKU
1MIT-GBS-76
• A square gauge block can retain stable orientation both longitudinally and laterally. A wide range of application measurements can be made. From various sets of 2 pieces up to 112 pieces, you can select the best type for your application.
• Always use genuine gauge block accessories.
SPECIFICATIONS
Metric Block Sets
| Blocks per set | Order No. | Standard/grade available and Suffix No.*1 | Blocks included in set | ||
| Steel | ISO/JIS | Size (mm) | Step (mm) | Qty. | |
| 76 | 516-450 516-451 516-452 |
0: -█ 0 1: -█ 0 2: -█ 0 |
1.005 1.01 - 1.49 0.5 - 9.5 10 - 40 50 - 100 |
0.01 0.5 10 25 |
1 49 19 4 3 |
*1: Suffix No. ( █ ) for Selecting Standard and Certificate Provided
ISO/JIS
| Suffix No. | Inspection Certificate | Calibration Certificate |
| JCSS | ||
| 1 | ✔ | |
| 6 | ✔ | ✔ |
| แบรนด์สินค้า | MITUTOYO |
|---|---|
| Inch-Metric | Metric |
| Blocks per set | 76 |
