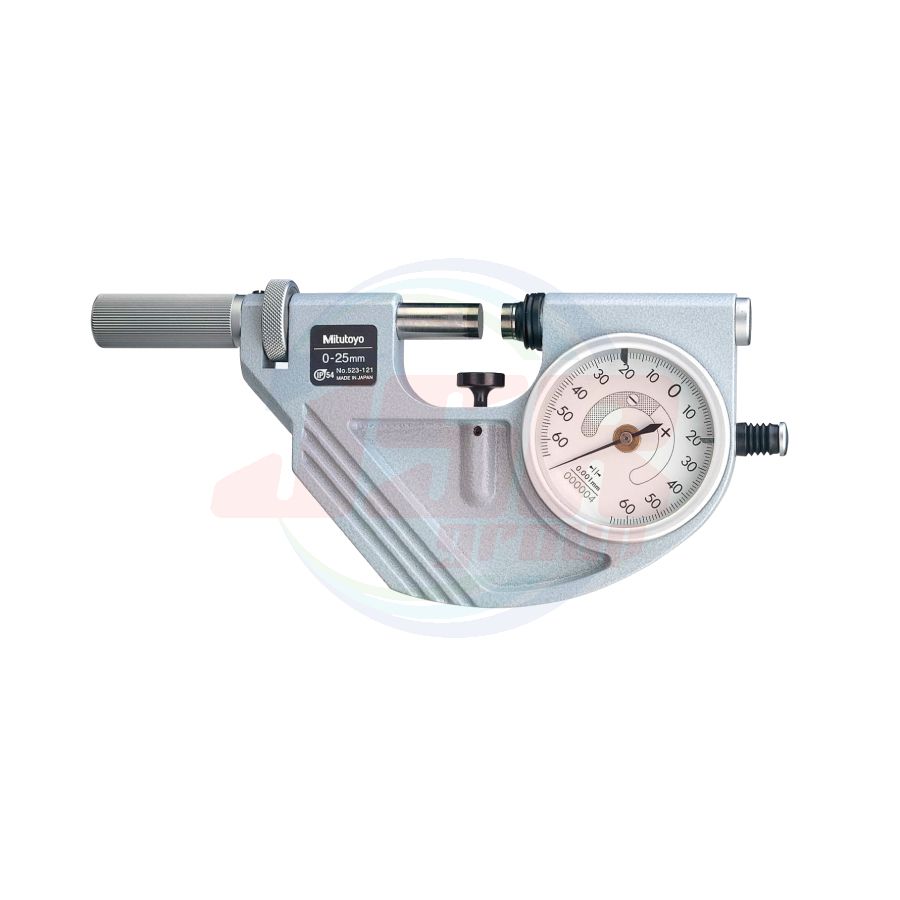

SERIES 523 | Dial Snap Meters | MITUTOYO
ราคาต่ำสุด
THB 0.00
THB 0.00
ราคาปรกติ
THB 13,242.32
พร้อมส่ง
SKU
1MIT-PSM-R-523
• The snap meter with a built-in dial indicator enables accurate Go/No-go judgement without interruption. Pushing the retractable anvil button causes the anvil and pointer to move, enabling speedy measuremets.
• Designed for use with a stand to enable a more stable measurement.
• Greatly improved accuracy: indication accuracy and graduation of 1 μm.
• IP protection level: 54, coolant-splash resistant during grinding process.
• Hard-coated crystal: enhanced oil and scratch resistance.
SPECIFICATIONS
Metric
| Order No. | 523-121 | 523-122 | 523-123 | 523-124 |
| Range (mm) |
0 - 25 | 25 - 50 | 50 - 75 | 75 - 100 |
| Dial graduation (mm) |
0.001 | |||
| Measuring force (N) |
5 - 10 | |||
| Flatness (µm) |
0.3 | |||
| Parallelism (µm) |
0.6 | 1 | ||
| Dispersion of indication (µm) |
0.4 | |||
| Dial indication accuracy (µm) |
1 | |||
| Indicating range (mm) |
±0.06 | |||
| Mass (g) | 740 | 840 | 950 | 1080 |
| แบรนด์สินค้า | MITUTOYO |
|---|---|
| Inch-Metric | Metric |
| Digital/Analog | Analog |

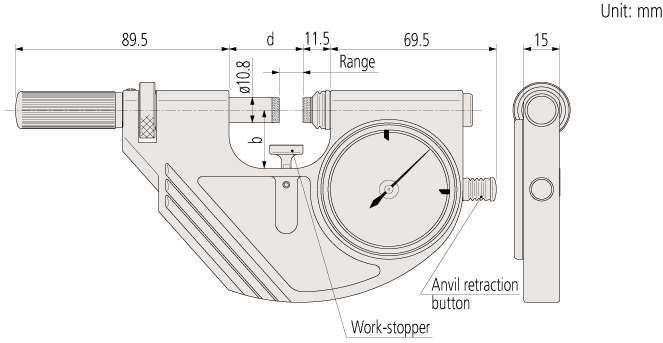

| Range (mm) | b | d |
| 0 - 25 | 25 | 31 |
| 25 - 50 | 35 | 56 |
| 50 - 75 | 47 | 81 |
| 75 - 100 | 60 | 106 |
