A Mitutoyo basic vernier caliper equipped with standard outside and inside jaws. Hardened stainless steel construction with easy-to-read, satin-chromed scales.
• This is a standard analog caliper. It can measure the outside, inside, depth, and step.
• The small Vernier face angle (14°) provides easy reading.
• Carbide-tipped jaw calipers are optimal for rough finished parts, castings, grinding stones, etc.

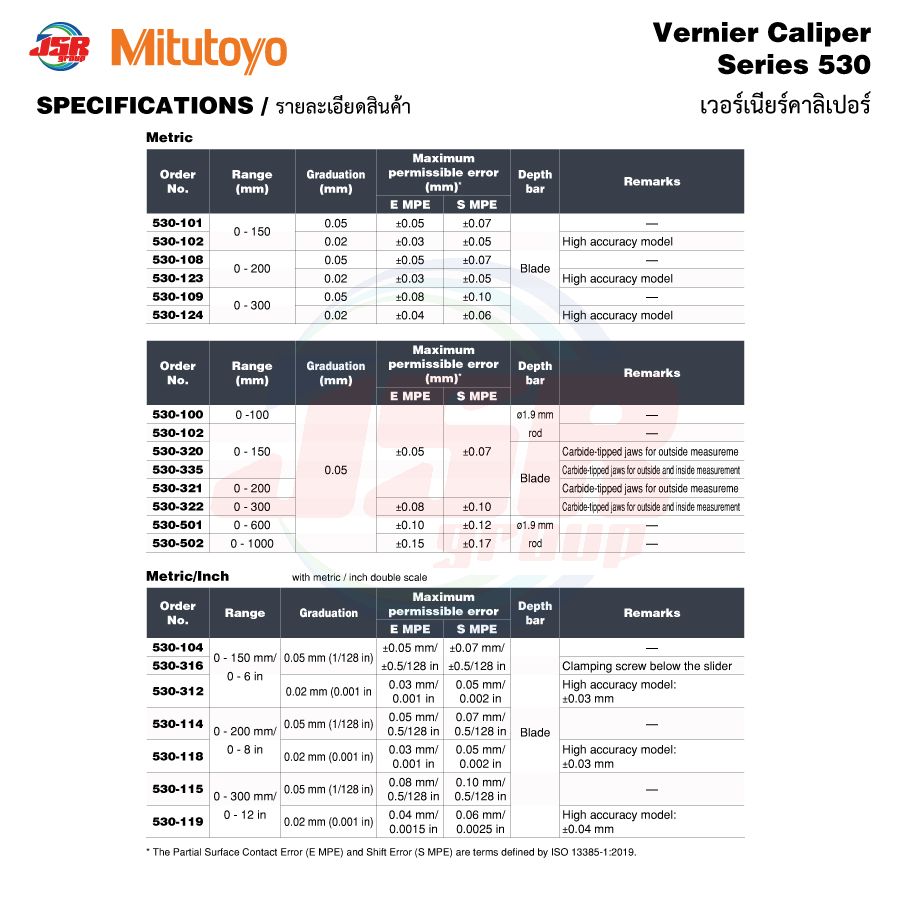

SPECIFICATIONS
Metric
| Code No. | Range (mm) | Graduation (mm) | Maximum permissible error (mm)*1 | Depth bar | Remarks | |
| E MPE | S MPE | |||||
| 530-101 | 0 - 150 | 0.05 | ±0.05 | ±0.07 | Blade | — |
| 530-122 | 0.02 | ±0.03 | ±0.05 | High accuracy model | ||
| 530-108 | 0 - 200 | 0.05 | ±0.05 | ±0.07 | — | |
| 530-123 | 0.02 | ±0.03 | ±0.05 | High accuracy model | ||
| 530-109 | 0 - 300 | 0.05 | ±0.08 | ±0.10 | — | |
| 530-124 | 0.02 | ±0.04 | ±0.06 | High accuracy model | ||
| Code No. | Range (mm) | Graduation (mm) | Maximum permissible error (mm)*1 | Depth bar | Remarks | |
| E MPE | S MPE | |||||
| 530-100 | 0 - 100 | 0.05 | ±0.05 | ±0.07 | ø1.9 mm rod | — |
| 530-102 | 0 - 150 | — | ||||
| 530-320 | Blade |
Carbide-tipped jaws for outside measurement |
||||
| 530-335 | Carbide-tipped jaws for outside and inside measurement |
|||||
| 530-321 | 0 - 200 | Carbide-tipped jaws for outside measurement |
||||
| 530-322 | 0 - 300 | ±0.08 | ±0.10 | Carbide-tipped jaws for outside measurement |
||
| 530-501 | 0 - 600 | ±0.10 | ±0.12 | — | — | |
| 530-502 | 0 - 1000 | ±0.15 | ±0.17 | |||
Metric/Inch (with metric / inch double scale)
| Code No. | Range (mm) | Graduation (mm) | Maximum permissible error (mm)*1 | Depth bar | Remarks | |
| E MPE | S MPE | |||||
| 530-104 | 0 - 150 mm/ 0 - 6 in |
0.05 mm (1/128 in) | ±0.05 mm/ ±0.5/128 in |
±0.07 mm/ ±0.5/128 in |
Blade | — |
| 530-316 | Clamping screw below the slider |
|||||
| 530-312 | 0.02 mm (0.001 in) | ±0.03 mm/ ±0.001 in |
±0.05 mm/ ±0.002 in |
High accuracy model: ±0.03 mm |
||
| 530-114 | 0 - 200 mm/ 0 - 8 in |
0.05 mm (1/128 in) | ±0.05 mm/ ±0.5/128 in |
±0.07 mm/ ±0.5/128 in |
— | |
| 530-118 | 0.02 mm (0.001 in) | ±0.03 mm/ ±0.001 in |
±0.05 mm/ ±0.002 in |
High accuracy model: ±0.03 mm |
||
| 530-115 | 0 - 300 mm/ 0 - 12 in |
0.05 mm (1/128 in) | ±0.08 mm/ ±0.5/128 in |
±0.10 mm/ ±0.5/128 in |
— | |
| 530-119 | 0.02 mm (0.001 in) | ±0.04 mm/ ±0.0015 in |
±0.06 mm/ ±0.0025 in |
High accuracy model: ±0.04 mm |
||
Inch (with metric / inch double scale)
| Code No. | Range (mm) | Graduation (mm) | Maximum permissible error (mm)*1 | Depth bar | Remarks | |
| E MPE | S MPE | |||||
| 530-105 | 0 - 6 | 0.001 (1/128) | ±0.001/±0.5/128 | ±0.002/±0.5/128 | Blade | — |
| 530-116 | 0 - 8 | |||||
* The Partial Surface Contact Error (E MPE) and Shift Error (S MPE) are terms defined by ISO 13385-1:2019.
