SERIES 7 — Magnetic Stands | MITUTOYO
ราคาต่ำสุด
THB 0.00
THB 0.00
ราคาปรกติ
THB 2,144.28
พร้อมส่ง
SKU
Magnetic-Stands
• Mitutoyo magnetic stands clamp to iron or steel surfaces with a strong force and are indispensable for temporarily mounting a dial test indicator (or dial indicator) onto a machine tool or fixture for general alignment applications.
• Vertical / horizontal mounting holes and bushes are available for attaching dial test indicators and dial indicators.
• Models 7014-10, 7014E-10, 7015-10, 7031-10, 7032-10 and 7033-10 have a dovetail groove in the swivel holder for attaching dial test indicators that are equipped with a dovetail.

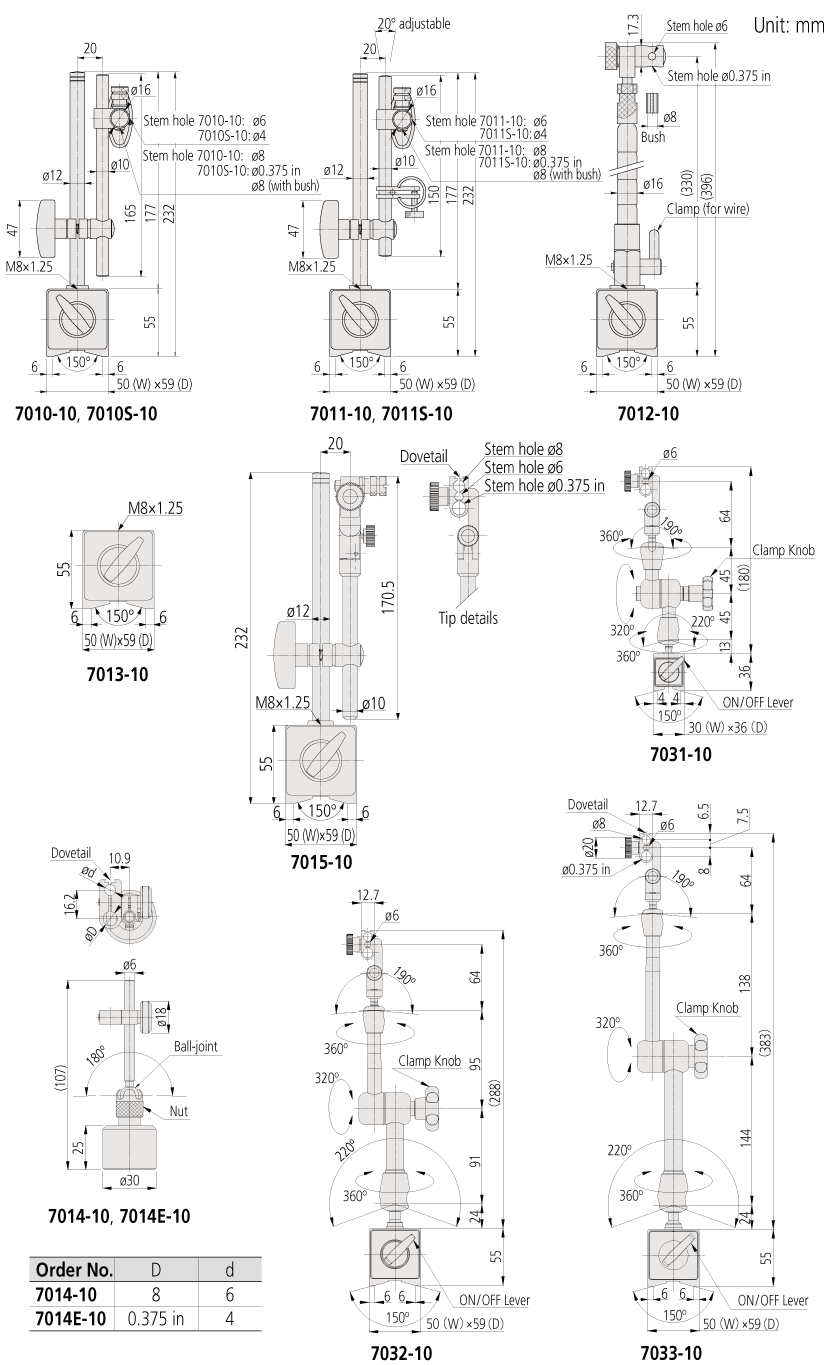

| Order No. | Description | Applicable holding stem sizes | Magnetic force*¹ | Remarks |
| 7010-10*² *³ | Magnetic stand | ø6 mm, ø8 mm | Approx. 600 N | — |
| 7010S-10*² *³ | Magnetic stand | ø4 mm, ø8 mm, ø0.375 in | Approx. 600 N | — |
| 7011-10*² *³ | Magnetic stand | ø6 mm, ø8 mm | Approx. 600 N | With fine adjustment |
| 7011S-10*² *³ | Magnetic stand | ø4 mm, ø8 mm, ø0.375 in | Approx. 600 N | With fine adjustment |
| 7012-10*⁴ | Magnetic stand | ø4 mm, ø8 mm, ø0.375 in | Approx. 600 N | — |
| 7013-10 | Magnetic stand base | — | Approx. 600 N | — |
| 7014-10*⁴ | Mini magnetic stand | ø6 mm, ø8 mm, with dovetail | Approx. 150 N | Without magnet ON/OFF |
| 7014E-10*² *³ | Mini magnetic stand | ø4 mm, ø0.375 in | Approx. 150 N | Without magnet ON/OFF |
| 7015-10 | Magnetic stand | ø6 mm, ø8 mm, ø0.375 in, with dovetail | Approx. 600 N | Without magnet ON/OFF |
| 7031-10 | Universal magnetic stand | ø6 mm, ø8 mm, ø0.375 in, with dovetail | Approx. 300 N | With mechanical locking system |
| 7032-10 | Universal magnetic stand | ø6 mm, ø8 mm, ø0.375 in, with dovetail | Approx. 600 N | With mechanical locking system |
| 7033-10 | Universal magnetic stand | ø6 mm, ø8 mm, ø0.375 in, with dovetail | Approx. 600 N | With mechanical locking system |
*1 The magnetic holding force applies to that needed for vertical separation from a thick and flat steel object.
*2 Back plunger type (1160A, etc.) cannot be attached.
*3 When attaching a compact dial indicator (outer frame diameter 31, 36 or 40 mm), select a back cover type with a lug.
*4 Use with a dial test indicator or SERIES 1 dial indicator (compact or lightweight type) is recommended.
