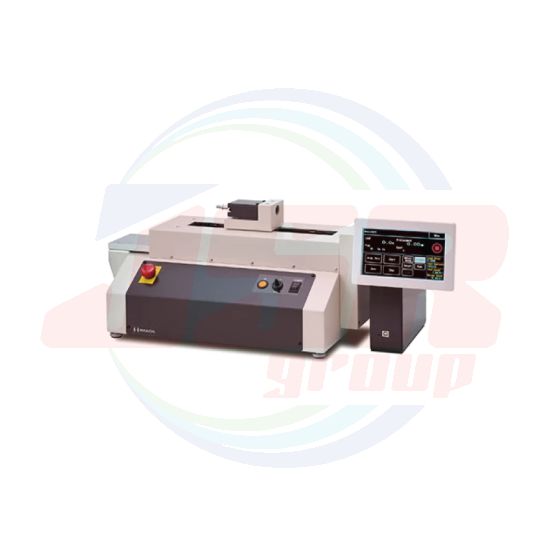

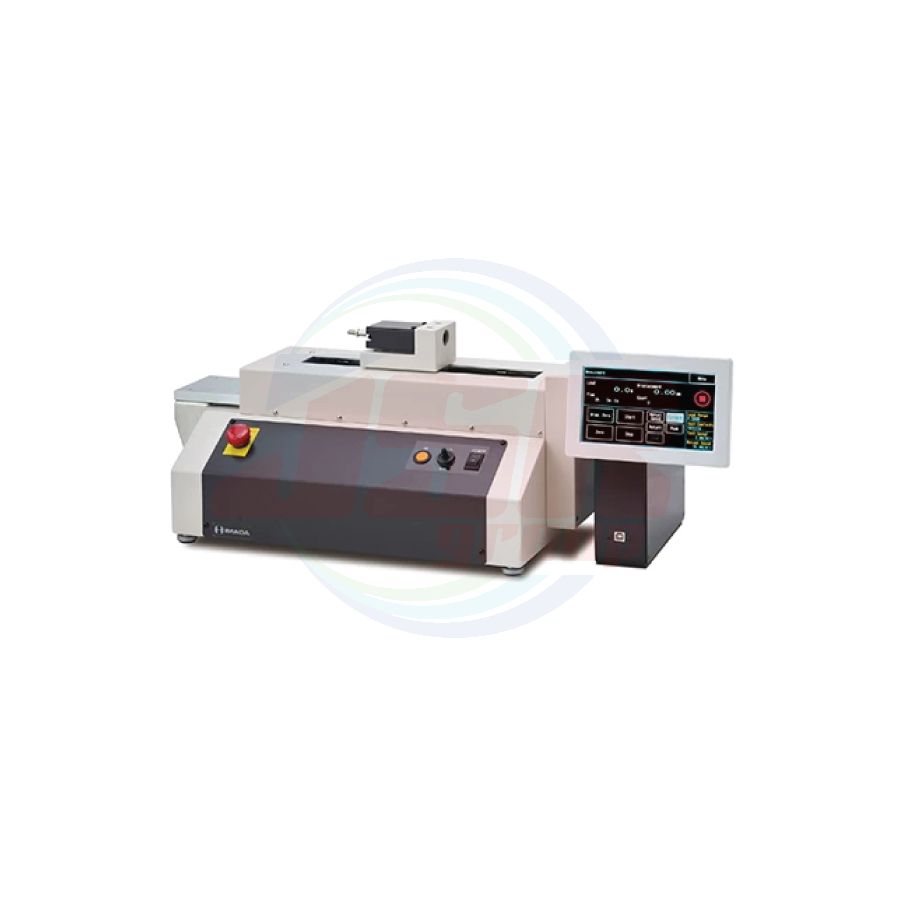

SH-14F type is the horizontal and desktop type testing machine,which allows measuring up to 500N maximum load.

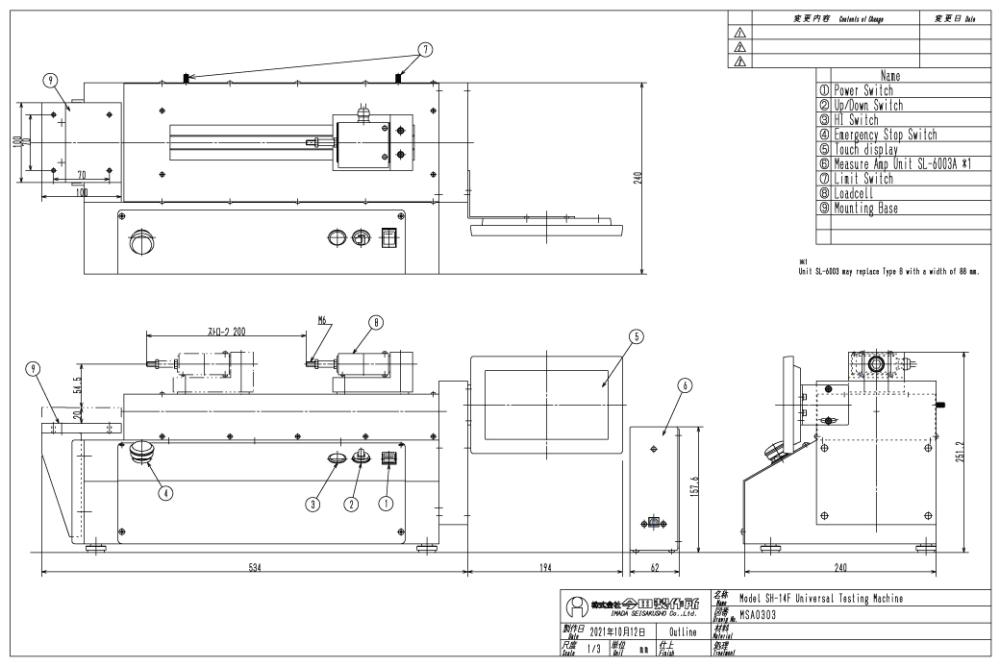

※1 For options and custom orders, Model SL-6003 measurement amplifier is "Type-B" with the width of 88mm.
■ Characteristics
◎It is horizontal testing machine and can be placed on the desk in compact size.
■ Usage example
◎Peeling test of semiconductor.
◎Frictional force tests.
※When the jig is attached, it will be vertical to the loadcell. Therefore, a moment force is generated.
■ Accessories / option
◎Output of ANALOG
Option to output load and displacement values at 10V/FS for connection to analog equipment.
◎Software
◎Digital Printer
◎Transformer
■ Standard specification
| Item | Specification |
|---|---|
| Model | SH-14F□(※1) |
| Maximum load | 500N |
| Minimum Unit | [Combination of Load Range according to the model] / [Specification of Load range] Reference |
| Load Display | |
| Load Precision | JIS1 class (indication value ± 1% range) |
| Displacement Minimum Unit | 0.01mm |
| Drive type | Brush-less Motor |
| Speed Range | 5～500mm/min |
| Stroke | 200mm |
| Table size | 100×100mm |
| Safety Device | Optional setting Limit |
| Over-load prevention function | |
| Basic Function | Memory function of the test conditions |
| Peak Hold function | |
| Cycle mode function | |
| Detect function of Break point | |
| Detect function of Start Point | |
| Auto Feed function | |
| Auto Start point Return function | |
| Judgment function | |
| Output (※2) | USB |
| Power supply | AC100V 5A |
| Weight | Approx.25kg |
| Size | W728×D240×H252mm (Included of LCD) |
※1 The model symbol is put in □. Refer to [Combination of Load Range according to the model].
※2 Analog output and Printer output can be installed with option.
■ Combination of Load Range according to the model
| Model | Usable Range | Setting Load Range | |||||||
|---|---|---|---|---|---|---|---|---|---|
| 500N | 200N | 100N | 50N | 20N | 10N | 5N | 2N | ||
| SH-14F-50R1 | 100N～500N | ● | – | – | – | – | – | – | – |
| SH-14F-50R2 | 20N～500N | ● | – | ● | – | – | – | – | – |
| SH-14F-50R3 | 4N～500N | ● | – | ● | – | ● | – | – | – |
| SH-14F-20R1 | 40N～200N | – | ● | – | – | – | – | – | – |
| SH-14F-20R2 | 10N～200N | – | ● | – | ● | – | – | – | – |
| SH-14F-20R3 | 2N～200N | – | ● | – | ● | – | ● | – | – |
| SH-14F-5R1 | 10N～50N | – | – | – | ● | – | – | – | – |
| SH-14F-5R2 | 2N～50N | – | – | – | ● | – | ● | – | – |
| SH-14F-5R3 | 0.4N～50N | – | – | – | ● | – | ● | – | ● |
| SH-14F-2R1 | 4N～20N | – | – | – | – | ● | – | – | – |
| SH-14F-2R2 | 1N～20N | – | – | – | – | ● | – | ● | – |
■ Specifications of Load Range
| Load Range | Maximum Load Display | Minimum Unit |
|---|---|---|
| 500N | 500.0N | 0.1N |
| 200N | 200.0N | |
| 100N | 100.00N | |
| 50N | 50.00N | 0.01N |
| 20N | 20.00N | |
| 10N | 10.000N | 0.001N |
| 5N | 5.000N | |
| 2N | 2.000N |
