SH-N - A Open End Head with Notch
The notch creates speed in the tightening process by grasping the side of the fastener without removing the wrench. Ideal for brake line assembly.

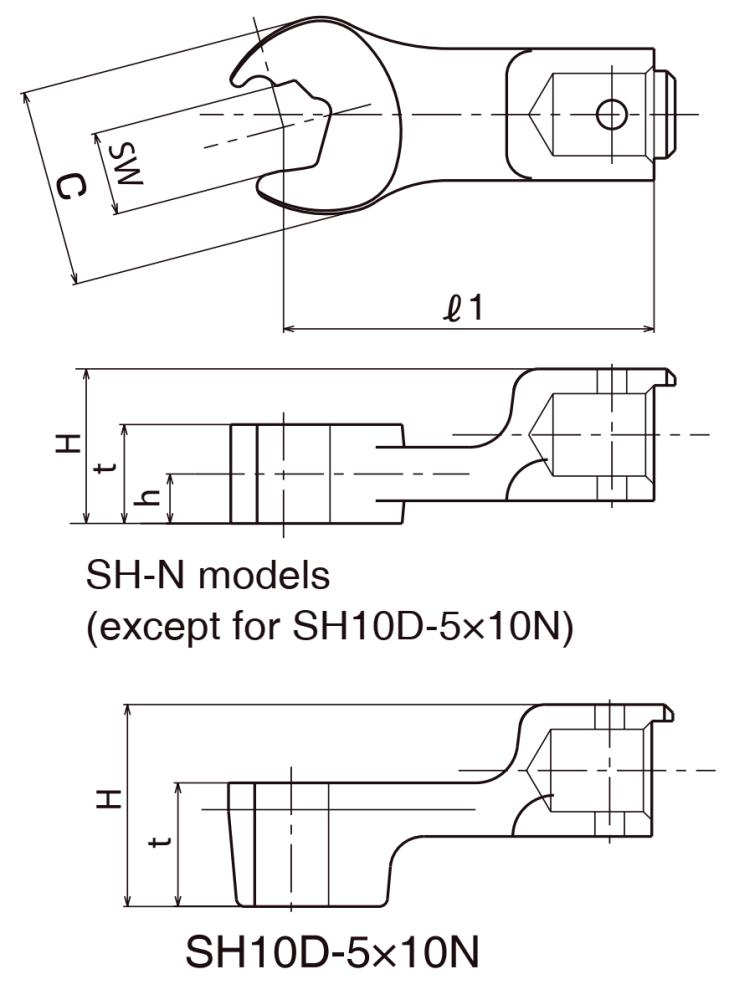

| Order No. (Body size x Width) | HeadSize | Allowable Torque | Dimensions | ||||
| Outside Width | Thickness | ||||||
| [N•m] | [kgf•cm] | S [mm] | L [mm] | t [mm] | h [mm] | ||
| SH10D-1x10N | 10D | 22.5 | 225 | 24 | 18.75 | 12 | 6 |
| SH10D-3x10N | 20.25 | 15 | 7.5 | ||||
| SH10D-5x10N | 19 | 190 | 24.5 | - | |||
| SH10D-4x10N | 22.5 | 225 | 17.75 | 10 | 5 | ||
| SH10D-9x10N | 18.75 | 6 | |||||
| SH10Dx11N | 18.8 | 12 | |||||
| SH10Dx12N | 25 | 250 | 32 | 16 | 6.5 | 3.25 | |
| SH12Dx11N | 12D | 30 | 300 | 30 | 19 | 7.5 | - |
| SH12D-1x12N | 32 | 21 | 12 | 6 | |||
| SH12D-3x12N | 22.5 | 15 | 7.5 | ||||
| SH12D-5x12N | 26 | - | |||||
| SH12D-4x12N | 20 | 10 | 5 | ||||
| SH12D-1x14N | 40 | 400 | 35 | 21 | 12 | 6 | |
| SH12D-3x14N | 22.5 | 15 | 7.5 | ||||
| SH12D-5x14N | 26 | - | |||||
| SH12D-4x14N | 20 | 10 | 5 | ||||
| SH12D-1x17N | 50 | 500 | 38 | 21 | 12 | 6 | |
| SH12D-3x17N | 22.5 | 15 | 7.5 | ||||
| SH12D-5x17N | 26 | - | |||||
| SH12D-4x17N | 20 | 10 | 5 | ||||
