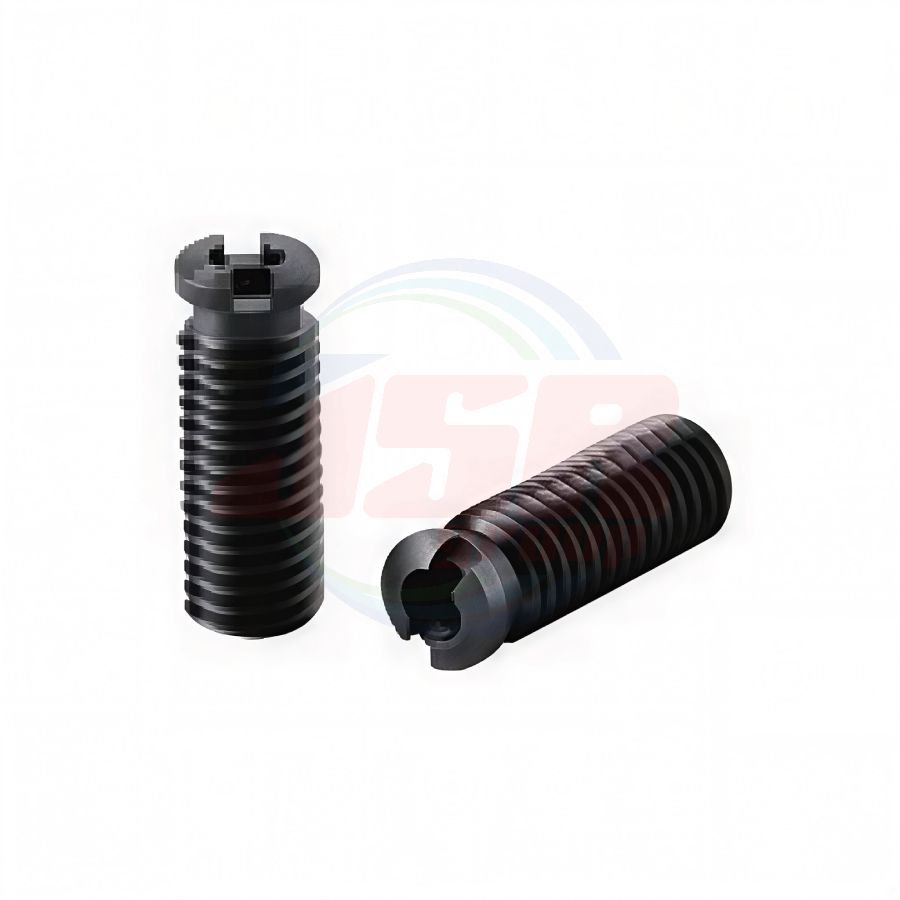

SHO-AS-M-CTW | ADJUST SCREW (For HSK shank standard MICRON CHUCK) | SHOWA TOOL
สินค้าหมด
SKU
SHO-AS-M-CTW
QTY:
0

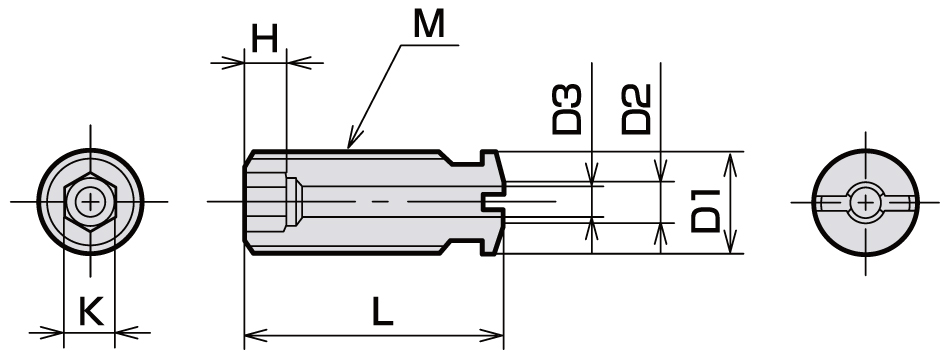

| MODEL | CODE | M | L | D1 | D2 | D3 | K | H | MICRON CHUCK | |
|---|---|---|---|---|---|---|---|---|---|---|
| BT, BBT | HSK | |||||||||
| AS17-2-M5-CTW | 17672 | M5×0.8 | 17 | 5 | 3 | 2 | 2.5 | 3 | ||
| AS17-2-M6-CTW | 17676 | M6×1.0 | 17 | 6 | 3 | HPC08N | ||||
| AS22-2-M6-CTW | 17678 | M6×1.0 | 22 | 6 | 3 | 2 | 3 | 3 | HPC08M | HPC08M, HPC08N |
| AS22-2-M8-CTW | 17680 | M8×1.25 | 22 | 8 | 5 | 4 | 4 | 5 | HPC10N, HPC09M, HPC10M | HPC10N, HPC09M～12M, HPC12N |
| AS25-2-M8-CTW | 17682 | M8×1.25 | 25 | 10 | 6 | 5 | 5 | 6 | HPC12N, HPC11M,12M | |
| AS25-2-M10-CTW | 17684 | M10×1.5 | 25 | 10 | 6 | 5 | 5 | 6 | HPC12N, HPC11M,12M | HSKA100-HPC12M |
| แบรนด์สินค้า | SHOWA TOOL |
|---|
