荒刃(R)と仕上刃(S)各1個セット

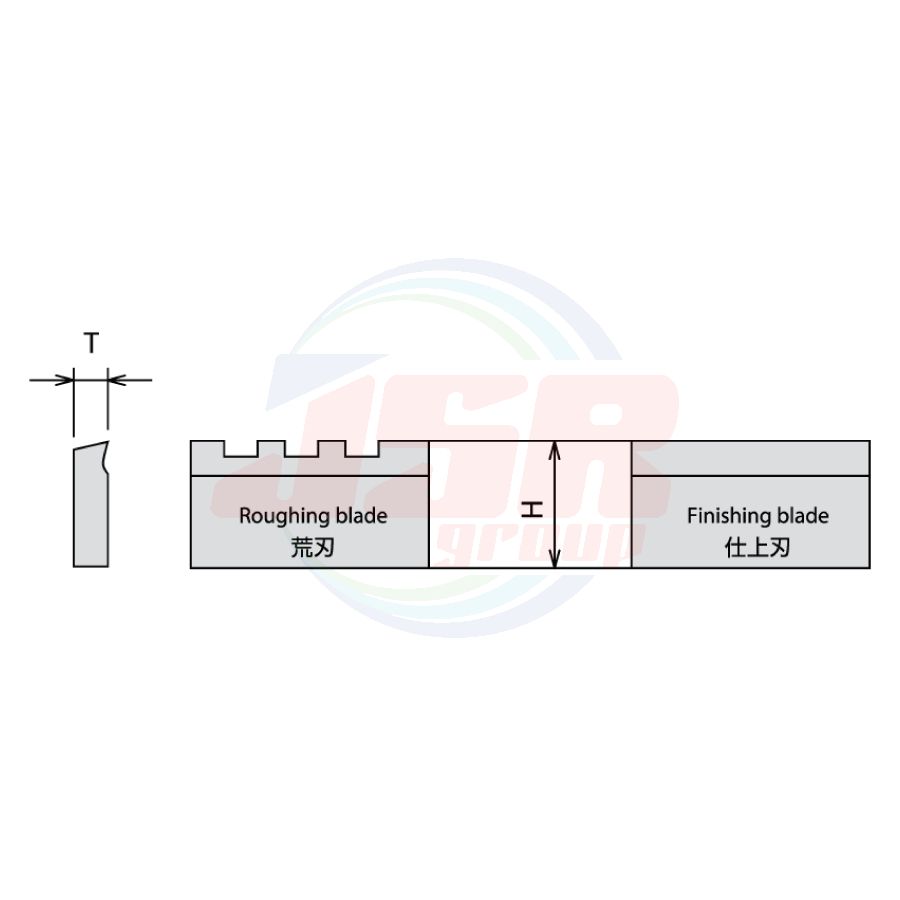

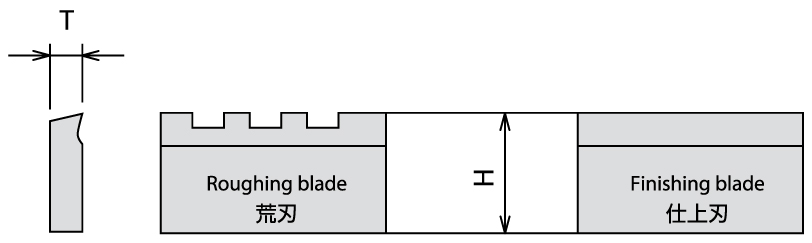

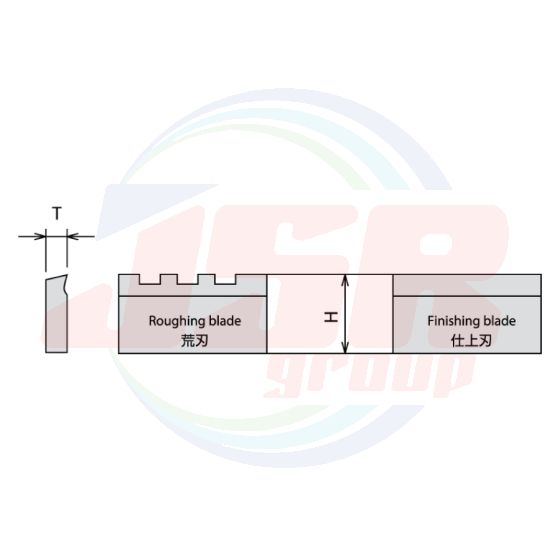

Each set consists of a roughing blade (R) and a finishing blade (S).

MODEL	CODE	Hole dia 加工径Dmm	T	H	Blade 替刃	Head 適用ヘッドNo.
BK50	52002	50 (50～53)	5	19	A19　R&S	A₁-55
BK51	52032	51			A19.5　R&S
BK52	52034	52			A20　R&S
BK53	52004	53 (53～55)			A20.5　R&S
BK54	52036	54			A21　R&S
BK55	52006	55			A21.5　R&S
BK55	52006	55 (55～60)			A21.5　R&S	A₂-65
BK56	52038	56			A22　R&S
BK57	52040	57			A22.5　R&S
BK58	52042	58			A23　R&S
BK59	52044	59			A23.5　R&S
BK60	52008	60 (60～65)			A24　R&S
BK61	52046	61			A24.5　R&S
BK62	52048	62			A25　R&S
BK63	52050	63			A25.5　R&S
BK64	52052	64			A26　R&S
BK65	52010	65			B26.5　R&S
BK65	52010	65 (65～73)			B26.5　R&S	B-80
BK66	52054	66			B27　R&S
BK67	52056	67			B27.5　R&S
BK68	52058	68			B28　R&S
BK69	52060	69			B28.5　R&S
BK70	52062	70			B29　R&S
BK71	52064	71			B29.5　R&S
BK72	52066	72			B30　R&S
BK73	52012	73 (73～80)			B30.5　R&S
BK74	52068	74			B31　R&S
BK75	52070	75			B31.5　R&S
BK76	52072	76			B32　R&S
BK77	52074	77			B32.5　R&S
BK78	52076	78			B33　R&S
BK79	52078	79			B33.5　R&S
BK80	52014	80			C34　R&S
BK80	52014	80 (80～90)			C34　R&S	C-100
BK81	52080	81			C34.5　R&S
BK82	52082	82			C35　R&S
BK83	52084	83			C35.5　R&S
BK84	52086	84			C36　R&S
BK85	52088	85			C36.5　R&S
BK86	52090	86			C37　R&S
BK87	52092	87			C37.5　R&S
BK88	52094	88			C38　R&S
BK89	52096	89			C38.5　R&S
BK90	52016	90 (90～100)			C39　R&S
BK91	52098	91			C39.5　R&S
BK92	52100	92			C40　R&S
BK93	52102	93			C40.5　R&S
BK94	52104	94			C41　R&S
BK95	52106	95			C41.5　R&S
BK96	52108	96			C42　R&S
BK97	52110	97			C42.5　R&S
BK98	52112	98			C43　R&S
BK99	52114	99			C43.5　R&S
BK100	52018	100			D44　R&S

MODEL	CODE	Hole dia 加工径Dmm	T	H	Blade 替刃	Head 適用ヘッドNo.
BK100	52018	100 (100～110)	5	19	D44　R&S	D-120
BK101	52116	101			D44.5　R&S
BK102	52118	102			D45　R&S
BK103	52120	103			D45.5　R&S
BK104	52122	104			D46　R&S
BK105	52124	105			D46.5　R&S
BK106	52126	106			D47　R&S
BK107	52128	107			D47.5　R&S
BK108	52130	108			D48　R&S
BK109	52132	109			D48.5　R&S
BK110	52020	110 (110～120)			D49　R&S
BK111	52134	111			D49.5　R&S
BK112	52136	112			D50　R&S
BK113	52138	113			D50.5　R&S
BK114	52140	114			D51　R&S
BK115	52142	115			D51.5　R&S
BK116	52144	116			D52　R&S
BK117	52146	117			D52.5　R&S
BK118	52148	118			D53　R&S
BK119	52150	119			D53.5　R&S
BK120D	52152	120			D54　R&S
BK120E	52154	120	8	25		E-150
BK125	52156	125
BK130	52158	130
BK135	52160	135
BK140	52162	140
BK145	52164	145
BK150	52166	150
BK150F	52168	150	12	25		F-180
BK155	52170	155
BK160	52172	160
BK165	52174	165
BK170	52176	170
BK175	52178	175
BK180	52180	180
BK180	52180	180				G-210
BK190	52182	190
BK200	52184	200
BK210	52186	210
BK210	52186	210				H-240
BK220	52188	220
BK230	52190	230
BK240	52192	240
BK240	52192	240				I-270
BK250	52194	250
BK260	52196	260
BK270	52198	270

センタドリル　CENTER DRILL

注:

1.

CD-12Cは、コーティングを施したタイプとなります。

2.

替刃につきましても、コーティングタイプがあります。別途お申し付け下さい。

NOTE :

1.

CD-12C is a coated type.

2.

There is also a coating type for blades. Please tell us separately.
