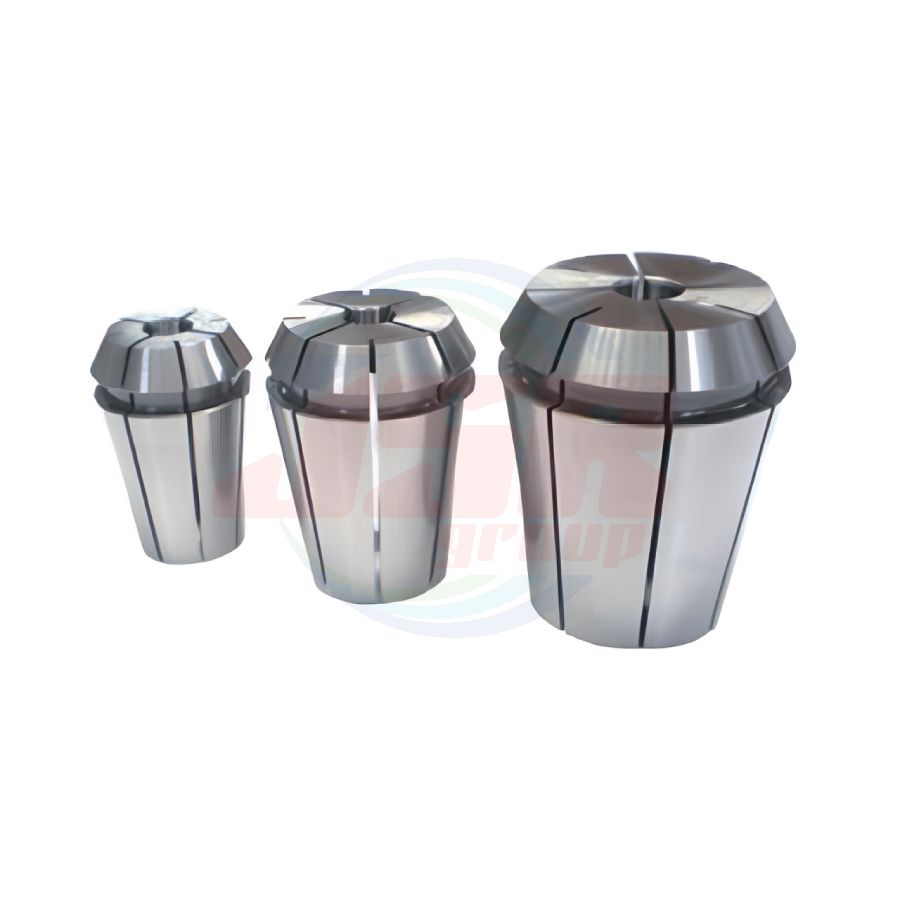

CRコレットに角穴の廻り止めを付けたタップ用コレット
CR collet with square hole for shank end of tap (for synchro tap).

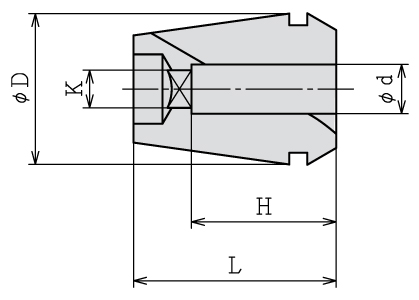

| MODEL | CODE | TAP SIZE | ø d | K | H | øD | L | TAP HOLDER | COLLET CHUCK | |
|---|---|---|---|---|---|---|---|---|---|---|
| CR10GB | -M4 | 84700 | M4 | 5 | 4 | 15 | 16 | 27 | - | NSC10 |
| -M5 | 84702 | M5 | 5.5 | 4.5 | 15 | |||||
| -M6 | 84704 | M6 | 6 | 4.5 | 15 | |||||
| -M8 | 84706 | M8 | 6.2 | 5 | 20 | |||||
| -M10 | 84708 | M10 | 7 | 5.5 | 20 | |||||
| -P1/8 | 84710 | P1/8 | 8 | 6 | 20 | |||||
| CR13GB | -M4 | 84712 | M4 | 5 | 4 | 15 | 20 | 31 | SYFN12 | NSC13 |
| -M5 | 84714 | M5 | 5.5 | 4.5 | 15 | |||||
| -M6 | 84716 | M6 | 6 | 4.5 | 15 | |||||
| -M8 | 84718 | M8 | 6.2 | 5 | 20 | |||||
| -M10 | 84720 | M10 | 7 | 5.5 | 25 | |||||
| -P1/8 | 84722 | P1/8 | 8 | 6 | 20 | |||||
| -M12 | 84724 | M12 | 8.5 | 6.5 | 25 | |||||
| CR16GB | -M4 | 84726 | M4 | 5 | 4 | 15 | 25 | 35 | SYFN16S | NSC16 |
| -M5 | 84728 | M5 | 5.5 | 4.5 | 15 | |||||
| -M6 | 84730 | M6 | 6 | 4.5 | 15 | |||||
| -M8 | 84732 | M8 | 6.2 | 5 | 20 | |||||
| -M10 | 84734 | M10 | 7 | 5.5 | 25 | |||||
| -P1/8 | 84736 | P1/8 | 8 | 6 | 20 | |||||
| -M12 | 84738 | M12 | 8.5 | 6.5 | 25 | |||||
| -M14 | 84740 | M14 | 10.5 | 8 | 25 | |||||
| -P1/4 | 84742 | P1/4 | 11 | 9 | 17 | |||||
| -M16 | 84744 | M16 | 12.5 | 10 | 25 | |||||
| -P3/8 | 84746 | P3/8 | 14 | 11 | 18 | |||||
| CR20GB | -M4 | 84748 | M4 | 5 | 4 | 15 | 32 | 40 | SYFN20 | NSC20 |
| -M5 | 84750 | M5 | 5.5 | 4.5 | 15 | |||||
| -M6 | 84752 | M6 | 6 | 4.5 | 15 | |||||
| -M8 | 84754 | M8 | 6.2 | 5 | 20 | |||||
| -M10 | 84756 | M10 | 7 | 5.5 | 25 | |||||
| -P1/8 | 84758 | P1/8 | 8 | 6 | 20 | |||||
| -M12 | 84760 | M12 | 8.5 | 6.5 | 25 | |||||
| -M14 | 84762 | M14 | 10.5 | 8 | 25 | |||||
| -P1/4 | 84764 | P1/4 | 11 | 9 | 17 | |||||
| -M16 | 84766 | M16 | 12.5 | 10 | 25 | |||||
| -P3/8 | 84768 | P3/8 | 14 | 11 | 18 | |||||
| -M18 | 84770 | M18 | 14 | 11 | 28 | |||||
| -M20 | 84772 | M20 | 15 | 12 | 28 | |||||
NOTE: 1. Above table is for a tap of JIS standard shank.
2. Run-out accuracy is subject to ordinary (STD) class.
