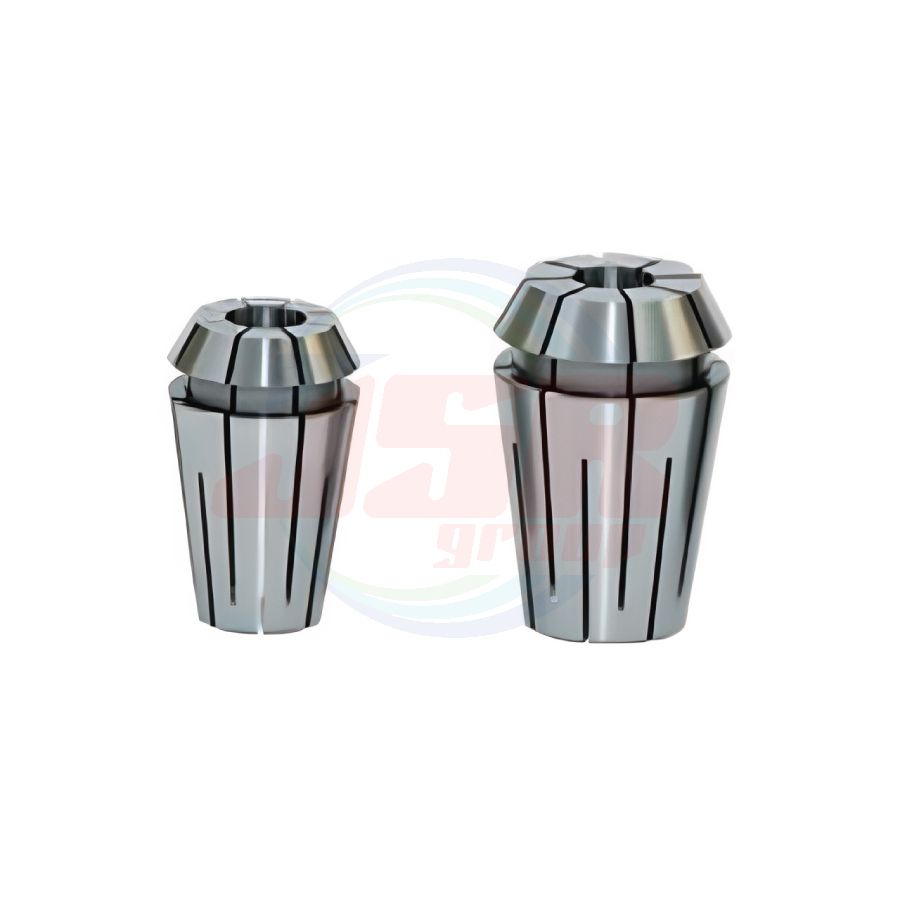

SHO-CR-GH | OIL HOLE CR TAP COLLET | SHOWA TOOL
ราคาต่ำสุด
THB 0.00
*ราคายังไม่รวม VAT
พร้อมส่ง
SKU
SHO-CR-GH
QTY:
0
高圧クーラントに対応したセンタースルー用タップ用コレット
OH-type collet with square hole is for high-pressure centre-through coolant feeding (for synchro tapping).

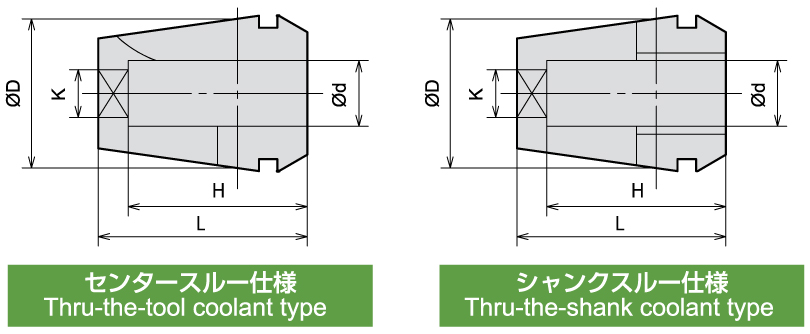

| MODEL | CODE | TAP SIZE |
ød | K | H | øD | L | TAP HOLDER |
COLLET CHUCK |
||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Centre | Groove | ||||||||||
| CR10GH | M6 | 84800 | 85300 | M6 | 6 | 4.5 | 22 | 16 | 27 | － | NSC10 |
| M8 | 84802 | 85301 | M8 | 6.2 | 5 | 22 | |||||
| M10 | 84804 | 85302 | M10 | 7 | 5.5 | 22 | |||||
| P1/8 | 84806 | 85303 | P1/8 | 8 | 6 | 22 | |||||
| CR13GH | M6 | 84808 | 85304 | M6 | 6 | 4.5 | 25 | 20 | 31 | SYFN12 | NSC13 |
| M8 | 84810 | 85305 | M8 | 6.2 | 5 | 25 | |||||
| M10 | 84812 | 85306 | M10 | 7 | 5.5 | 25 | |||||
| P1/8 | 84814 | 85307 | P1/8 | 8 | 6 | 25 | |||||
| M12 | 84816 | 85308 | M12 | 8.5 | 6.5 | 25 | |||||
| CR16GH | M6 | 84818 | 85309 | M6 | 6 | 4.5 | 25 | 25 | 35 | SYFN16S | NSC16 |
| M8 | 84820 | 85310 | M8 | 6.2 | 5 | 25 | |||||
| M10 | 84822 | 85311 | M10 | 7 | 5.5 | 25 | |||||
| P1/8 | 84824 | 85312 | P1/8 | 8 | 6 | 25 | |||||
| M12 | 84826 | 85313 | M12 | 8.5 | 6.5 | 30 | |||||
| M14 | 84828 | 85314 | M14 | 10.5 | 8 | 30 | |||||
| P1/4 | 84830 | 85315 | P1/4 | 11 | 9 | 30 | |||||
| M16 | 84832 | 85316 | M16 | 12.5 | 10 | 30 | |||||
| P3/8 | 84834 | 85317 | P3/8 | 14 | 11 | 30 | |||||
| CR20GH | M6 | 84836 | 85318 | M6 | 6 | 4.5 | 25 | 32 | 40 | SYFN20 | NSC20 |
| M8 | 84838 | 85319 | M8 | 6.2 | 5 | 25 | |||||
| M10 | 84840 | 85320 | M10 | 7 | 5.5 | 30 | |||||
| P1/8 | 84842 | 85321 | P1/8 | 8 | 6 | 30 | |||||
| M12 | 84844 | 85322 | M12 | 8.5 | 6.5 | 30 | |||||
| M14 | 84846 | 85323 | M14 | 10.5 | 8 | 30 | |||||
| P1/4 | 84848 | 85324 | P1/4 | 11 | 9 | 35 | |||||
| M16 | 84850 | 85325 | M16 | 12.5 | 10 | 35 | |||||
| P3/8 | 84852 | 85326 | P3/8 | 14 | 11 | 35 | |||||
| M18 | 84854 | 85327 | M18 | 14 | 11 | 35 | |||||
| M20 | 84856 | 85328 | M20 | 15 | 12 | 35 | |||||
NOTE:
1. Above table is for a tap of JIS standard shank.
2. Run-out accuracy is subject to ordinary (STD) class.
3. In the case of OSG Corporation synchro tap, shank diameter, square end dimensions are different from others so that there is the case that you can not use it even if tap size is the same.
4. Thru-the-groove Coolant type is made-to-order.
