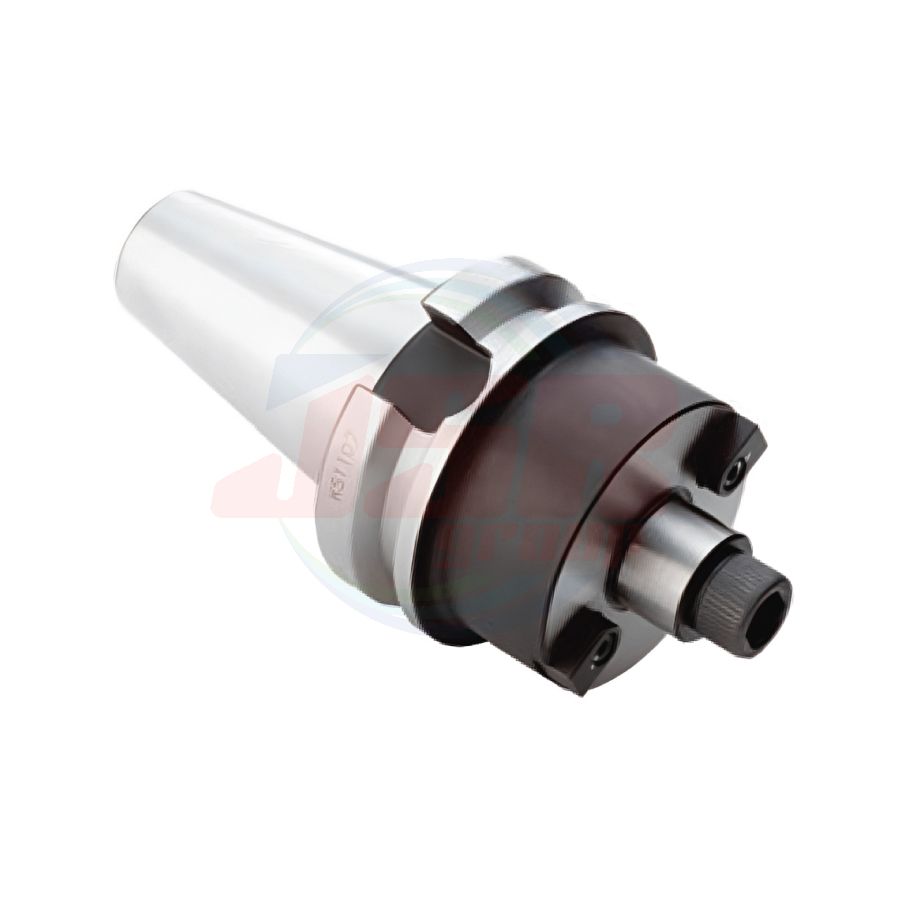

SHO-FMC | FACE MILL ARBOR (Type C) | SHOWA TOOL
ราคาต่ำสุด
THB 0.00
*ราคายังไม่รวม VAT
พร้อมส่ง
SKU
SHO-FMC
QTY:
0

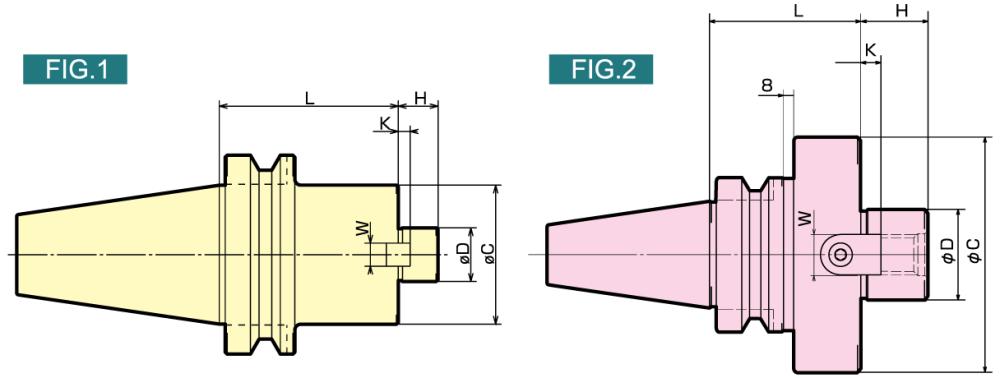

| MODEL | CODE | Fig | φD(h6) | L | φC | H | K | W | CLAMP BOLT | N/W (kg) | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| BT | BBT | |||||||||||
| BT30 BBT30 |
-FMC16-045 | (△) | (△) | 1 | 16 | 45 | 34 | 17 | 5 | 8 | M8×25L | 0.6 |
| -FMC22-045 | 200730 | 201010 | 22 | 45 | 18 | 10 | M10×30L | 0.7 | ||||
| -FMC27-045 | (△) | (△) | 2 | 27 | 70 | 20 | 6 | 12 | M12×35L | 1.1 | ||
| BT40 BBT40 |
-FMC25.4-060 | (△) | (△) | 1 | 25.4 | 60 | 70 | 20 | 5 | 9.5 | M12×35L | 2.0 |
| -FMC25.4-105 | (△) | (△) | 105 | 3.1 | ||||||||
| -FMC38.1-060 | (△) | (△) | 38.1 | 60 | 85 | 22 | 7 | 15.9 | M16×40L | 2.5 | ||
| -FMC22-060 | 12720 | 240333 | 22 | 60 | 45 | 18 | 5 | 10 | M10×30L | 1.5 | ||
| -FMC22-105 | 12722 | 240334 | 105 | 2.1 | ||||||||
| -FMC27-060 | (△) | (△) | 27 | 60 | 70 | 20 | 6 | 12 | M12×35L | 2.0 | ||
| -FMC27-105 | (△) | (△) | 105 | 3.1 | ||||||||
| -FMC32-060 | (△) | (△) | 32 | 60 | 85 | 22 | 7 | 14 | M16×40L | 2.4 | ||
| BT50 BBT50 |
-FMC25.4-045 | (△) | (△) | 1 | 25.4 | 45 | 70 | 20 | 5 | 9.5 | M12×35L | 4.0 |
| -FMC25.4-090 | (△) | (△) | 90 | 5.4 | ||||||||
| -FMC25.4-150 | (△) | (△) | 150 | 7.2 | ||||||||
| -FMC38.1-045 | (△) | (△) | 38.1 | 45 | 85 | 22 | 7 | 15.9 | M16×40L | 4.2 | ||
| -FMC38.1-075 | (△) | (△) | 75 | 5.6 | ||||||||
| -FMC38.1-105 | (△) | (△) | 105 | 6.9 | ||||||||
| -FMC22-060 | (△) | (△) | 22 | 60 | 45 | 18 | 5 | 10 | M10×30L | 4.1 | ||
| -FMC22-105 | 15720 | 270342 | 105 | 4.6 | ||||||||
| -FMC22-150 | 15722 | 270343 | 150 | 5.2 | ||||||||
| -FMC27-045 | (△) | (△) | 27 | 45 | 70 | 20 | 6 | 12 | M12×35L | 4.0 | ||
| -FMC27-090 | (△) | (△) | 90 | 5.4 | ||||||||
| -FMC27-150 | (△) | (△) | 150 | 7.2 | ||||||||
| -FMC32-045 | (△) | (△) | 32 | 45 | 85 | 22 | 7 | 14 | M16×40L | 4.2 | ||
| -FMC32-075 | (△) | (△) | 75 | 5.0 | ||||||||
| -FMC32-105 | (△) | (△) | 105 | 6.8 | ||||||||
注：（△）表記製品は特殊対応品です。
NOTE : CODE(△)The listed products are made-to-order products.
| แบรนด์สินค้า | SHOWA TOOL |
|---|
