SHO-HAS | ADJUST SCREW (For BT · BBT shank standard MICRON CHUCK) | SHOWA TOOL
สินค้าหมด
SKU
SHO-HAS
QTY:
0

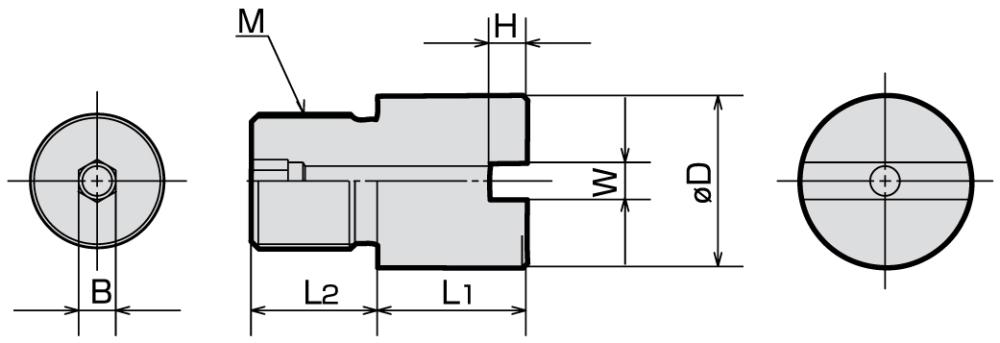

| MODEL | CODE | øD | M | L1 | L2 | W | H | B | MICRON CHUCK |
|---|---|---|---|---|---|---|---|---|---|
| HAS1620-05 | 17602 | 15 | M10×1.0 | 5 | 14 | 5 | 3.5 | 5 | HPC16 HPC20 |
| HAS1620-15 | 17604 | 15 | |||||||
| HAS1620-25 | 17606 | 25 | |||||||
| HAS2532-10 | 17612 | 23 | M18×1.0 | 10 | 17 | 5 | 5 | 5 | HPC25 HPC32 |
| HAS2532-20 | 17614 | 20 | |||||||
| HAS2532-35 | 17616 | 35 | |||||||
| HAS4250-10 | 17622 | 33 | M18×1.0 | 10 | 17 | 5 | 5 | 5 | HPC42 HPC50 |
| HAS4250-20 | 17624 | 20 | |||||||
| HAS4250-35 | 17626 | 35 |
注 : 1.チャック本体には付属しておりません。別途ご注文下さい。2.特殊仕様については受注生産致しますので、刃具形状等をご連絡下さい。
NOTE : 1. The above Adjust Screws are sold separately.
2. Above Adjust Screws can not be used for "H" and "M" series Micron Chucks. Adjust Screws for "H" and "M" series Micron Chucks are manufactured to order.
| แบรนด์สินค้า | SHOWA TOOL |
|---|
