SJ-10K | Measuring Joint - SJ series (50/10/100) | CEDAR
THB 0.00
พร้อมส่ง
SKU
SJ-10K

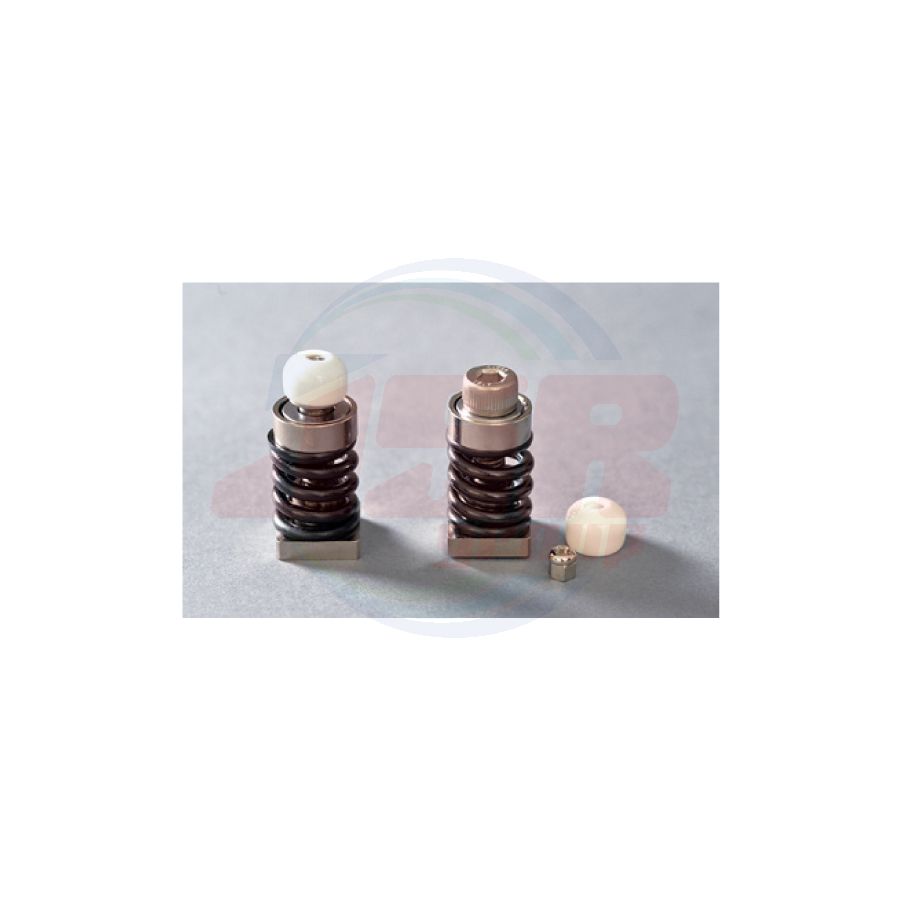

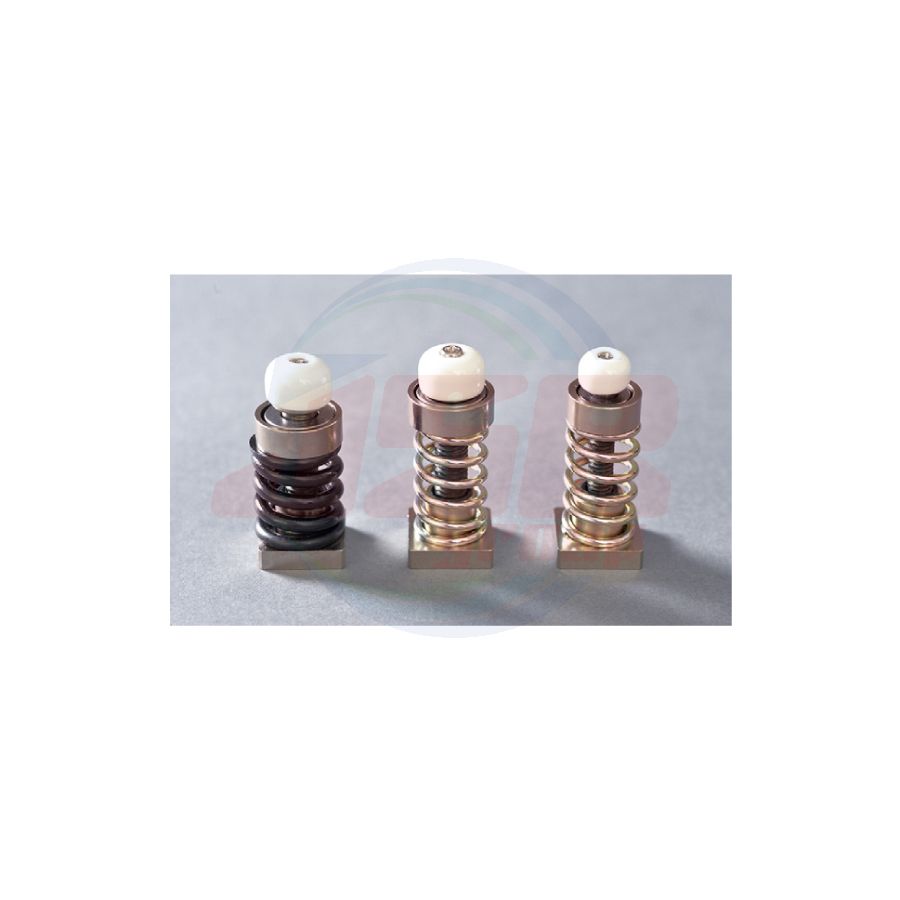

Measuring joint of electric screwdriver
Conventional type coil spring compression method
No decomposition of joint due to excessive return with unique structure!
The SJ Joint is a conventional coil spring compression method and can be used same as conventional management method.
• Enable to mount bits can be installed according to the driver’s model
• By installing hexagonal stat, enable to measure as the bit is attached
※For details of the attached bit shape, please contact us.
| Order No. |
SJ-10 | SJ-10K | SJ-50 | |
| Measurement range / N•m |
1 | 5 | ||
| External dimensions | Bit fitting part | Hexagon opposite side 5 mm | Hexagon opposite side 6 mm | |
| Outer diameter / height | Ø17/45 (uncompressed) | Ø20/50 (uncompressed) | Ø20/42 (uncompressed) | |
| Mounting part | 20 corners x 5(t) | |||
| Attached tester |
CD-10M | CD-100M | ||
| แบรนด์สินค้า | CEDAR |
|---|---|
| Order No. | SJ-10K |
