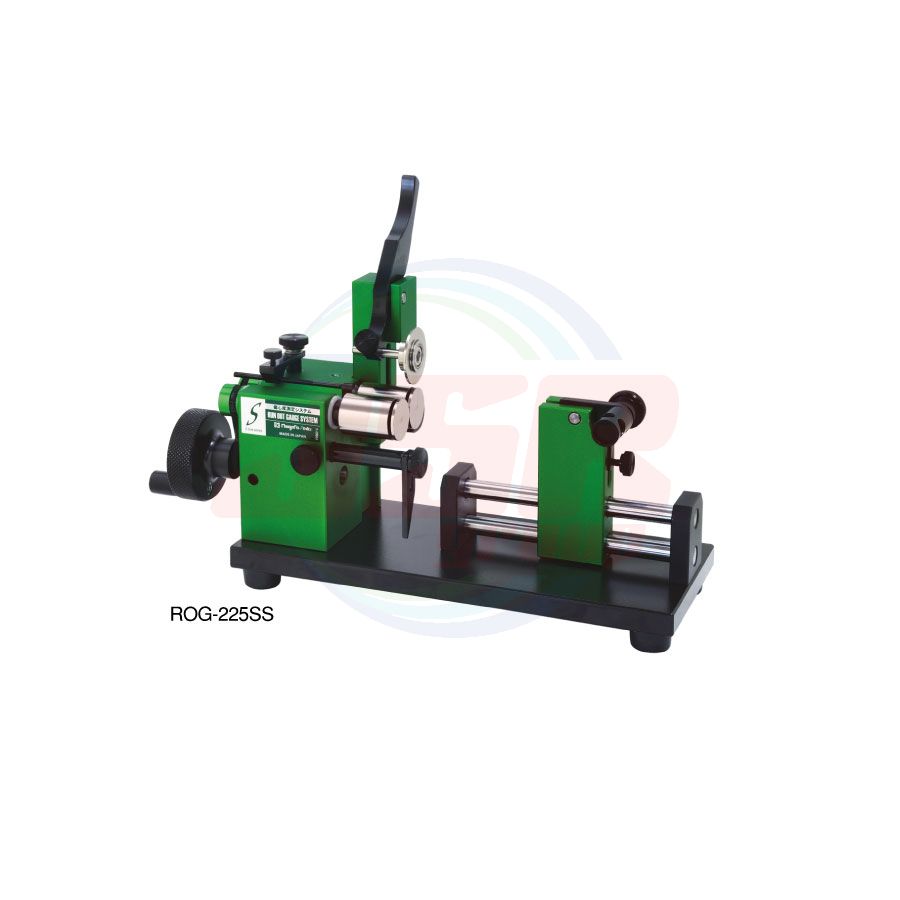

RUN-OUT GAUGE SYSTEM

USE
●Concentricity measurement by mounting your current indicator or electronic micrometer to this system

FEATURES

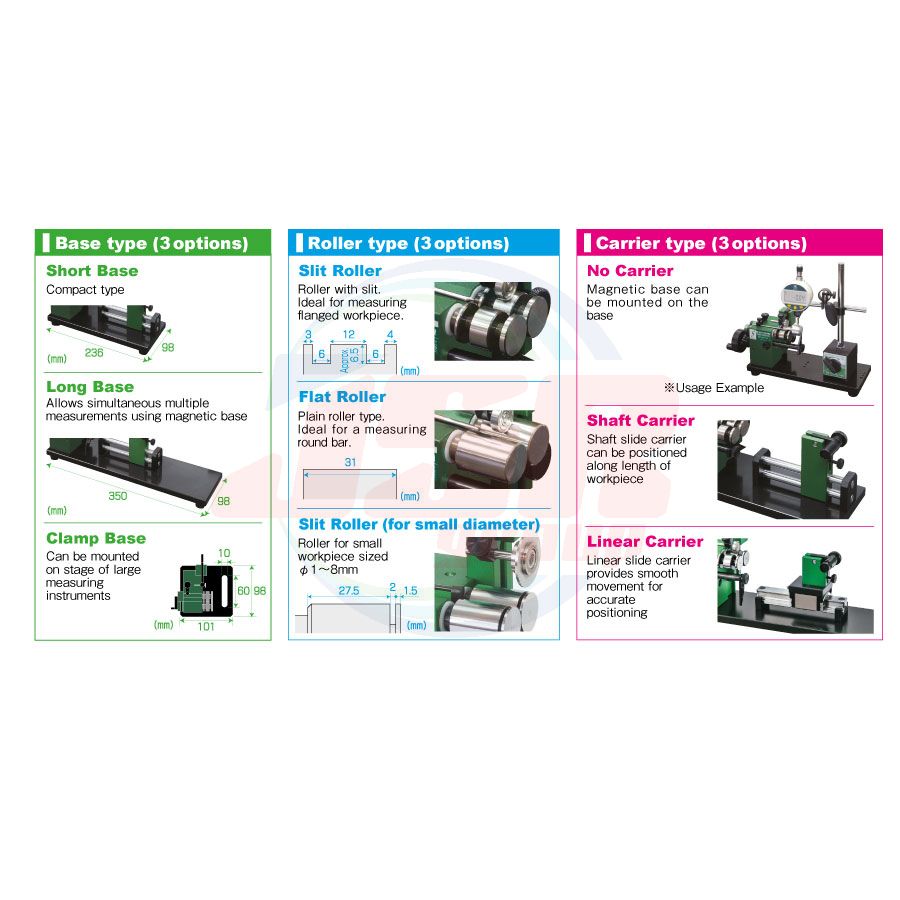

●Three base lengths, three rollers and three carriers, total 21 product configurations available
●Up to 2μm※ accuracy. Highly accurate measurement is possible.
  ※When measuring φ20mm workpiece
●Smooth measurement with grip handle and timing belt & pulley operation system
●Carrier with angle fine adjustment for easy zero-setting of measuring instruments. Free movement in Z direction enables measurement at the optimum position.
●Equipped with work retainer for holding front and rear of workpiece and to enable measurement of axial run-out
●As for the Slit Roller type for small diameter, two types of rollers are included.

MATERIAL
●Base： Carbon steel ●Roller： Tool steel

SPECIFICATIONS
●Provided with aluminum carrying case

MEASUARABLE WORK CONDITIONS
●OD： Please refer to the following chart
●Length： 5～80mm
●Shape： Cylindrical
●Reference portion of the workpiece must have enough length to clamp to roller
  ※Measurement error increases at with increasing distance from rollers
